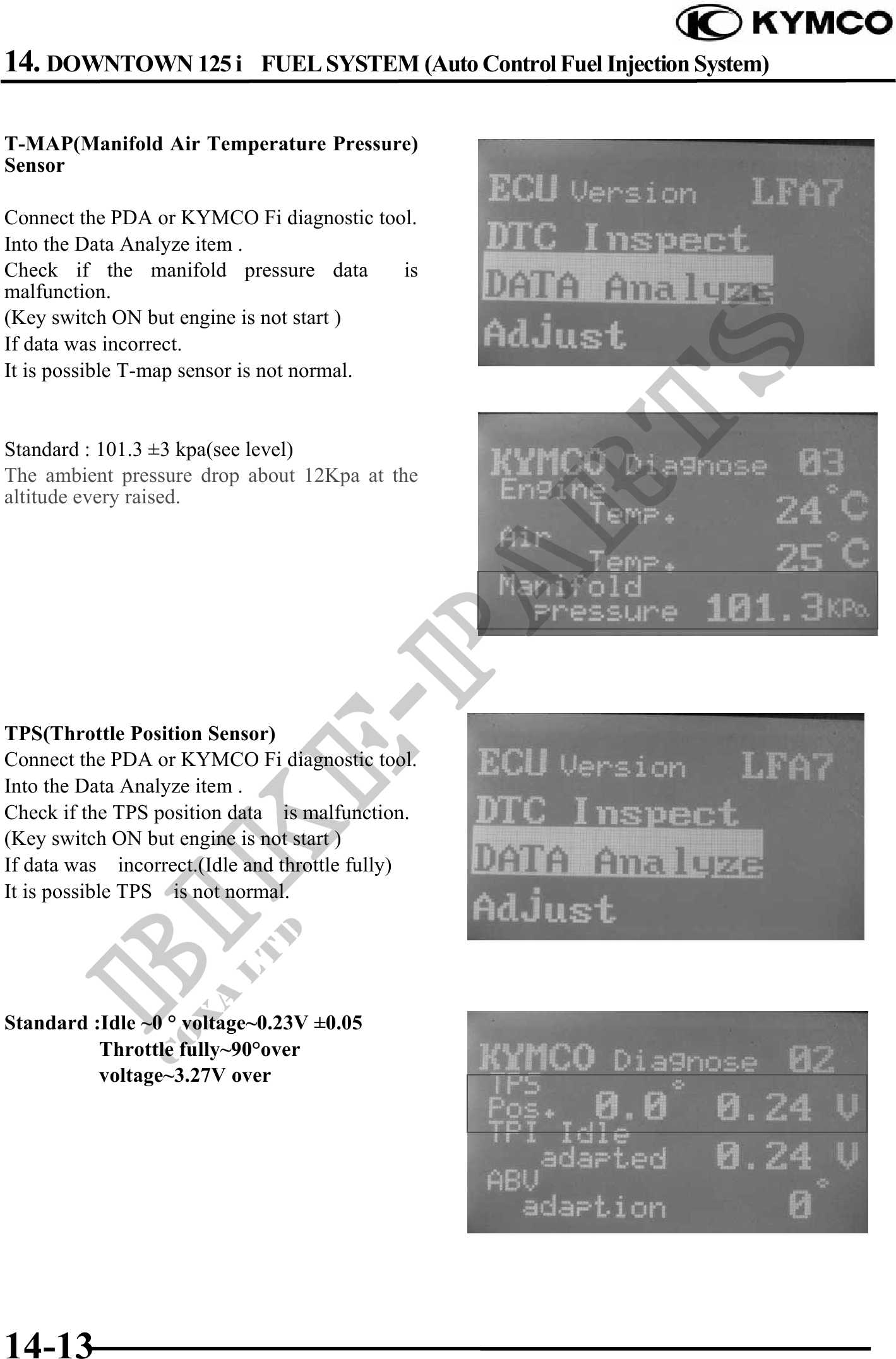

14. DOWNTOWN 125 i FUEL SYSTEM (Auto Control Fuel Injection System)
T-MAP(Manifold Air Temperature Pressure)
Sensor
Connect the PDA or KYMCO Fi diagnostic tool.
Into the Data Analyze item .
Check if the manifold pressure data is
malfunction.
(Key switch ON but engine is not start )
If data was incorrect.
It is possible T-map sensor is not normal.
Standard : 101.3 3 kpa(see level)
The ambient pressure drop about 12Kpa at the
altitude every raised.
TPS(Throttle Position Sensor)
Connect the PDA or KYMCO Fi diagnostic tool.
Into the Data Analyze item .
Check if the TPS position data is malfunction.
(Key switch ON but engine is not start )
If data was incorrect.(Idle and throttle fully)
It is possible TPS is not normal.
Standard :Idle ~0 ° voltage~0.23V 0.05
Throttle fully~90°over
voltage~3.27V over
14-13
