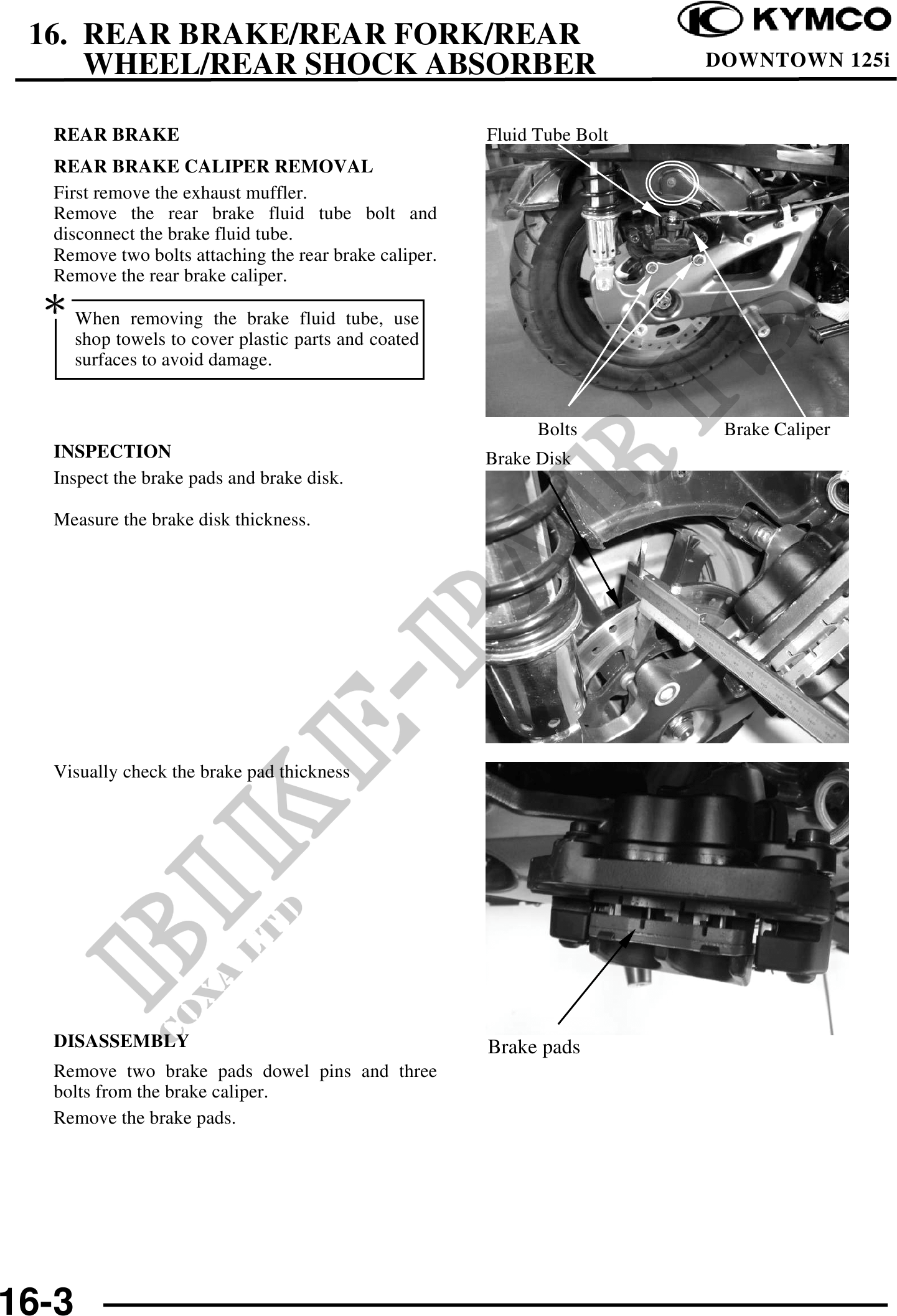

16. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER DOWNTOWN 125i
REAR BRAKE Fluid Tube Bolt
REAR BRAKE CALIPER REMOVAL
First remove the exhaust muffler.
Remove the rear brake fluid tube bolt and
disconnect the brake fluid tube.
Remove two bolts attaching the rear brake caliper.
Remove the rear brake caliper.
When removing the brake fluid tube, use
shop towels to cover plastic parts and coated
surfaces to avoid damage.
Bolts Brake Caliper
INSPECTION Brake Disk
Inspect the brake pads and brake disk.
Measure the brake disk thickness.
Visually check the brake pad thickness
DISASSEMBLY Brake pads
Remove two brake pads dowel pins and three
bolts from the brake caliper.
Remove the brake pads.
16-3
