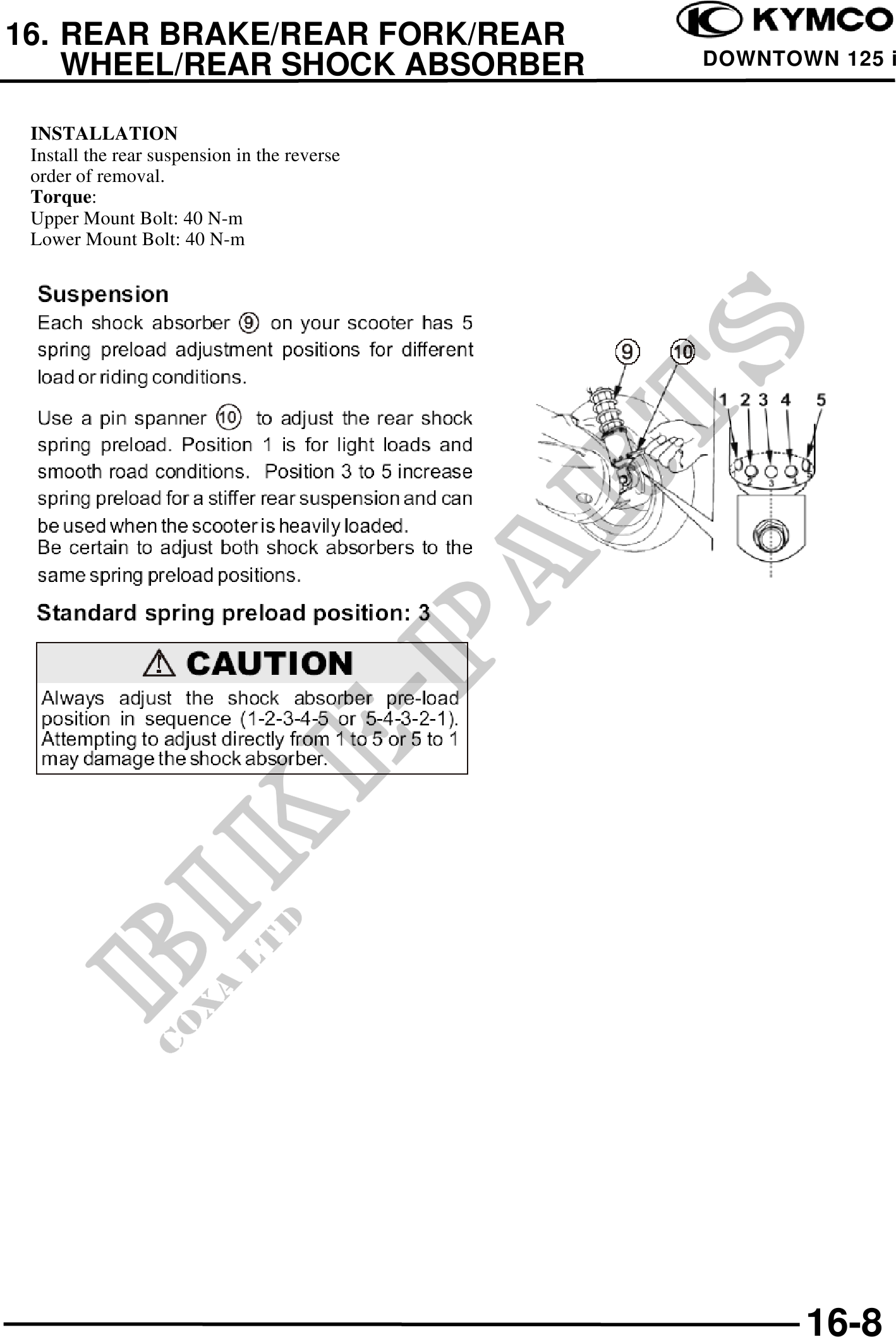

          16. REAR BRAKE/REAR FORK/REAR
    WHEEL/REAR SHOCK ABSORBER                 DOWNTOWN 125 i


 INSTALLATION
 Install the rear suspension in the reverse
 order of removal.
 Torque:
 Upper Mount Bolt: 40 N-m
 Lower Mount Bolt: 40 N-m




                                                     16-8
