          14. DOWNTOWN 125 i           FUEL SYSTEM (Auto Control Fuel Injection System)

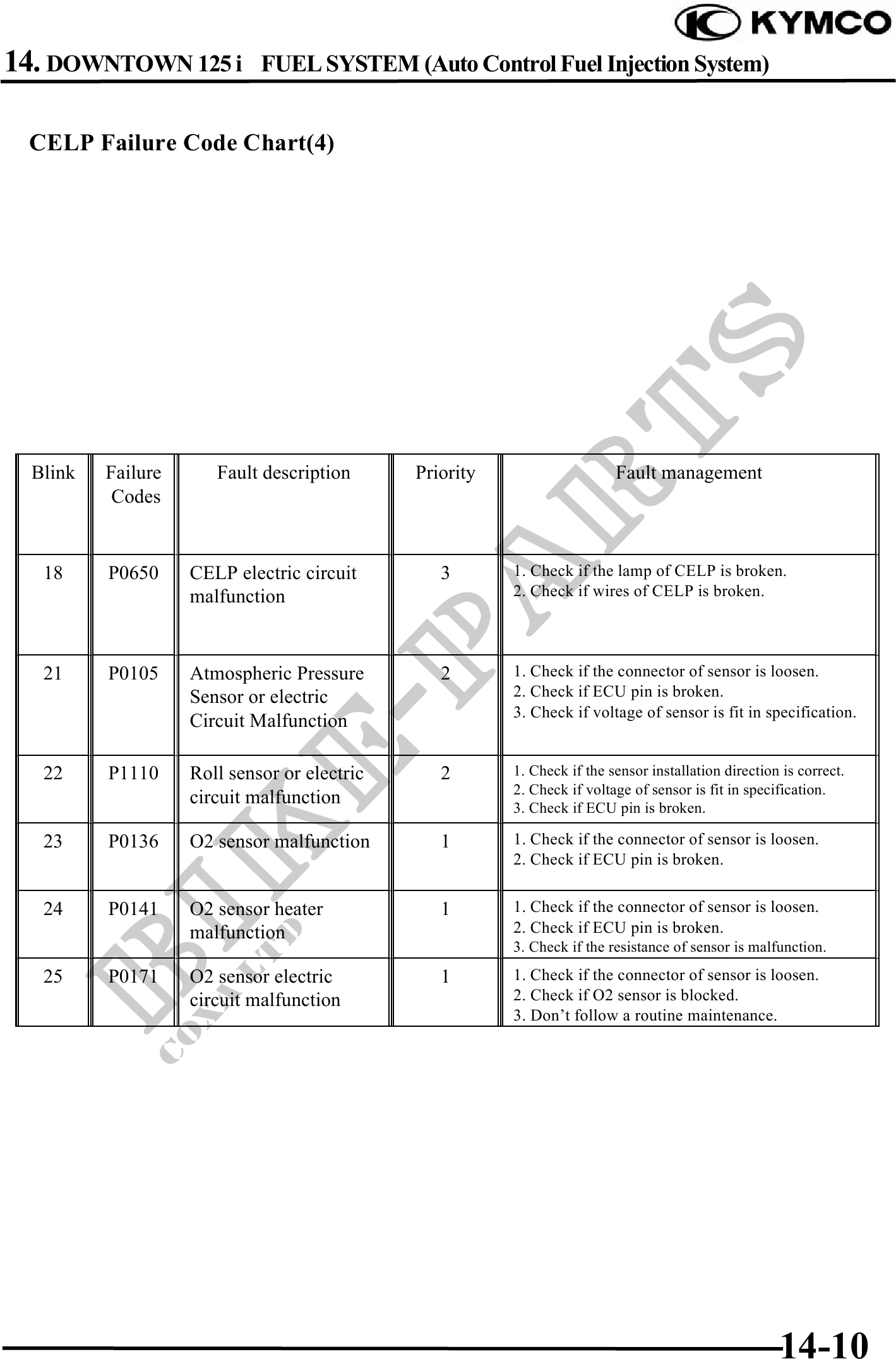

 CELP Failure Code Chart(4)




  Blink   Failure      Fault description      Priority                    Fault management
           Codes


   18     P0650     CELP electric circuit        3       1. Check if the lamp of CELP is broken.
                    malfunction                          2. Check if wires of CELP is broken.



   21     P0105     Atmospheric Pressure         2       1. Check if the connector of sensor is loosen.
                    Sensor or electric                   2. Check if ECU pin is broken.
                                                         3. Check if voltage of sensor is fit in specification.
                    Circuit Malfunction

   22     P1110     Roll sensor or electric      2       1. Check if the sensor installation direction is correct.
                                                         2. Check if voltage of sensor is fit in specification.
                    circuit malfunction                  3. Check if ECU pin is broken.

   23     P0136     O2 sensor malfunction        1       1. Check if the connector of sensor is loosen.
                                                         2. Check if ECU pin is broken.

   24     P0141     O2 sensor heater             1       1. Check if the connector of sensor is loosen.
                    malfunction                          2. Check if ECU pin is broken.
                                                         3. Check if the resistance of sensor is malfunction.
   25     P0171     O2 sensor electric           1       1. Check if the connector of sensor is loosen.
                    circuit malfunction                  2. Check if O2 sensor is blocked.
                                                         3. Don't follow a routine maintenance.




                                                                                                      14-10
