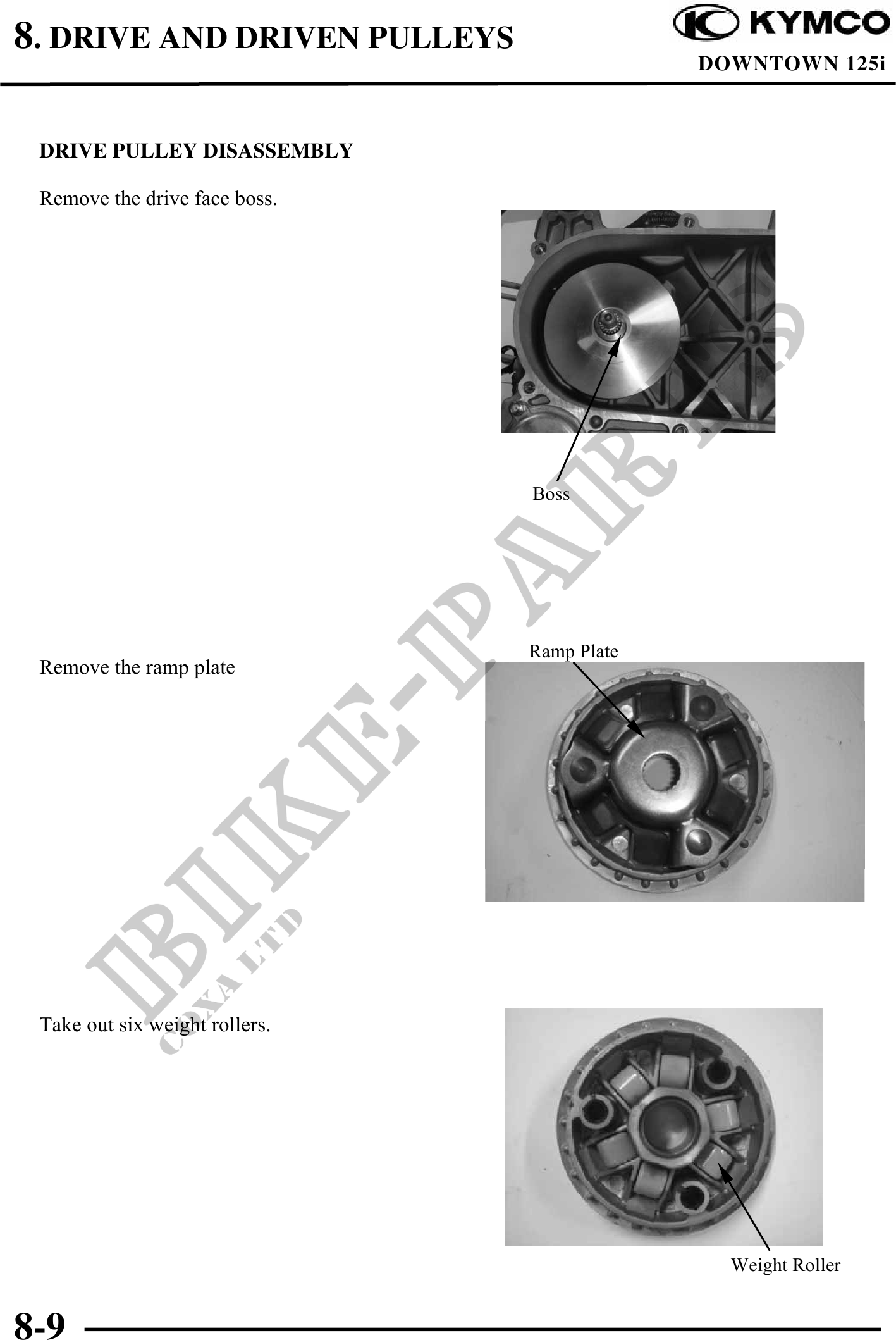

          8. DRIVE AND DRIVEN PULLEYS
                                             DOWNTOWN 125i



 DRIVE PULLEY DISASSEMBLY

 Remove the drive face boss.




                                Boss




                                Ramp Plate
 Remove the ramp plate




 Take out six weight rollers.




                                               Weight Roller
