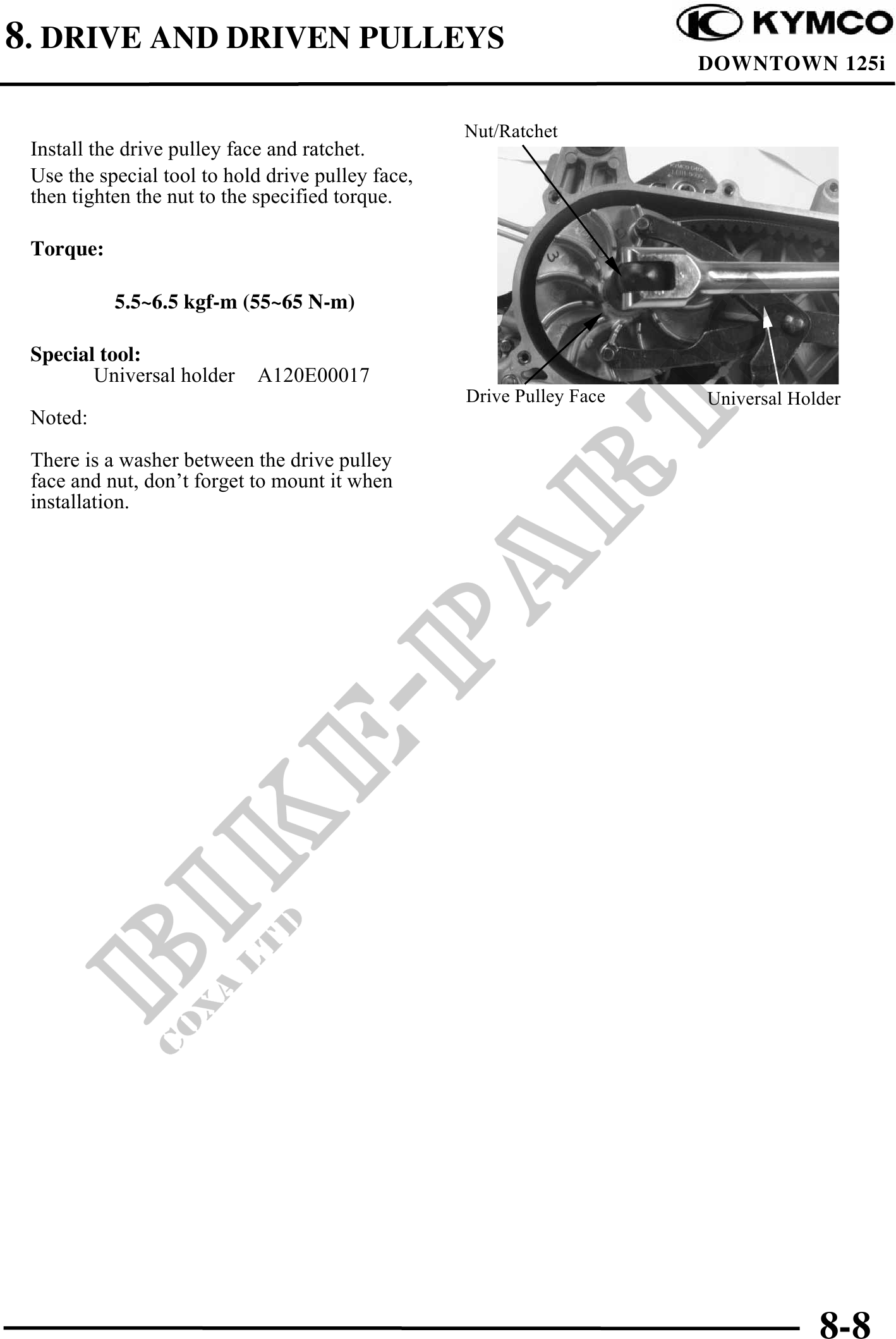

8. DRIVE AND DRIVEN PULLEYS
DOWNTOWN 125i
Nut/Ratchet
Install the drive pulley face and ratchet.
Use the special tool to hold drive pulley face,
then tighten the nut to the specified torque.
Torque:
DINK 200i: 5.8 kgf-m (58 N-m, 42 lbf-ft)
5.5~6.5 kgf-m (55~65 N-m)
Special tool:
Universal holder A120E00017
Drive Pulley Face Universal Holder
Noted:
There is a washer between the drive pulley
face and nut, don't forget to mount it when
installation.
8-8
