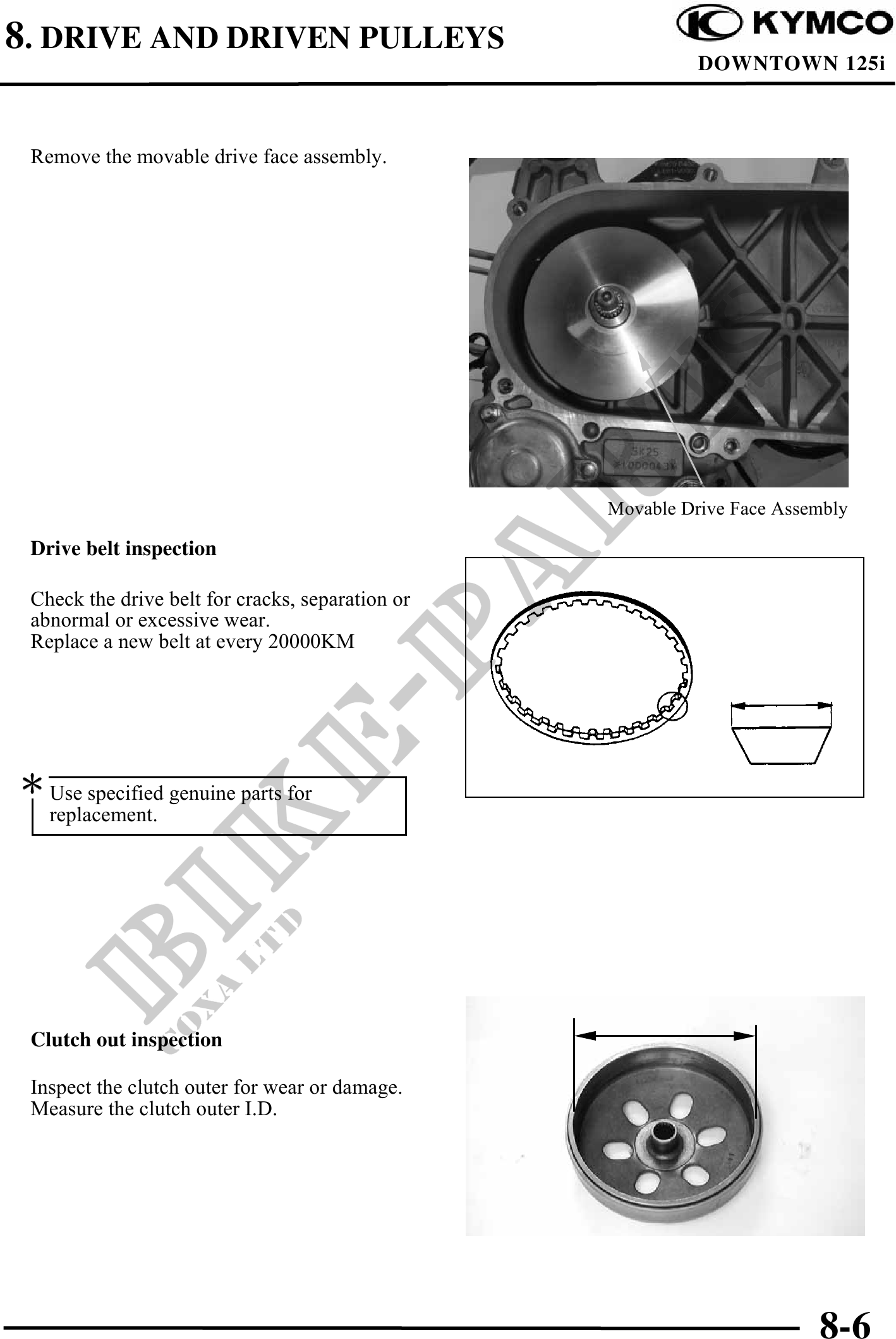

          8. DRIVE AND DRIVEN PULLEYS
                                                            DOWNTOWN 125i



 Remove the movable drive face assembly.




                                                  Movable Drive Face Assembly

 Drive belt inspection

 Check the drive belt for cracks, separation or
 abnormal or excessive wear.
 Replace a new belt at every 20000KM




 Use specified genuine parts for
   replacement.




 Clutch out inspection

 Inspect the clutch outer for wear or damage.
 Measure the clutch outer I.D.
 Service Limit: 130.5 mm (5.22 in)




                                                                         8-6
