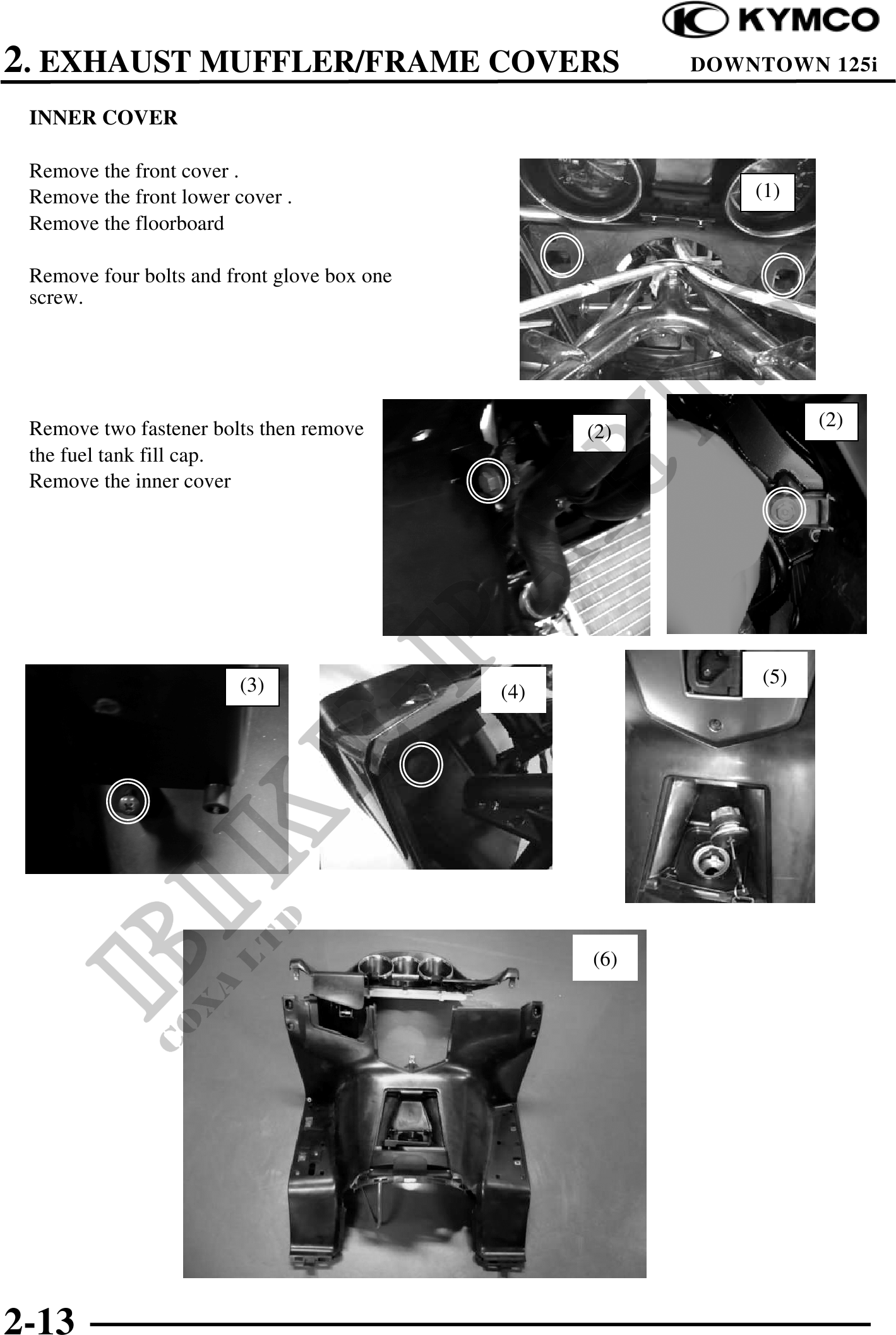

2. EXHAUST MUFFLER/FRAME COVERS DOWNTOWN 125i
INNER COVER
Remove the front cover .
Remove the front lower cover . (1)
Remove the floorboard
Remove four bolts and front glove box one
screw.
Remove two fastener bolts then remove (2)
(2)
the fuel tank fill cap.
Remove the inner cover
(3) (5)
(4)
(6)
2-13
