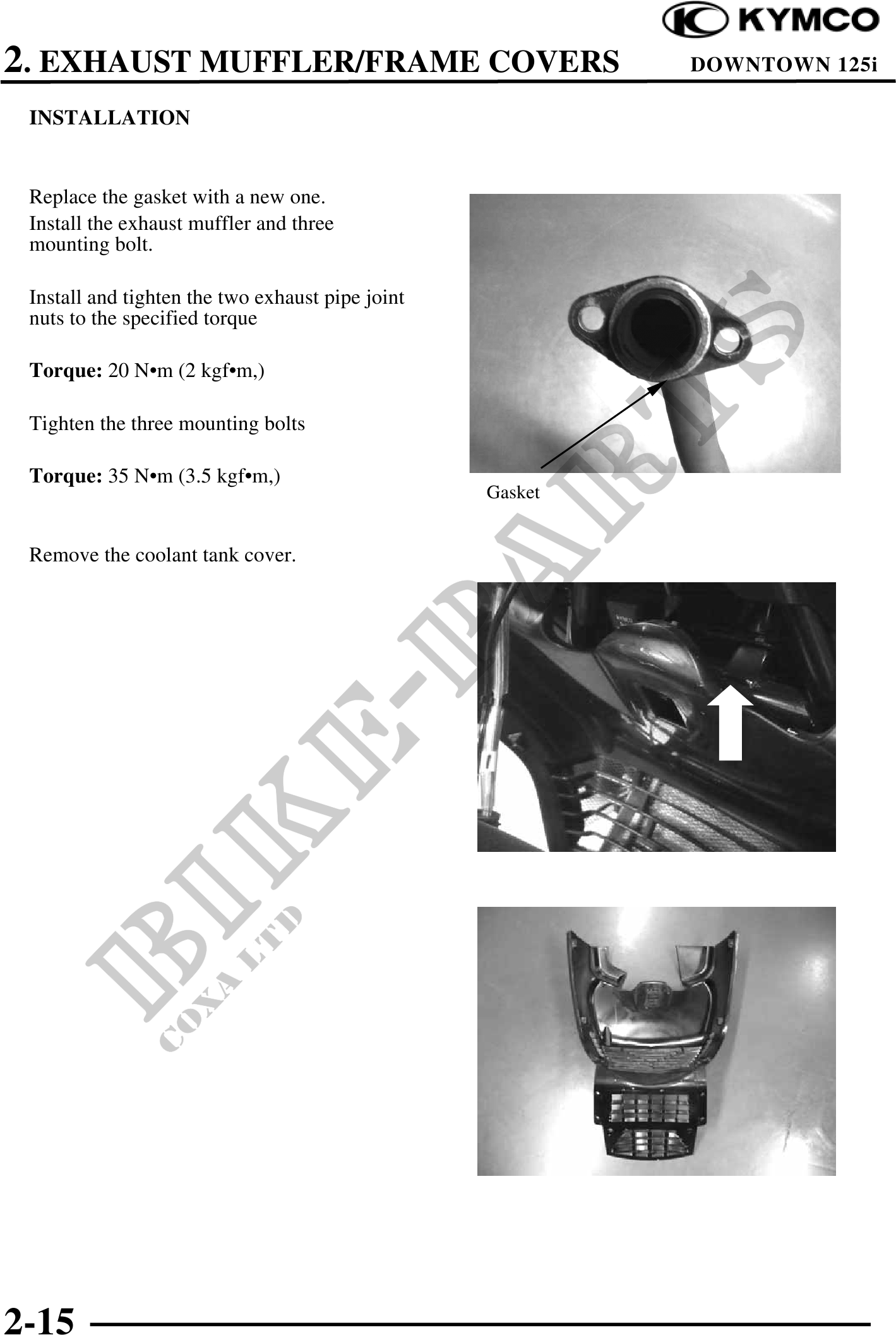

          2. EXHAUST MUFFLER/FRAME COVERS                            DOWNTOWN 125i

 INSTALLATION


 Replace the gasket with a new one.
 Install the exhaust muffler and three
 mounting bolt.

 Install and tighten the two exhaust pipe joint
 nuts to the specified torque

 Torque: 20 N·m (2 kgf·m,)

 Tighten the three mounting bolts

 Torque: 35 N·m (3.5 kgf·m,)
                                                  Gasket


 Remove the coolant tank cover.




2-15
