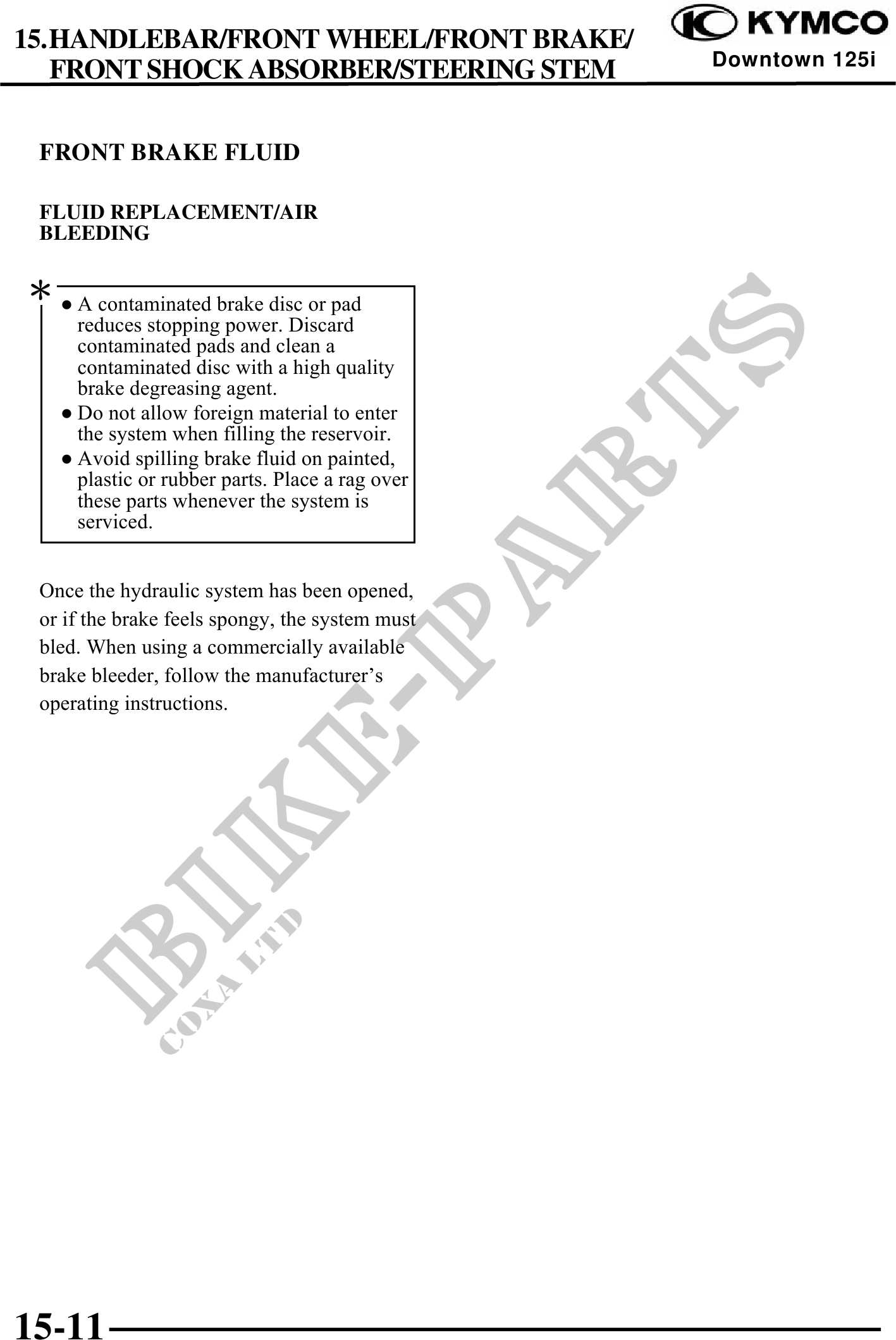

          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                 Downtown 125i
   FRONT SHOCK ABSORBER/STEERING STEM

 FRONT BRAKE FLUID

 FLUID REPLACEMENT/AIR
 BLEEDING

  A contaminated brake disc or pad
    reduces stopping power. Discard
    contaminated pads and clean a
    contaminated disc with a high quality
    brake degreasing agent.
    Do not allow foreign material to enter
    the system when filling the reservoir.
    Avoid spilling brake fluid on painted,
    plastic or rubber parts. Place a rag over
    these parts whenever the system is
    serviced.


 Once the hydraulic system has been opened,
 or if the brake feels spongy, the system must
 bled. When using a commercially available
 brake bleeder, follow the manufacturer's
 operating instructions.




15-11
