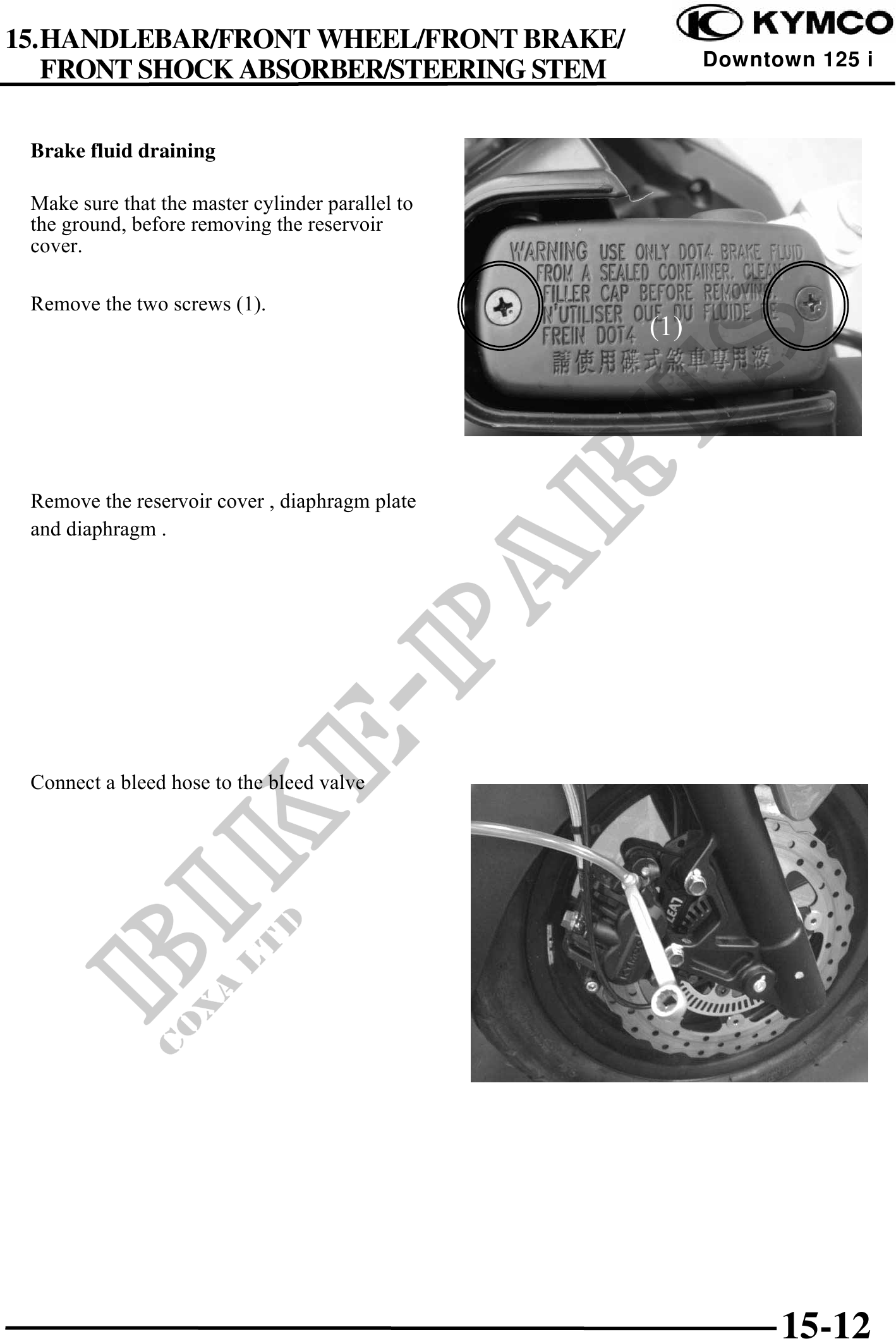

          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                        Downtown 125 i
   FRONT SHOCK ABSORBER/STEERING STEM

 Brake fluid draining

 Make sure that the master cylinder parallel to
 the ground, before removing the reservoir
 cover.

 Remove the two screws (1).
                                                  (1)




 Remove the reservoir cover , diaphragm plate
 and diaphragm .




 Connect a bleed hose to the bleed valve




                                                              15-12
