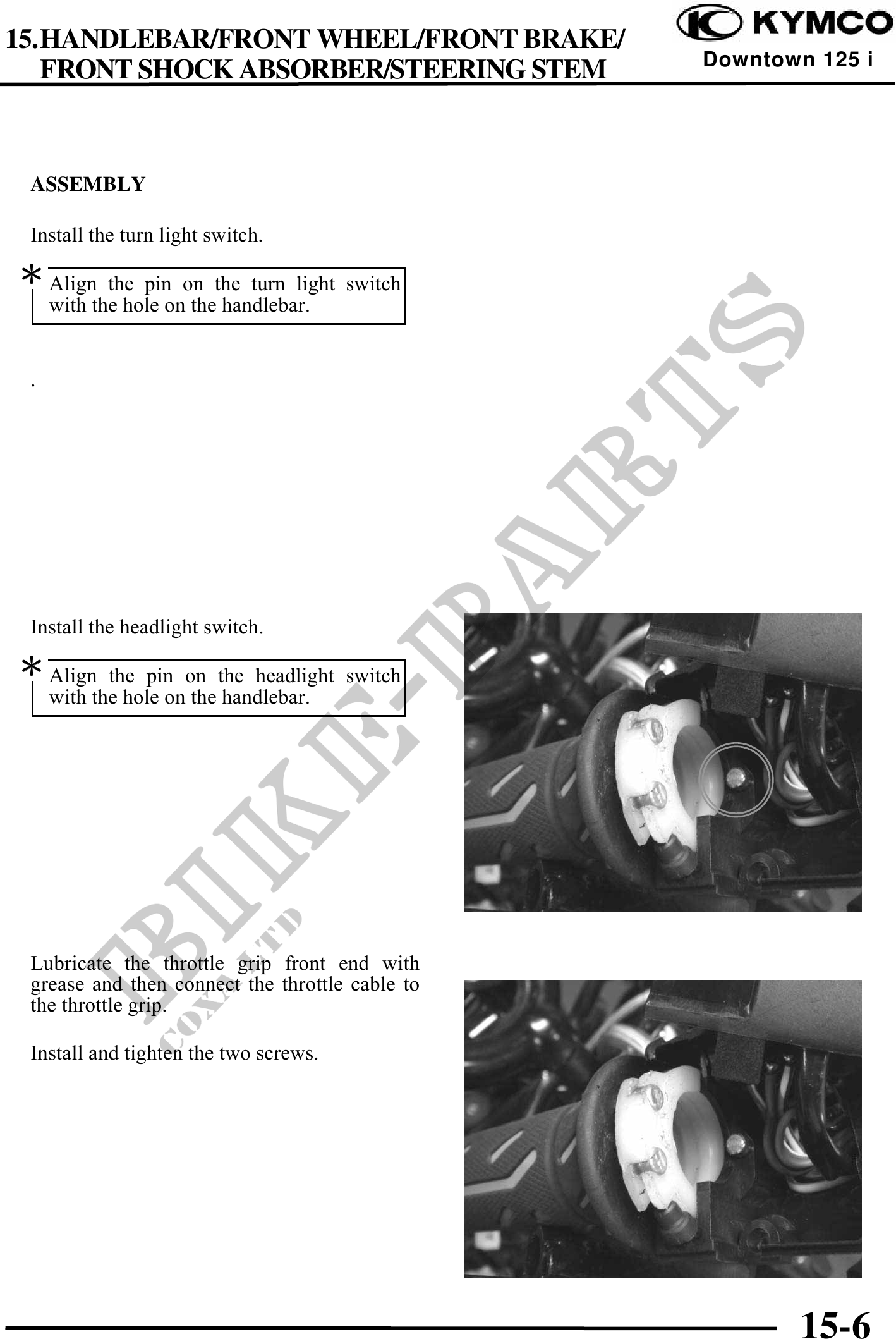

          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                 Downtown 125 i
   FRONT SHOCK ABSORBER/STEERING STEM



 ASSEMBLY

 Install the turn light switch.
 Align      the pin on the turn light switch
     with the hole on the handlebar.


 .




 Install the headlight switch.
 Align      the pin on the headlight switch
     with the hole on the handlebar.




 Lubricate the throttle grip front end with
 grease and then connect the throttle cable to
 the throttle grip.

 Install and tighten the two screws.




                                                         15-6
