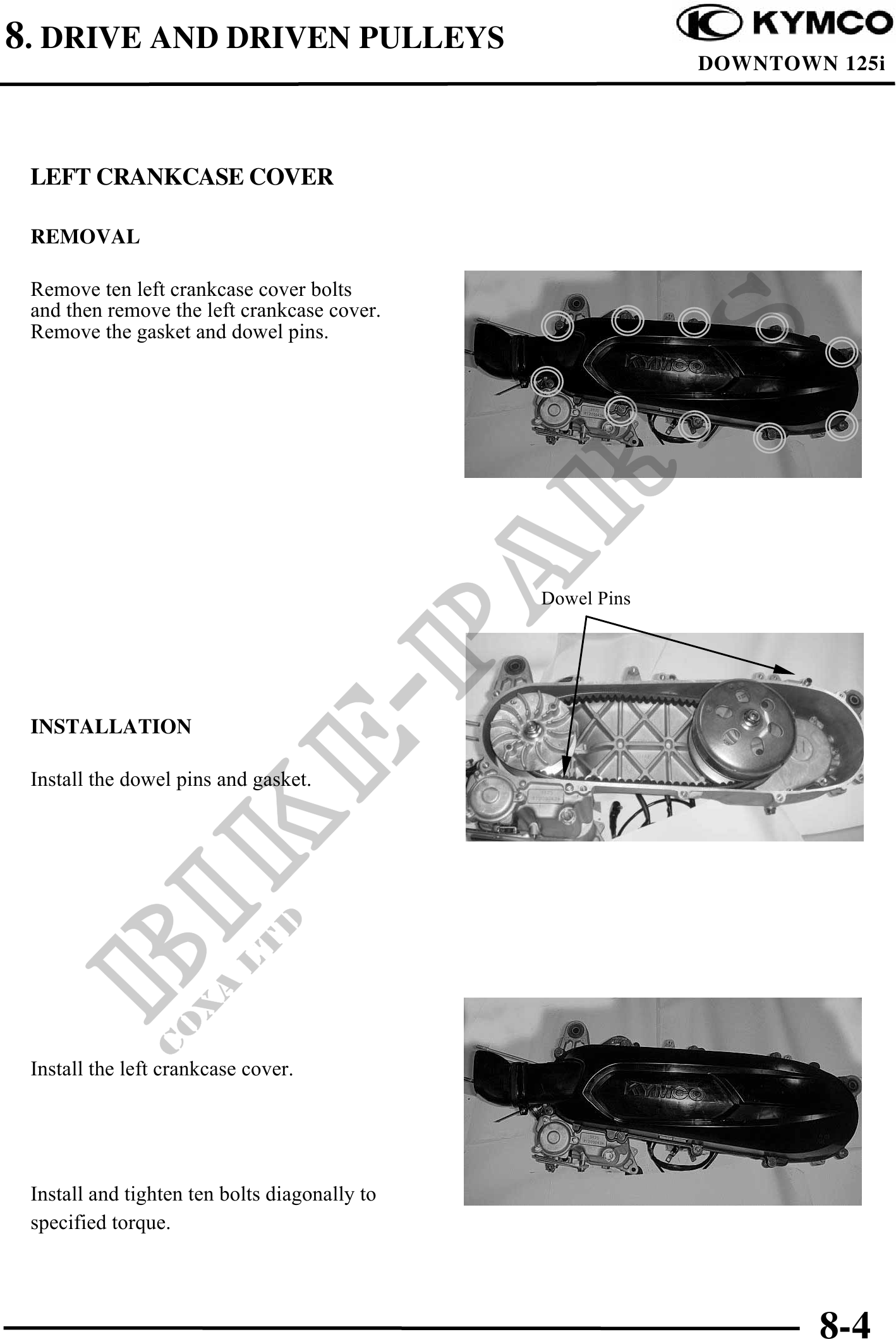

          8. DRIVE AND DRIVEN PULLEYS
                                                            DOWNTOWN 125i




 LEFT CRANKCASE COVER

 REMOVAL

 Remove ten left crankcase cover bolts
 and then remove the left crankcase cover.
 Remove the gasket and dowel pins.




                                               Dowel Pins




 INSTALLATION

 Install the dowel pins and gasket.




 Install the left crankcase cover.




 Install and tighten ten bolts diagonally to
 specified torque.




                                                                    8-4
