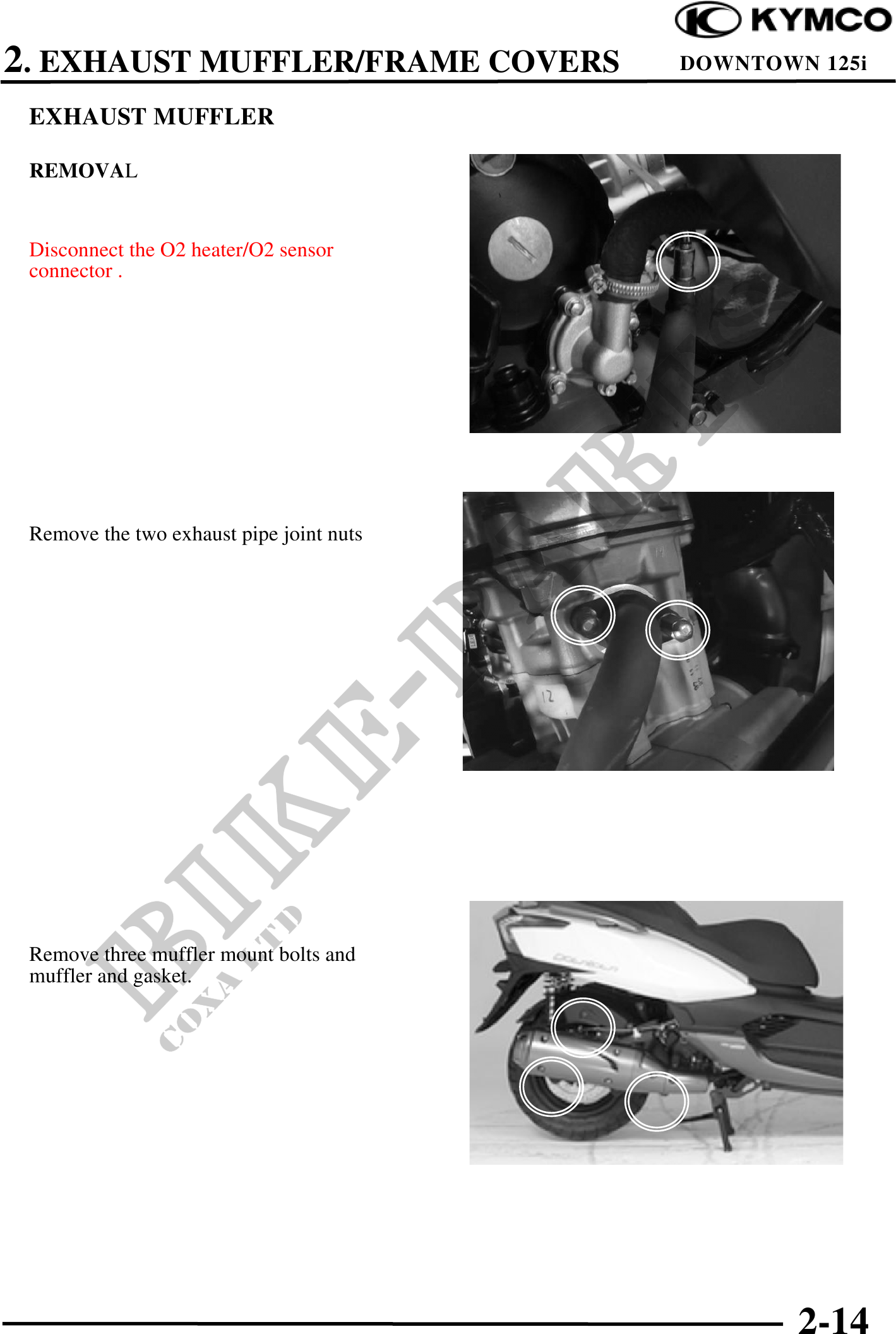

          2. EXHAUST MUFFLER/FRAME COVERS           DOWNTOWN 125i

 EXHAUST MUFFLER

 REMOVAL


 Disconnect the O2 heater/O2 sensor
 connector .




 Remove the two exhaust pipe joint nuts




 Remove three muffler mount bolts and
 muffler and gasket.




                                                  2-14
