dinkstreet 125 Manuel atelier : Page 36

          3. INSPECTION/ADJUSTMENT                                                       DOWNTOWN 125i

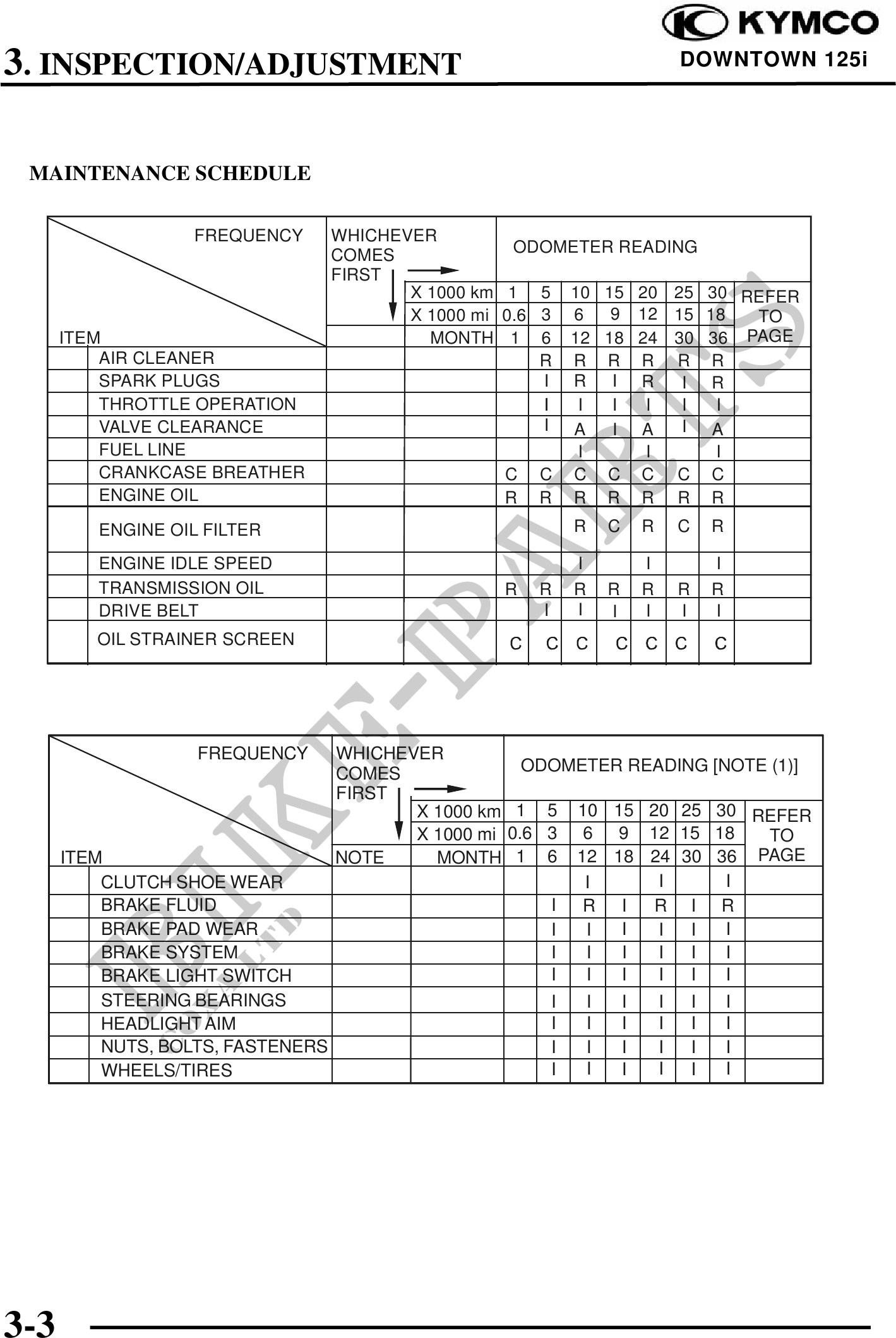

 MAINTENANCE SCHEDULE

                   FREQUENCY       WHICHEVER
                                   COMES             ODOMETER READING
                                   FIRST
                                          X 1000 km 1 5 10 15 20 25                    30 REFER
                                          X 1000 mi 0.6 3 6  9 12 15                   18  TO
      ITEM                                  MONTH 1 6 12 18 24 30                      36 PAGE
          AIR CLEANER                                   R R R R R                       R
          SPARK PLUGS                                   I R  I R    I                  R
          THROTTLE OPERATION                            I I  I  I   I                   I
          VALVE CLEARANCE                               I A  I A    I                   A
          FUEL LINE                                       I     I                       I
          CRANKCASE BREATHER                        C C C C C C                         C
          ENGINE OIL                                R R R R R R                         R
         ENGINE OIL FILTER                                 R   C       R       C       R

         ENGINE IDLE SPEED                                 I           I               I
         TRANSMISSION OIL                          R   R   R   R       R       R       R
         DRIVE BELT                                    I   I   I       I       I       I
         OIL STRAINER SCREEN




                   FREQUENCY       WHICHEVER
                                   COMES              ODOMETER READING [NOTE (1)]
                                   FIRST
                                          X 1000 km 1 5 10 15 20 25 30 REFER
                                          X 1000 mi 0.6 3 6 9 12 15 18      TO
      ITEM                         NOTE     MONTH 1 6 12 18 24 30 36 PAGE
          CLUTCH SHOE WEAR                                 I      I      I
          BRAKE FLUID                                   I R I    R I R
          BRAKE PAD WEAR                                I  I  I   I  I   I
          BRAKE SYSTEM                                  I  I  I   I  I   I
          BRAKE LIGHT SWITCH                            I  I  I   I  I   I
          STEERING BEARINGS                            I   I       I       I       I       I
          HEADLIGHT AIM                                I   I       I       I       I       I
          NUTS, BOLTS, FASTENERS                       I   I       I       I       I       I
          WHEELS/TIRES                                 I   I       I       I       I       I




3-3
