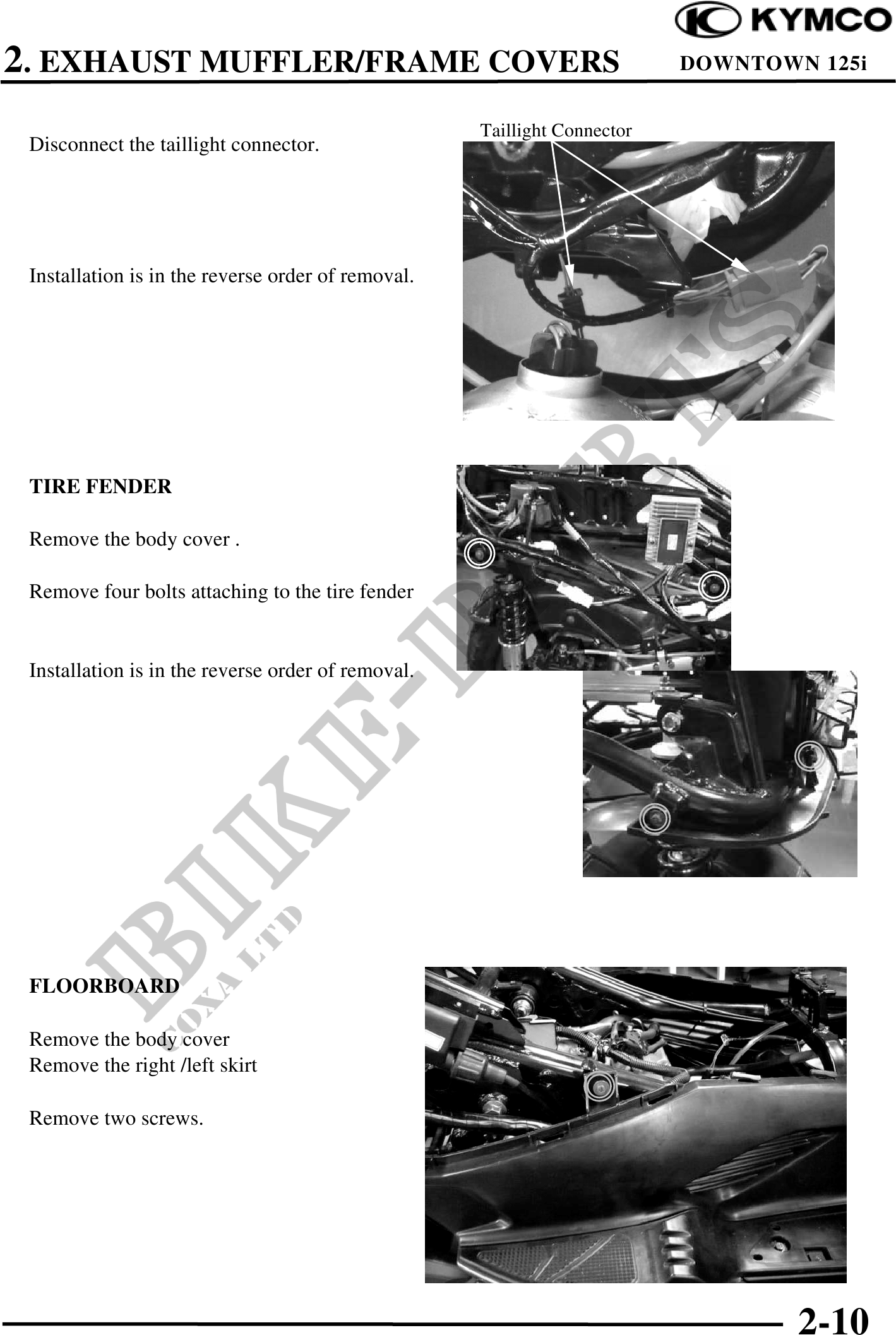

          2. EXHAUST MUFFLER/FRAME COVERS                                           DOWNTOWN 125i


                                                    Taillight Connector
 Disconnect the taillight connector.




 Installation is in the reverse order of removal.




 TIRE FENDER

 Remove the body cover .

 Remove four bolts attaching to the tire fender


 Installation is in the reverse order of removal.




 FLOORBOARD

 Remove the body cover
 Remove the right /left skirt

 Remove two screws.
