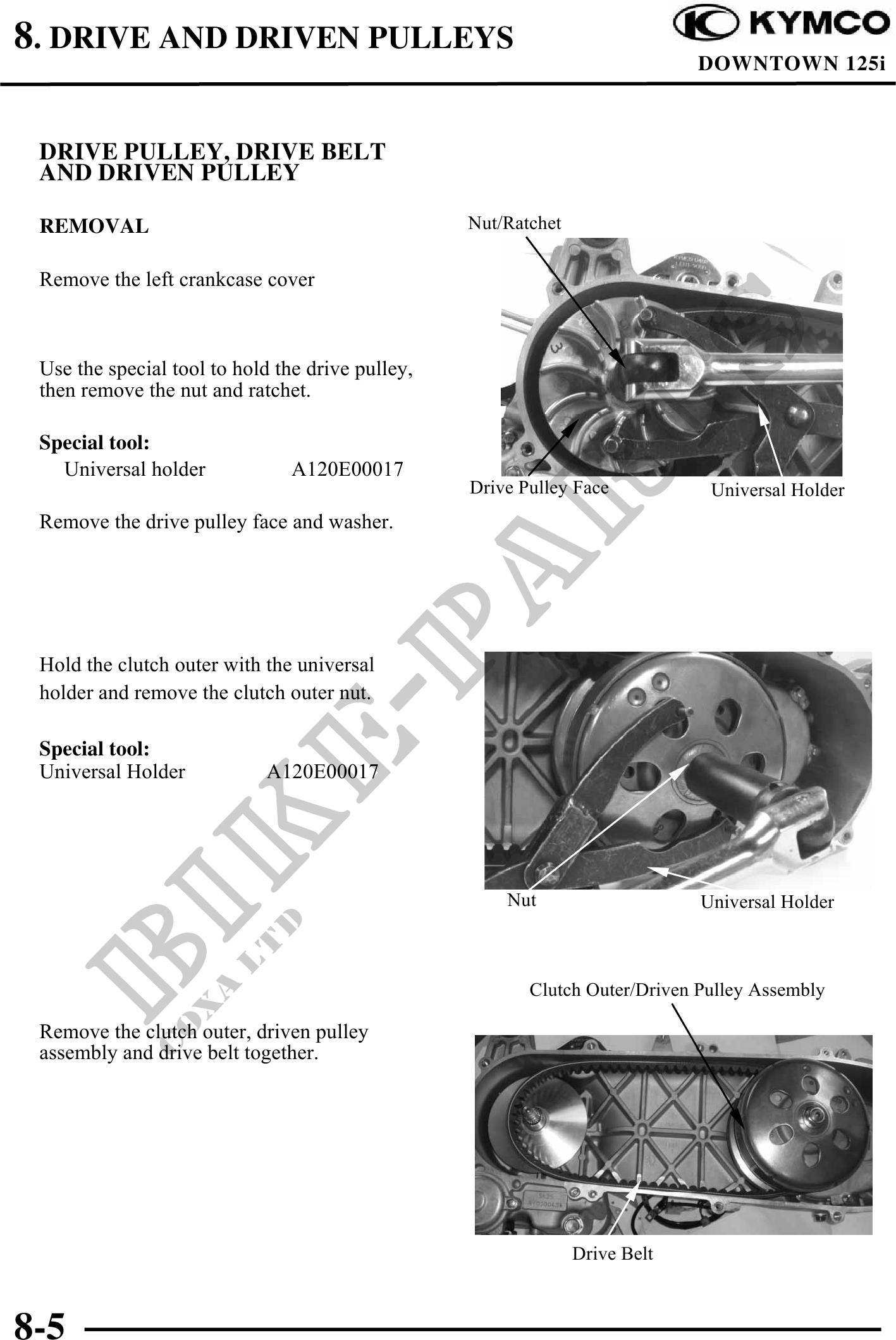

          8. DRIVE AND DRIVEN PULLEYS
                                                                             DOWNTOWN 125i



 DRIVE PULLEY, DRIVE BELT
 AND DRIVEN PULLEY

 REMOVAL                                          Nut/Ratchet

 Remove the left crankcase cover



 Use the special tool to hold the drive pulley,
 then remove the nut and ratchet.

 Special tool:
   Universal holder             A120E00017
                                                  Drive Pulley Face           Universal Holder
 Remove the drive pulley face and washer.




 Hold the clutch outer with the universal
 holder and remove the clutch outer nut.

 Special tool:
 Universal Holder           A120E00017




                                                      Nut                    Universal Holder



                                                         Clutch Outer/Driven Pulley Assembly

 Remove the clutch outer, driven pulley
 assembly and drive belt together.




                                                                Drive Belt



8-5
