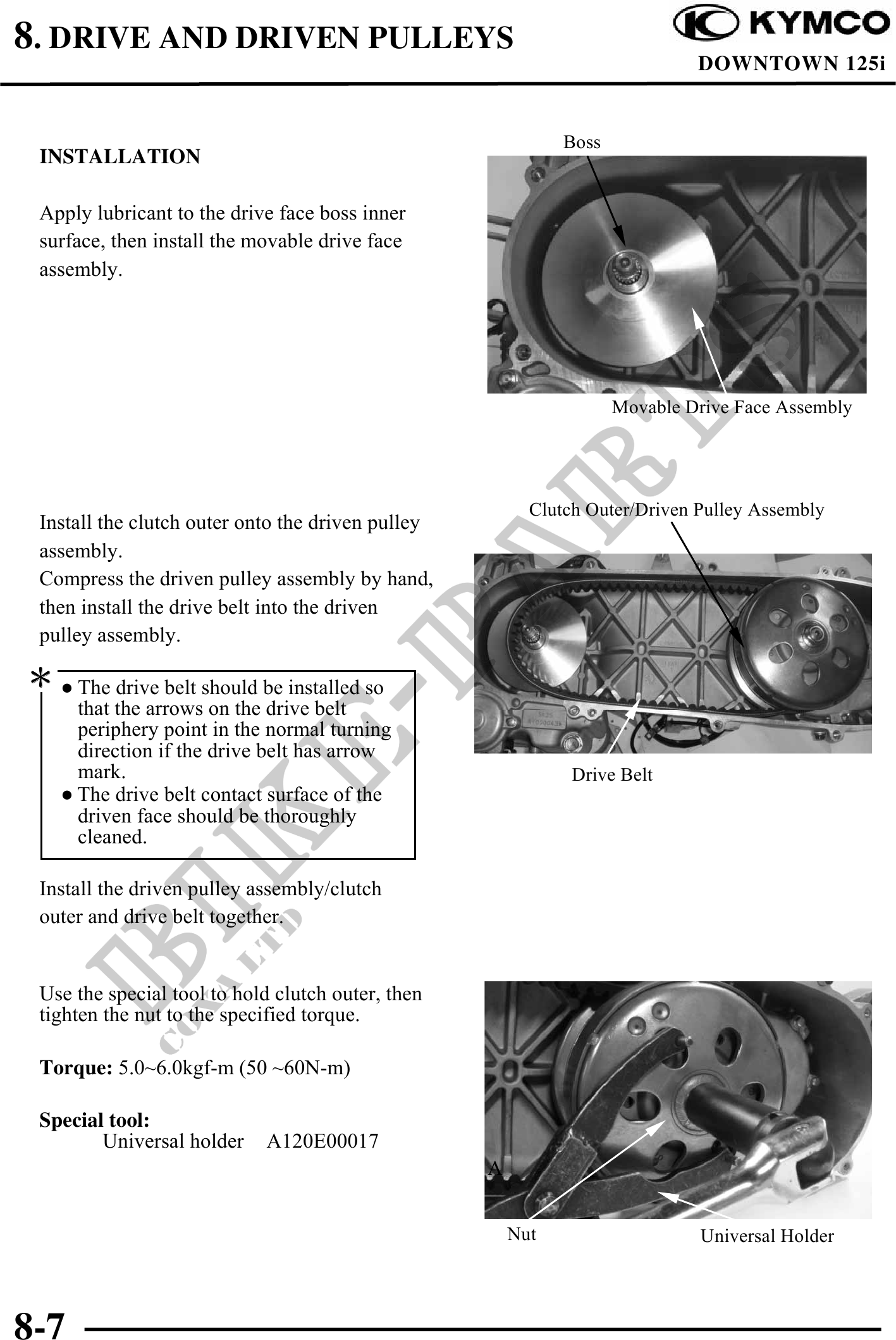

8. DRIVE AND DRIVEN PULLEYS
DOWNTOWN 125i
Boss
INSTALLATION
Apply lubricant to the drive face boss inner
surface, then install the movable drive face
assembly.
Movable Drive Face Assembly
Clutch Outer/Driven Pulley Assembly
Install the clutch outer onto the driven pulley
assembly.
Compress the driven pulley assembly by hand,
then install the drive belt into the driven
pulley assembly.
The drive belt should be installed so
that the arrows on the drive belt
periphery point in the normal turning
direction if the drive belt has arrow
mark. Drive Belt
The drive belt contact surface of the
driven face should be thoroughly
cleaned.
Install the driven pulley assembly/clutch
outer and drive belt together.
Use the special tool to hold clutch outer, then
tighten the nut to the specified torque.
Torque: 5.0~6.0kgf-m (50 ~60N-m)
Special tool:
Universal holder A120E00017
A
Nut Universal Holder
8-7
