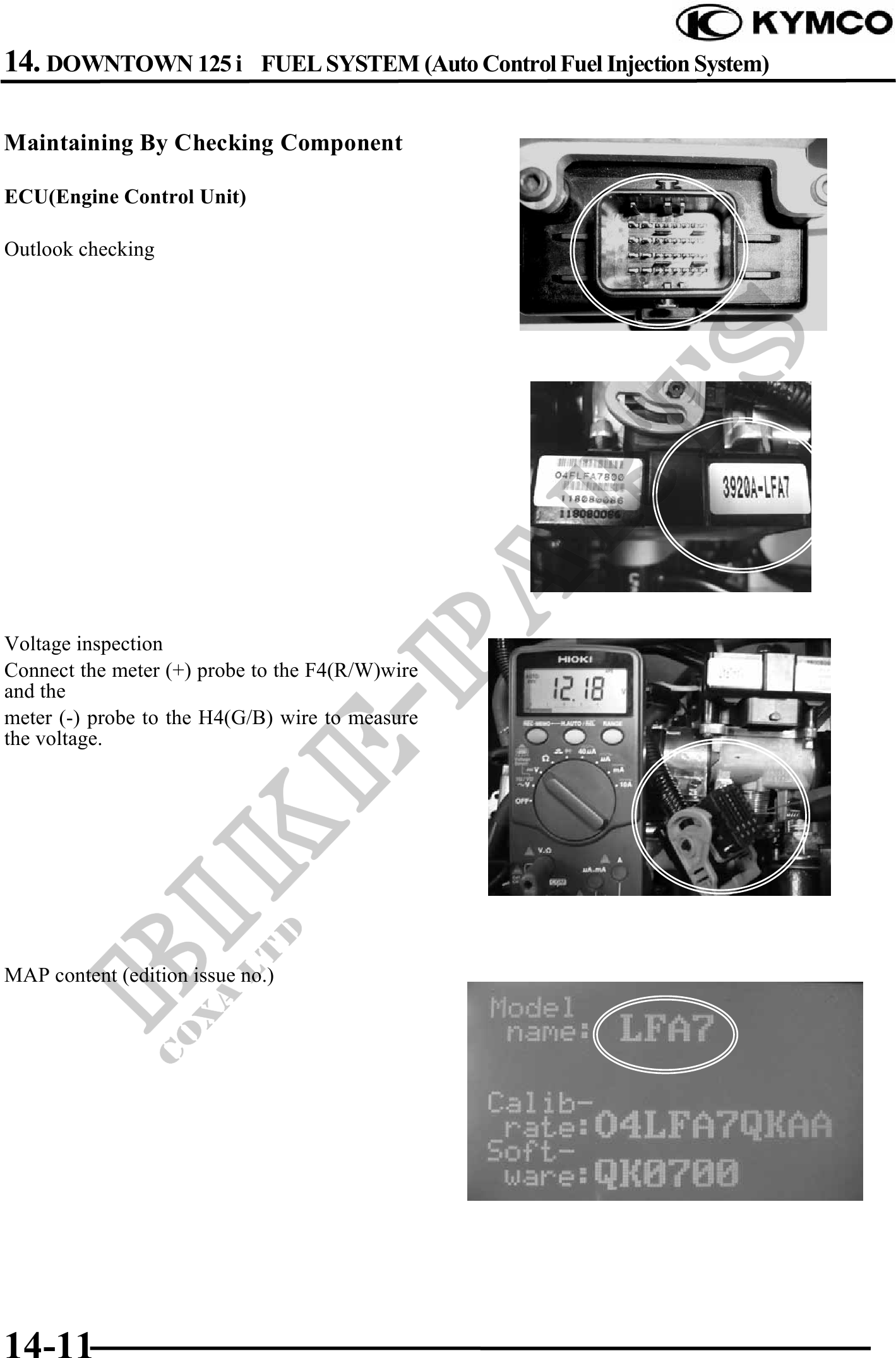

          14. DOWNTOWN 125 i           FUEL SYSTEM (Auto Control Fuel Injection System)


Maintaining By Checking Component

ECU(Engine Control Unit)

Outlook checking




Voltage inspection
Connect the meter (+) probe to the F4(R/W)wire
and the
meter (-) probe to the H4(G/B) wire to measure
the voltage.




MAP content (edition issue no.)




14-11
