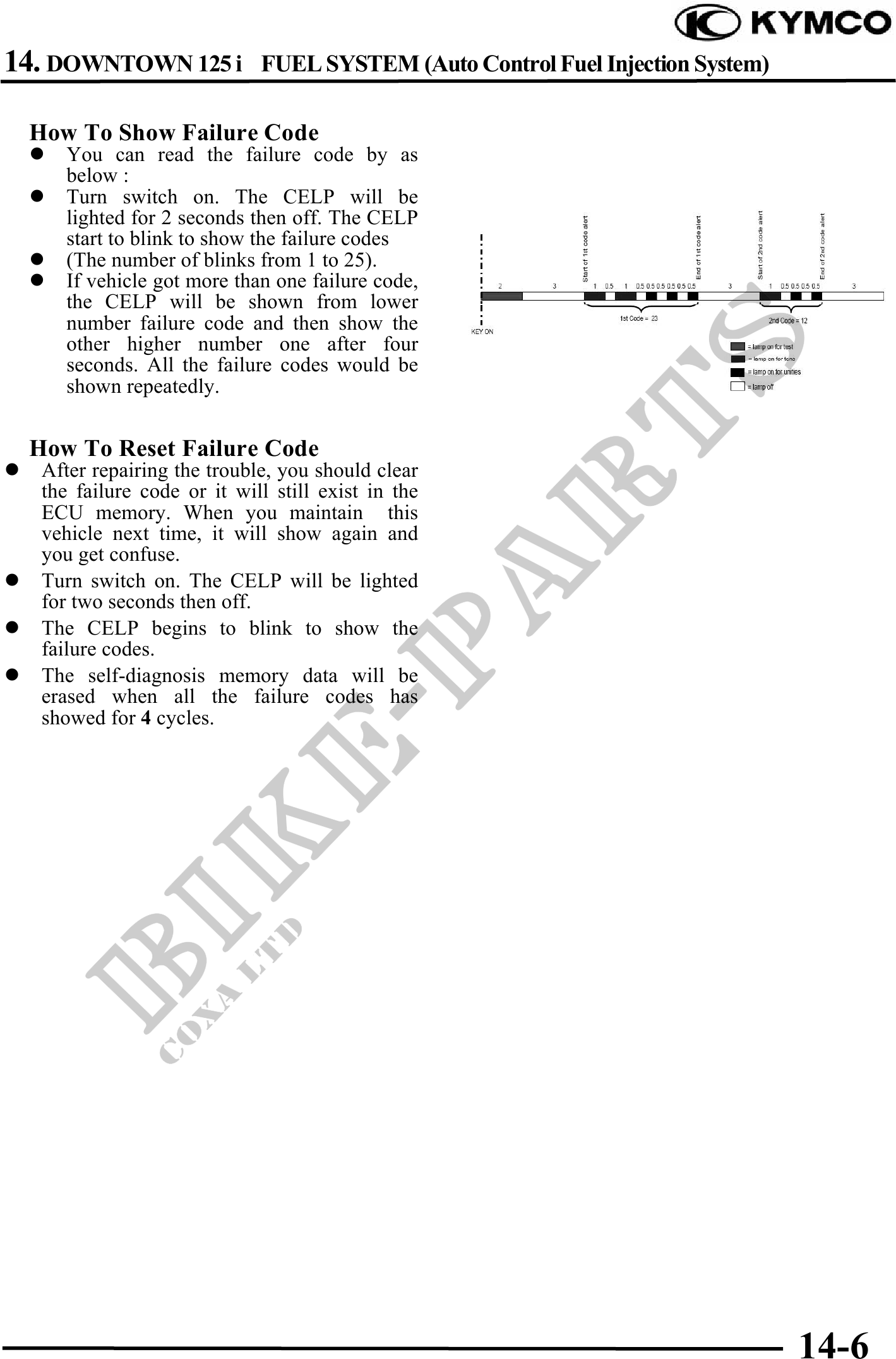

14. DOWNTOWN 125 i FUEL SYSTEM (Auto Control Fuel Injection System)
How To Show Failure Code
You can read the failure code by as
below :
Turn switch on. The CELP will be
lighted for 2 seconds then off. The CELP
start to blink to show the failure codes
(The number of blinks from 1 to 25).
If vehicle got more than one failure code,
the CELP will be shown from lower
number failure code and then show the
other higher number one after four
seconds. All the failure codes would be
shown repeatedly.
How To Reset Failure Code
After repairing the trouble, you should clear
the failure code or it will still exist in the
ECU memory. When you maintain this
vehicle next time, it will show again and
you get confuse.
Turn switch on. The CELP will be lighted
for two seconds then off.
The CELP begins to blink to show the
failure codes.
The self-diagnosis memory data will be
erased when all the failure codes has
showed for 4 cycles.
14-6
