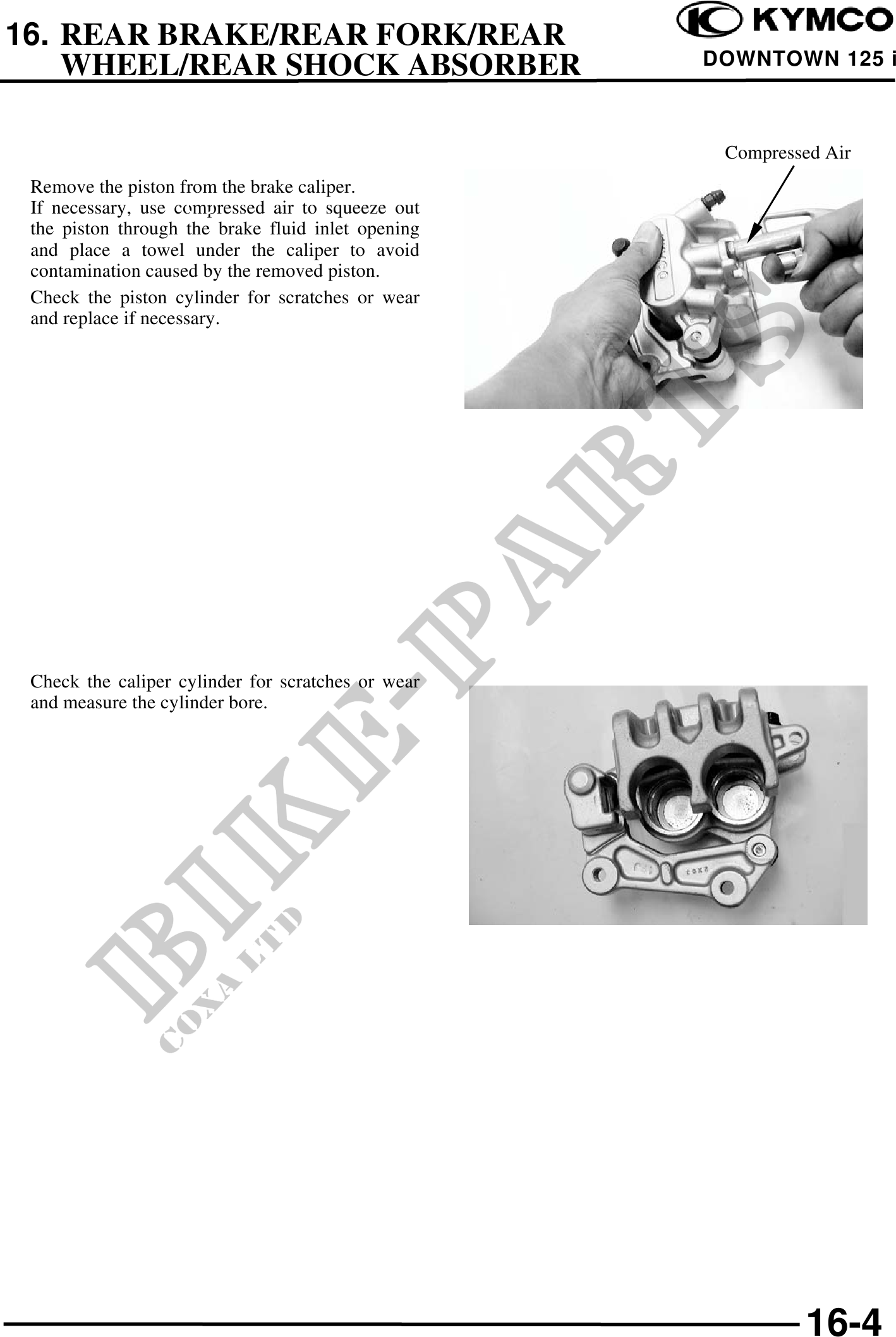

          16. REAR BRAKE/REAR FORK/REAR
    WHEEL/REAR SHOCK ABSORBER                       DOWNTOWN 125 i



15                                                   Compressed Air
 Remove the piston from the brake caliper.
 If necessary, use compressed air to squeeze out
 the piston through the brake fluid inlet opening
 and place a towel under the caliper to avoid
 contamination caused by the removed piston.
 Check the piston cylinder for scratches or wear
 and replace if necessary.




 Check the caliper cylinder for scratches or wear
 and measure the cylinder bore.




                                                             16-4
