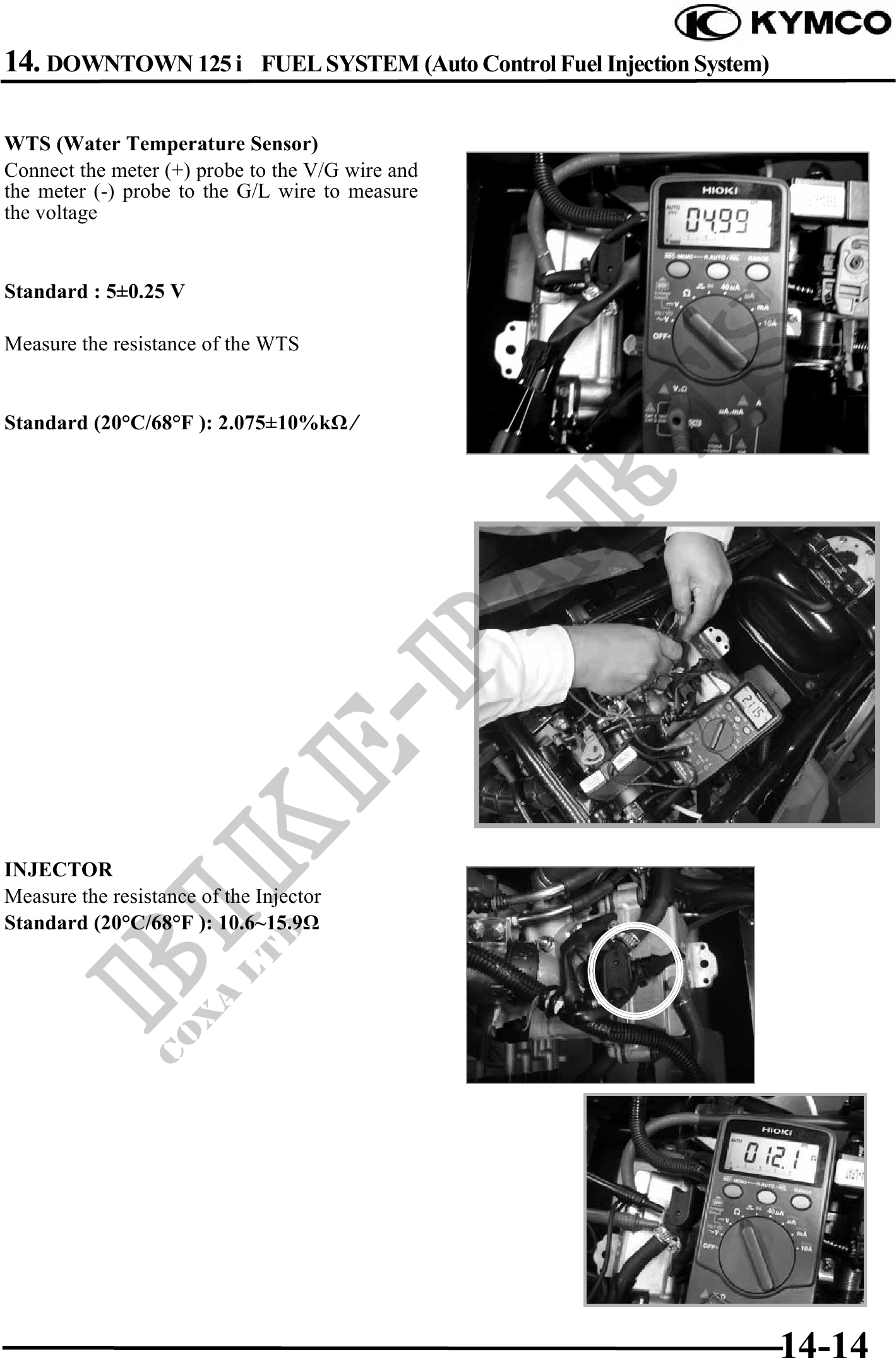

          14. DOWNTOWN 125 i            FUEL SYSTEM (Auto Control Fuel Injection System)


WTS (Water Temperature Sensor)
Connect the meter (+) probe to the V/G wire and
the meter (-) probe to the G/L wire to measure
the voltage


Standard : 50.25 V

Measure the resistance of the WTS


Standard (20°C/68°F ): 2.07510%k




INJECTOR
Measure the resistance of the Injector
Standard (20°C/68°F ): 10.6~15.9




                                                                                 14-14
