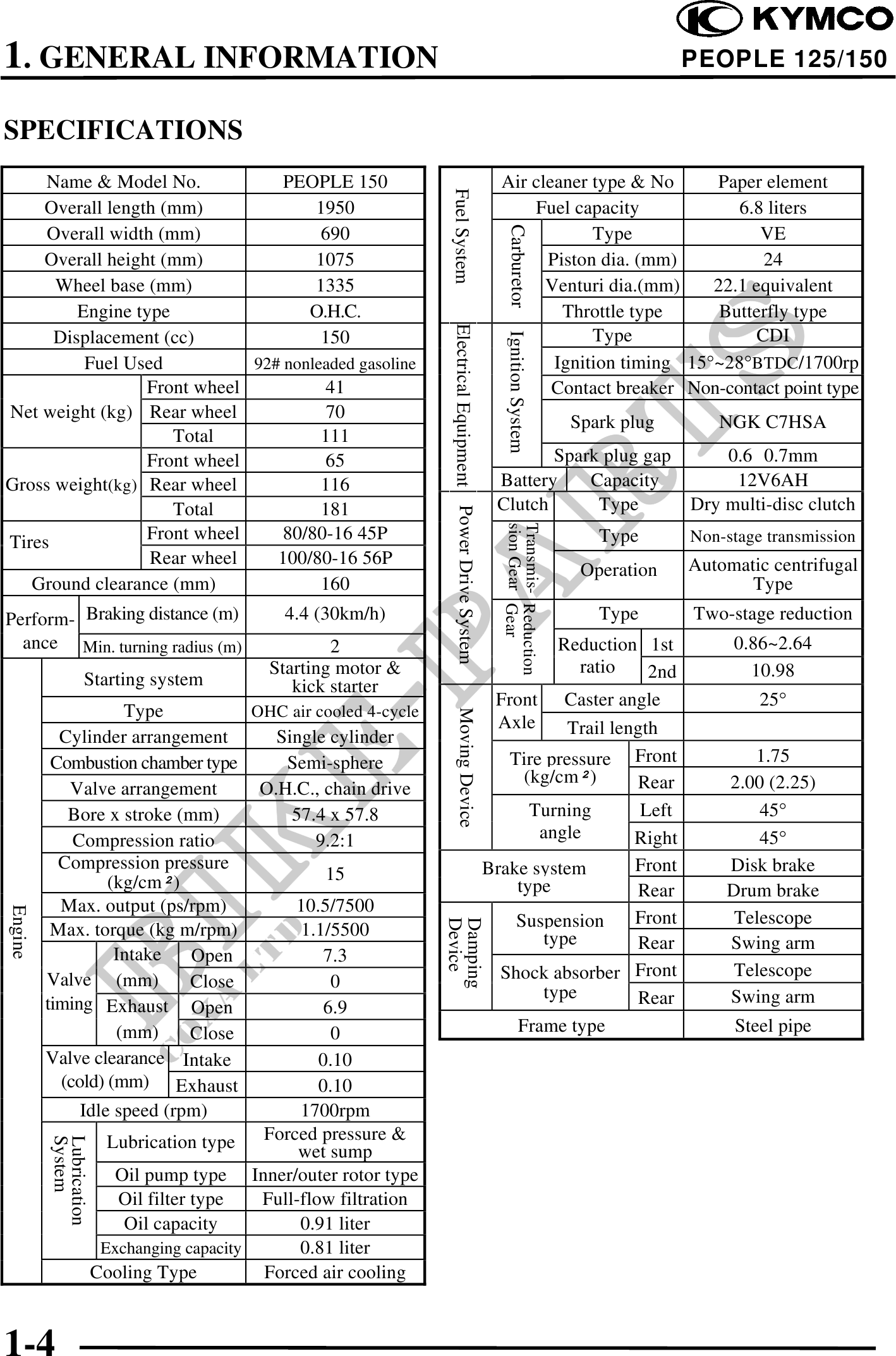

1. GENERAL INFORMATION PEOPLE 125/150 SPECIFICATIONS Name & Model No. PEOPLE 150 Air cleaner type & No Paper element Fuel System Overall length (mm) 1950 Fuel capacity 6.8 liters Carburetor Overall width (mm) 690 Type VE Overall height (mm) 1075 Piston dia. (mm) 24 Wheel base (mm) 1335 Venturi dia.(mm) 22.1 equivalent Engine type O.H.C. Throttle type Butterfly type Electrical Equipment Power Drive System Displacement (cc) 150 Type CDI Ignition System Fuel Used 92# nonleaded gasoline Ignition timing 15°~28°BTDC/1700rp Front wheel 41 Contact breaker Non-contact point type Net weight (kg) Rear wheel 70 Spark plug NGK C7HSA Total 111 Front wheel 65 Spark plug gap 0.6 0.7mm Gross weight(kg) Rear wheel 116 Battery Capacity 12V6AH Total 181 Clutch Type Dry multi-disc clutch sion Gear Gear Transmis- Reduction Tires Front wheel 80/80-16 45P Type Non-stage transmission Rear wheel 100/80-16 56P Automatic centrifugal Operation Ground clearance (mm) 160 Type Perform- Braking distance (m) 4.4 (30km/h) Type Two-stage reduction ance Min. turning radius (m) 2 Reduction 1st 0.86~2.64 Starting motor & ratio 2nd 10.98 Starting system kick starter Front Caster angle 25° Type OHC air cooled 4-cycle Moving Device Axle Trail length Cylinder arrangement Single cylinder Combustion chamber type Semi-sphere Tire pressure Front 1.75 (kg/cm) Rear 2.00 (2.25) Valve arrangement O.H.C., chain drive Bore x stroke (mm) 57.4 x 57.8 Turning Left 45° Compression ratio 9.2:1 angle Right 45° Compression pressure Brake system Front Disk brake (kg/cm) 15 type Rear Drum brake Max. output (ps/rpm) 10.5/7500 Engine Suspension Front Telescope Device Damping Max. torque (kg m/rpm) 1.1/5500 type Rear Swing arm Intake Open 7.3 Valve (mm) Close 0 Shock absorber Front Telescope type Rear Swing arm timing Exhaust Open 6.9 (mm) Close 0 Frame type Steel pipe Valve clearance Intake 0.10 (cold) (mm) Exhaust 0.10 Idle speed (rpm) 1700rpm Lubrication type Forced pressure & System Lubrication wet sump Oil pump type Inner/outer rotor type Oil filter type Full-flow filtration Oil capacity 0.91 liter Exchanging capacity 0.81 liter Cooling Type Forced air cooling 1-4
