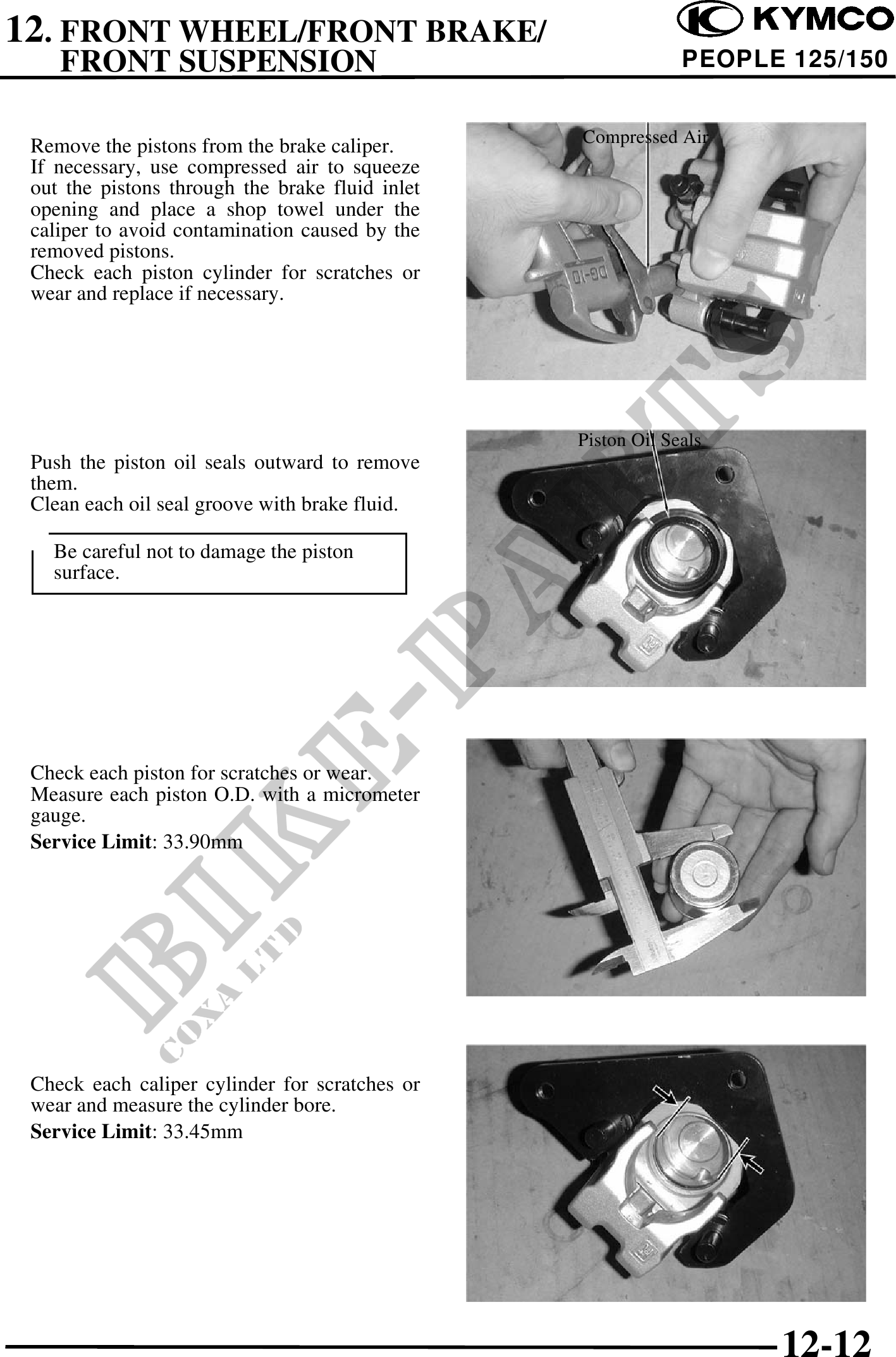

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION PEOPLE 125/150
Remove the pistons from the brake caliper. Compressed Air
If necessary, use compressed air to squeeze
out the pistons through the brake fluid inlet
opening and place a shop towel under the
caliper to avoid contamination caused by the
removed pistons.
Check each piston cylinder for scratches or
wear and replace if necessary.
Piston Oil Seals
Push the piston oil seals outward to remove
them.
Clean each oil seal groove with brake fluid.
Be careful not to damage the piston
surface.
Check each piston for scratches or wear.
Measure each piston O.D. with a micrometer
gauge.
Service Limit: 33.90mm
Check each caliper cylinder for scratches or
wear and measure the cylinder bore.
Service Limit: 33.45mm
12-12
