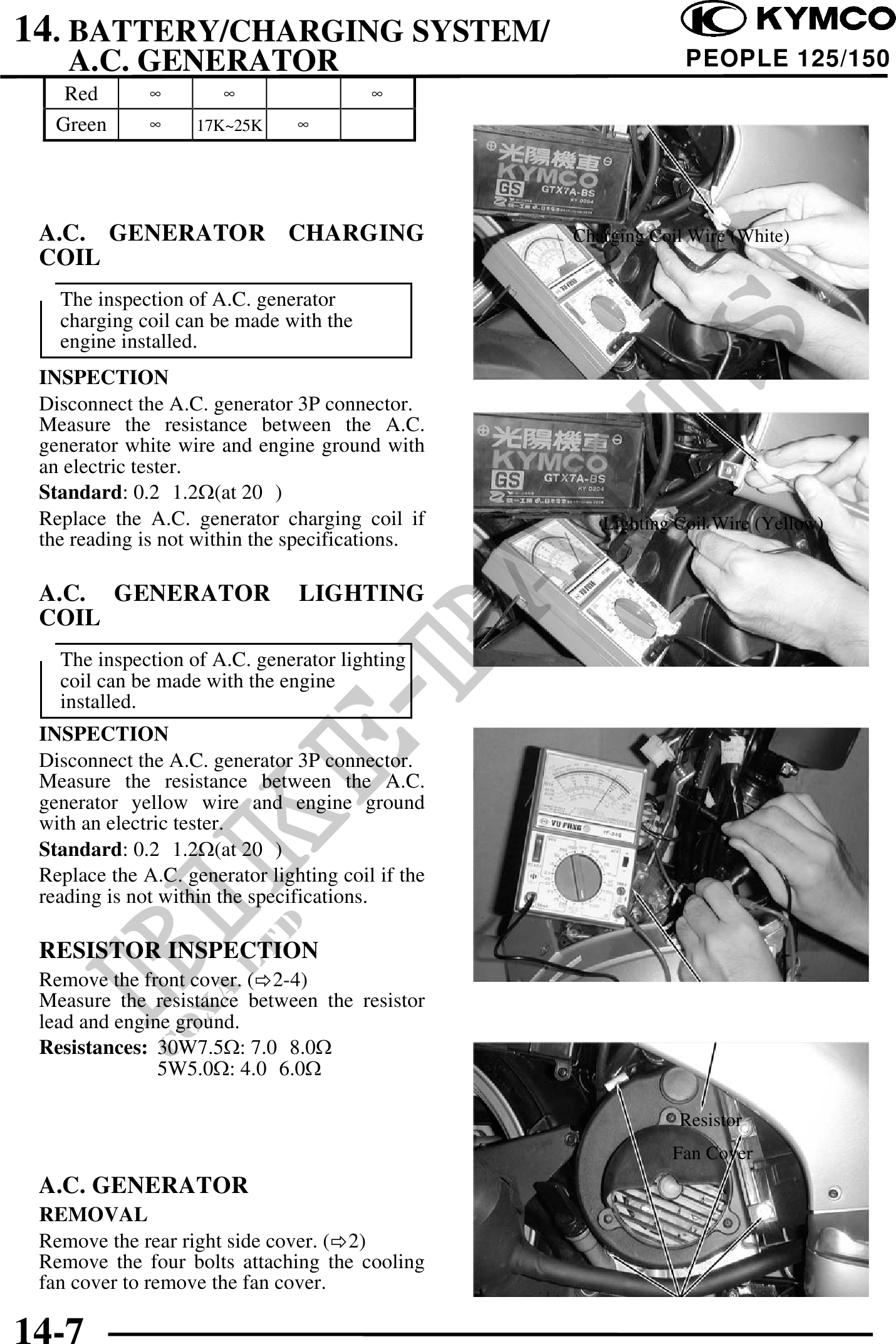

14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR PEOPLE 125/150
Red
Green 17K~25K
A.C. GENERATOR CHARGING Charging Coil Wire (White)
COIL
The inspection of A.C. generator
charging coil can be made with the
engine installed.
INSPECTION
Disconnect the A.C. generator 3P connector.
Measure the resistance between the A.C.
generator white wire and engine ground with
an electric tester.
Standard: 0.2 1.2(at 20 )
Replace the A.C. generator charging coil if Lighting Coil Wire (Yellow)
the reading is not within the specifications.
A.C. GENERATOR LIGHTING
COIL
The inspection of A.C. generator lighting
coil can be made with the engine
installed.
INSPECTION
Disconnect the A.C. generator 3P connector.
Measure the resistance between the A.C.
generator yellow wire and engine ground
with an electric tester.
Standard: 0.2 1.2(at 20 )
Replace the A.C. generator lighting coil if the
reading is not within the specifications.
RESISTOR INSPECTION
Remove the front cover. ( 2-4)
Measure the resistance between the resistor
lead and engine ground.
Resistances: 30W7.5: 7.0 8.0
5W5.0: 4.0 6.0
Resistor
Fan Cover
A.C. GENERATOR
REMOVAL
Remove the rear right side cover. ( 2)
Remove the four bolts attaching the cooling
fan cover to remove the fan cover.
14-7
