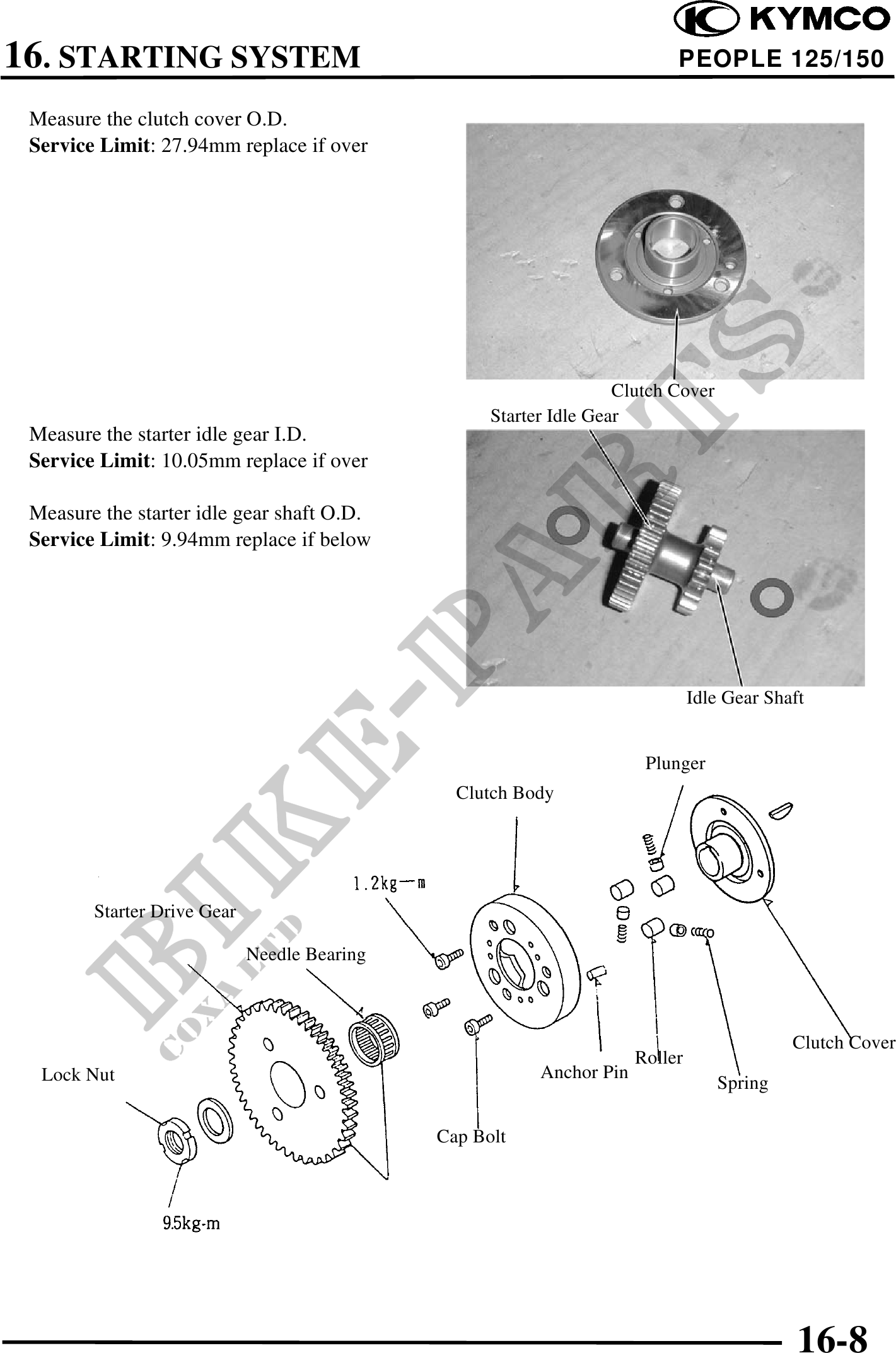

          16. STARTING SYSTEM                                                         PEOPLE 125/150

 Measure the clutch cover O.D.
 Service Limit: 27.94mm replace if over




                                                                    Clutch Cover
                                                    Starter Idle Gear
 Measure the starter idle gear I.D.
 Service Limit: 10.05mm replace if over

 Measure the starter idle gear shaft O.D.
 Service Limit: 9.94mm replace if below




                                                                                Idle Gear Shaft


                                                                        Plunger
                                                Clutch Body




        Starter Drive Gear

                             Needle Bearing



                                                                                             Clutch Cover
                                                                       Roller
  Lock Nut                                                Anchor Pin
                                                                                   Spring

                                              Cap Bolt




                                                                                              16-8
