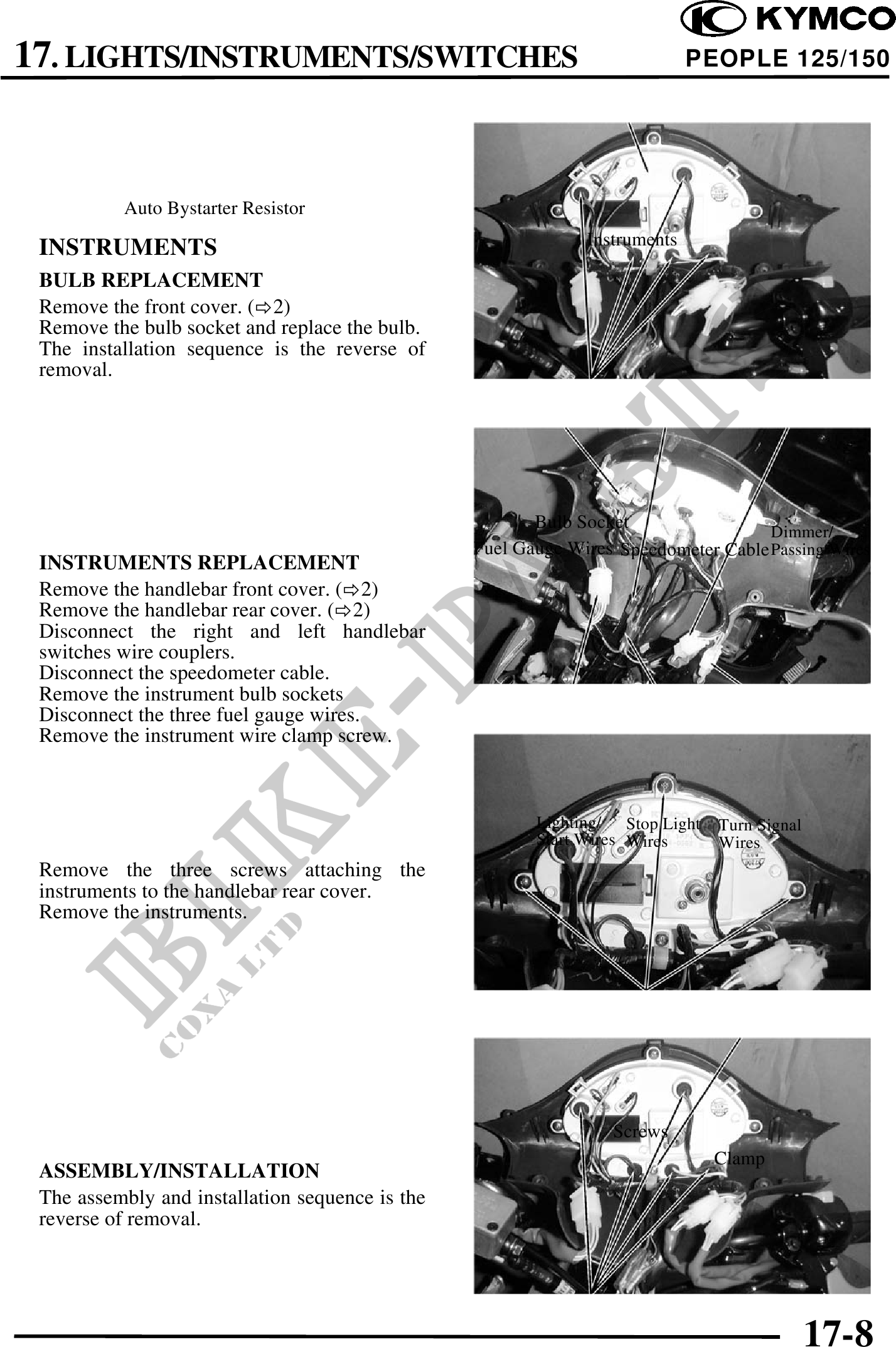

          17. LIGHTS/INSTRUMENTS/SWITCHES                                             PEOPLE 125/150




          Auto Bystarter Resistor

 INSTRUMENTS                                                  Instruments

 BULB REPLACEMENT
 Remove the front cover. ( 2)
 Remove the bulb socket and replace the bulb.
 The installation sequence is the reverse of
 removal.




                                                        Bulb Socket                 Dimmer/
                                                 Fuel Gauge Wires Speedometer Cable Passing Wires
 INSTRUMENTS REPLACEMENT
 Remove the handlebar front cover. ( 2)
 Remove the handlebar rear cover. ( 2)
 Disconnect the right and left handlebar
 switches wire couplers.
 Disconnect the speedometer cable.
 Remove the instrument bulb sockets
 Disconnect the three fuel gauge wires.
 Remove the instrument wire clamp screw.



                                                        Lighting/ Stop Light   Turn Signal
                                                        Start Wires Wires      Wires
 Remove the three screws attaching the
 instruments to the handlebar rear cover.
 Remove the instruments.




                                                                 Screws
                                                                               Clamp
 ASSEMBLY/INSTALLATION
 The assembly and installation sequence is the
 reverse of removal.




                                                                                             17-8
