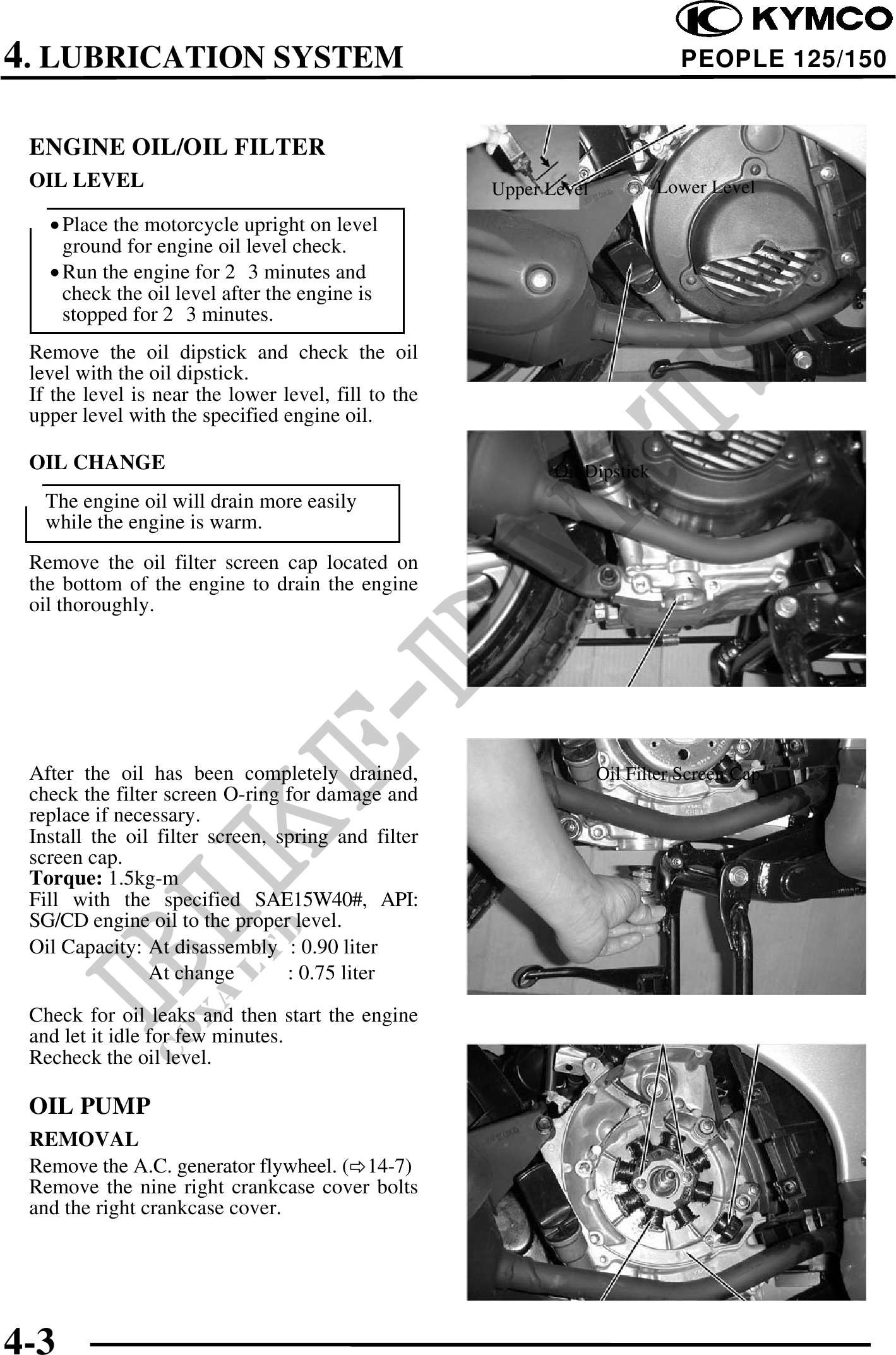

4. LUBRICATION SYSTEM PEOPLE 125/150
ENGINE OIL/OIL FILTER
OIL LEVEL Upper Level Lower Level
· Place the motorcycle upright on level
ground for engine oil level check.
· Run the engine for 2 3 minutes and
check the oil level after the engine is
stopped for 2 3 minutes.
Remove the oil dipstick and check the oil
level with the oil dipstick.
If the level is near the lower level, fill to the
upper level with the specified engine oil.
OIL CHANGE Oil Dipstick
The engine oil will drain more easily
while the engine is warm.
Remove the oil filter screen cap located on
the bottom of the engine to drain the engine
oil thoroughly.
After the oil has been completely drained, Oil Filter Screen Cap
check the filter screen O-ring for damage and
replace if necessary.
Install the oil filter screen, spring and filter
screen cap.
Torque: 1.5kg-m
Fill with the specified SAE15W40#, API:
SG/CD engine oil to the proper level.
Oil Capacity: At disassembly : 0.90 liter
At change : 0.75 liter
Check for oil leaks and then start the engine
and let it idle for few minutes.
Recheck the oil level.
OIL PUMP Bolts Pulser Coil
REMOVAL
Remove the A.C. generator flywheel. ( 14-7)
Remove the nine right crankcase cover bolts
and the right crankcase cover.
4-3
