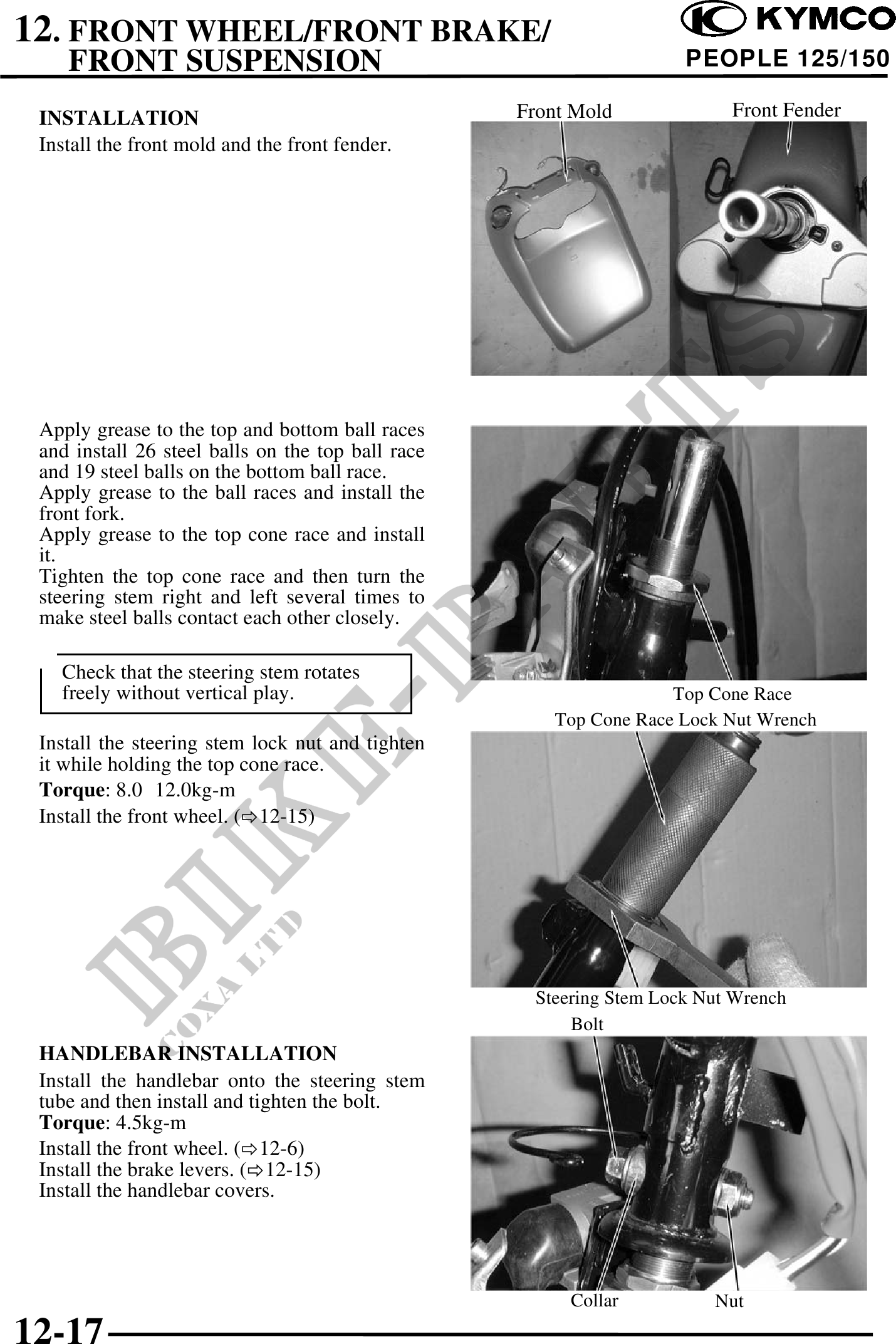

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                 PEOPLE 125/150

 INSTALLATION                                      Front Mold             Front Fender
 Install the front mold and the front fender.




 Apply grease to the top and bottom ball races
 and install 26 steel balls on the top ball race
 and 19 steel balls on the bottom ball race.
 Apply grease to the ball races and install the
 front fork.
 Apply grease to the top cone race and install
 it.
 Tighten the top cone race and then turn the
 steering stem right and left several times to
 make steel balls contact each other closely.

   Check that the steering stem rotates
   freely without vertical play.                                   Top Cone Race
                                                      Top Cone Race Lock Nut Wrench
 Install the steering stem lock nut and tighten
 it while holding the top cone race.
 Torque: 8.0 12.0kg-m
 Install the front wheel. ( 12-15)




                                                    Steering Stem Lock Nut Wrench
                                                        Bolt
 HANDLEBAR INSTALLATION
 Install the handlebar onto the steering stem
 tube and then install and tighten the bolt.
 Torque: 4.5kg-m
 Install the front wheel. ( 12-6)
 Install the brake levers. ( 12-15)
 Install the handlebar covers.




                                                        Collar          Nut
12-17
