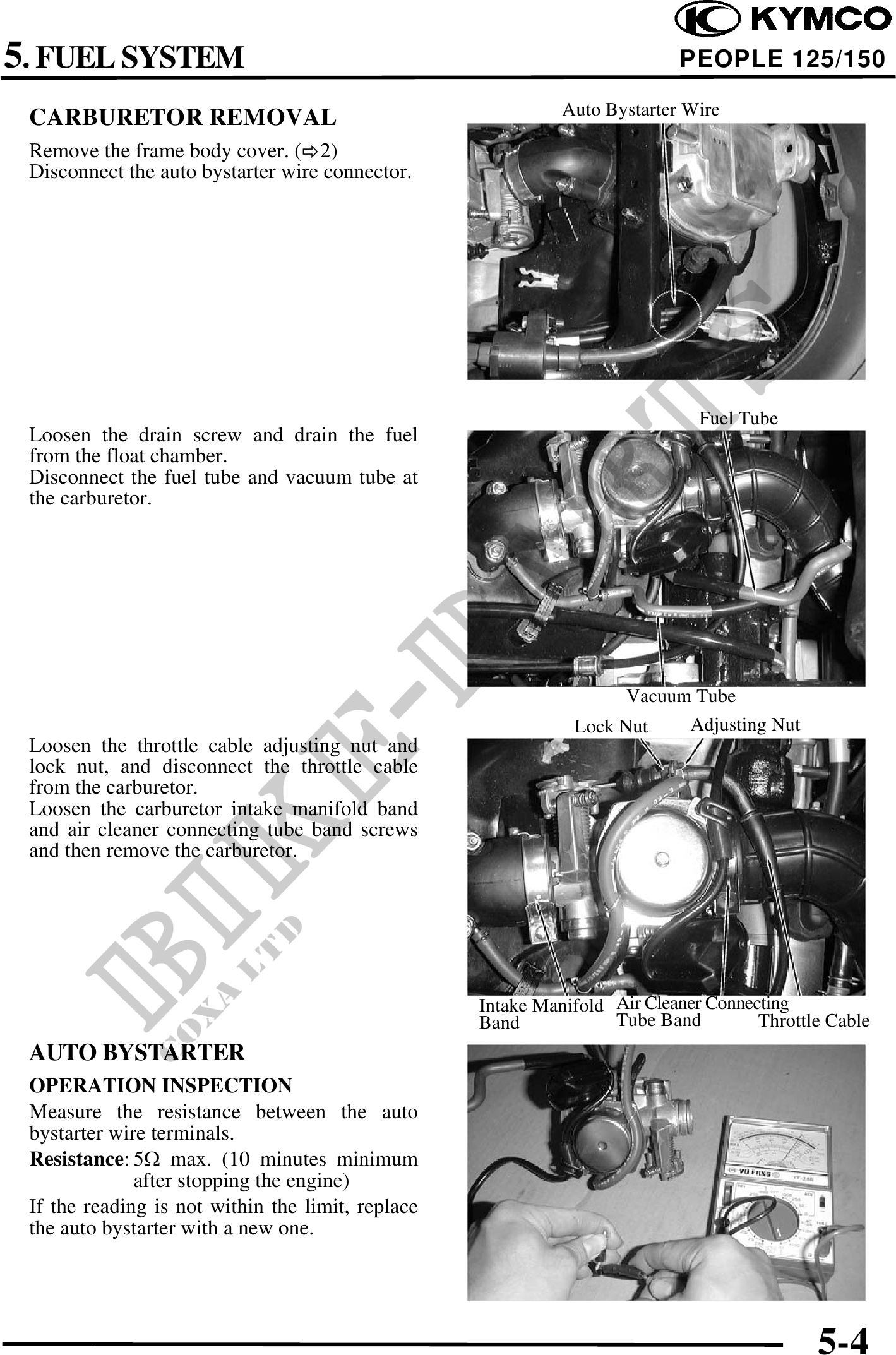

          5. FUEL SYSTEM                                                             PEOPLE 125/150

 CARBURETOR REMOVAL                                          Auto Bystarter Wire

 Remove the frame body cover. ( 2)
 Disconnect the auto bystarter wire connector.




                                                                              Fuel Tube
 Loosen the drain screw and drain the fuel
 from the float chamber.
 Disconnect the fuel tube and vacuum tube at
 the carburetor.




                                                                     Vacuum Tube
                                                              Lock Nut      Adjusting Nut
 Loosen the throttle cable adjusting nut and
 lock nut, and disconnect the throttle cable
 from the carburetor.
 Loosen the carburetor intake manifold band
 and air cleaner connecting tube band screws
 and then remove the carburetor.




                                                   Intake Manifold Air Cleaner Connecting
                                                   Band            Tube Band         Throttle Cable
 AUTO BYSTARTER
 OPERATION INSPECTION
 Measure the resistance between the auto
 bystarter wire terminals.
 Resistance: 5 max. (10 minutes minimum
              after stopping the engine)
 If the reading is not within the limit, replace
 the auto bystarter with a new one.
