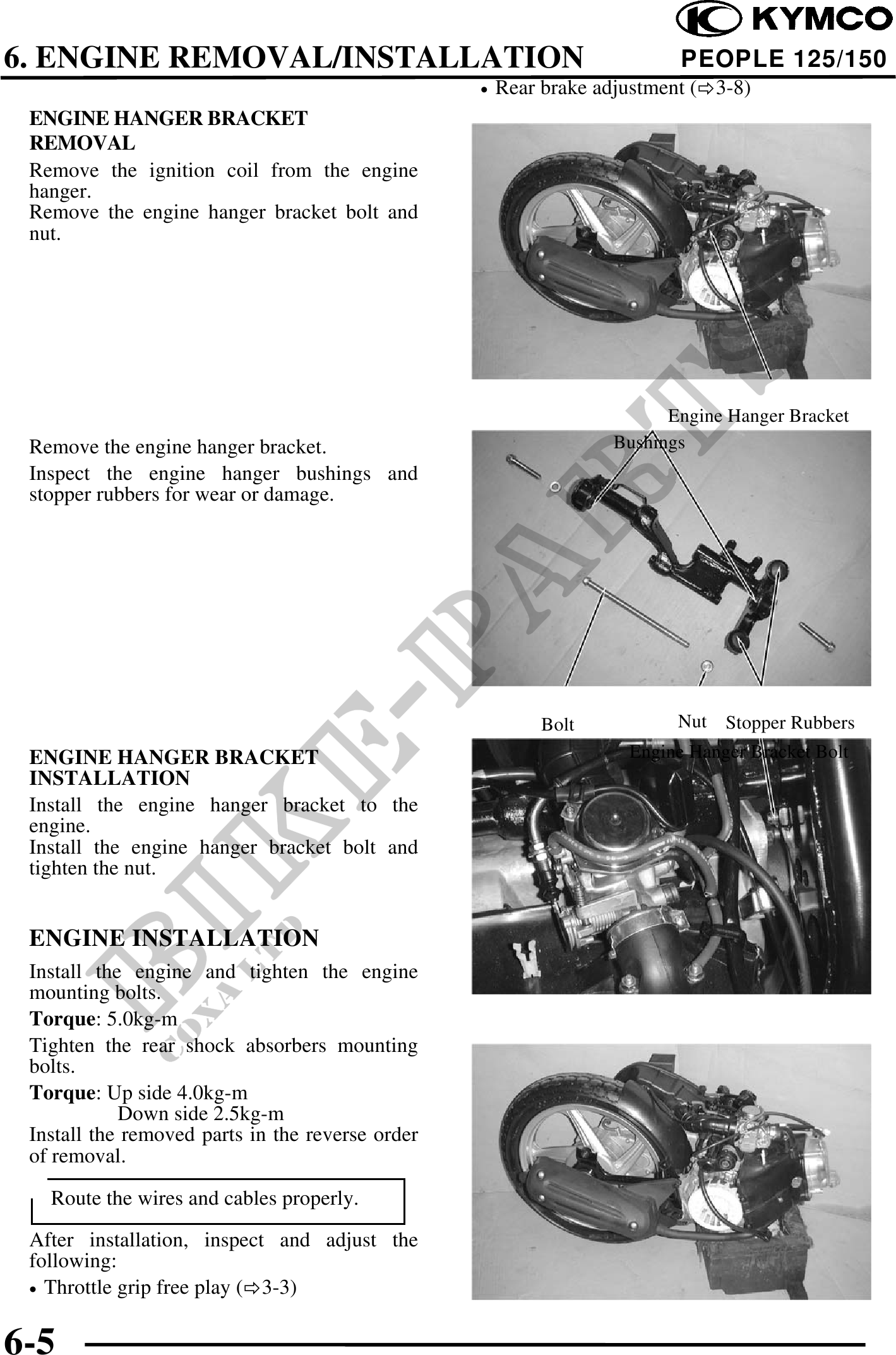

          6. ENGINE REMOVAL/INSTALLATION                                            PEOPLE 125/150
                                                  ·   Rear brake adjustment ( 3-8)
 ENGINE HANGER BRACKET
 REMOVAL
 Remove the ignition coil from the engine
 hanger.
 Remove the engine hanger bracket bolt and
 nut.




                                                                        Engine Hanger Bracket
 Remove the engine hanger bracket.                                Bushings
 Inspect the engine hanger bushings and
 stopper rubbers for wear or damage.




                                                           Bolt           Nut Stopper Rubbers
 ENGINE HANGER BRACKET                                              Engine Hanger Bracket Bolt
 INSTALLATION
 Install the engine hanger bracket to the
 engine.
 Install the engine hanger bracket bolt and
 tighten the nut.


 ENGINE INSTALLATION
 Install the engine and tighten the engine
 mounting bolts.
 Torque: 5.0kg-m
 Tighten the rear shock absorbers mounting
 bolts.
 Torque: Up side 4.0kg-m
            Down side 2.5kg-m
 Install the removed parts in the reverse order
 of removal.

   Route the wires and cables properly.
 After installation, inspect and adjust the
 following:
 · Throttle grip free play ( 3-3)


6-5
