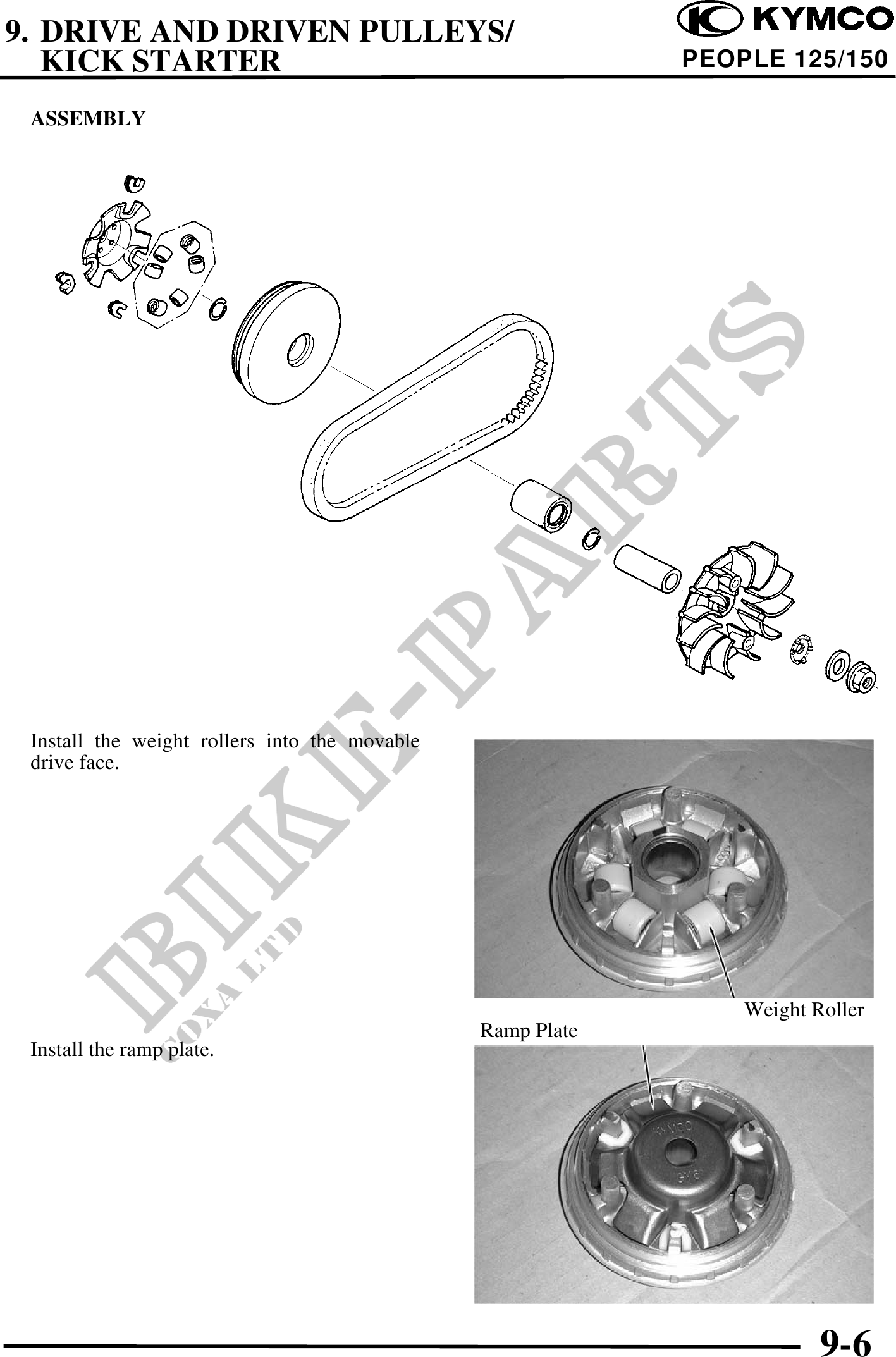

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                             PEOPLE 125/150

 ASSEMBLY




 Install the weight rollers into the movable
 drive face.




                                                                Weight Roller
                                               Ramp Plate
 Install the ramp plate.
