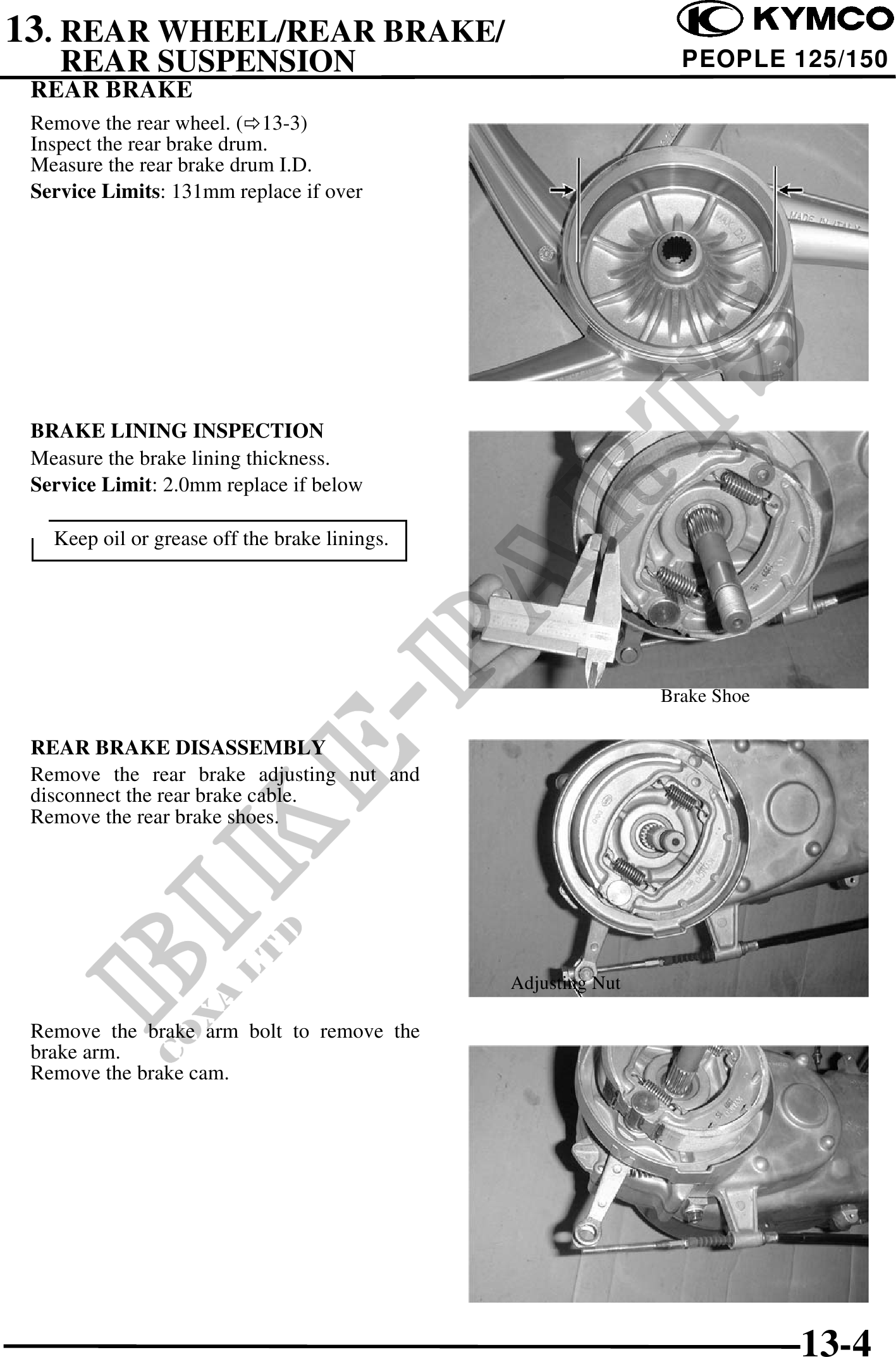

13. REAR WHEEL/REAR BRAKE/ REAR SUSPENSION PEOPLE 125/150 REAR BRAKE Remove the rear wheel. ( 13-3) Inspect the rear brake drum. Measure the rear brake drum I.D. Service Limits: 131mm replace if over BRAKE LINING INSPECTION Measure the brake lining thickness. Service Limit: 2.0mm replace if below Keep oil or grease off the brake linings. Brake Shoe REAR BRAKE DISASSEMBLY Remove the rear brake adjusting nut and disconnect the rear brake cable. Remove the rear brake shoes. Adjusting Nut Remove the brake arm bolt to remove the brake arm. Remove the brake cam. 13-4
