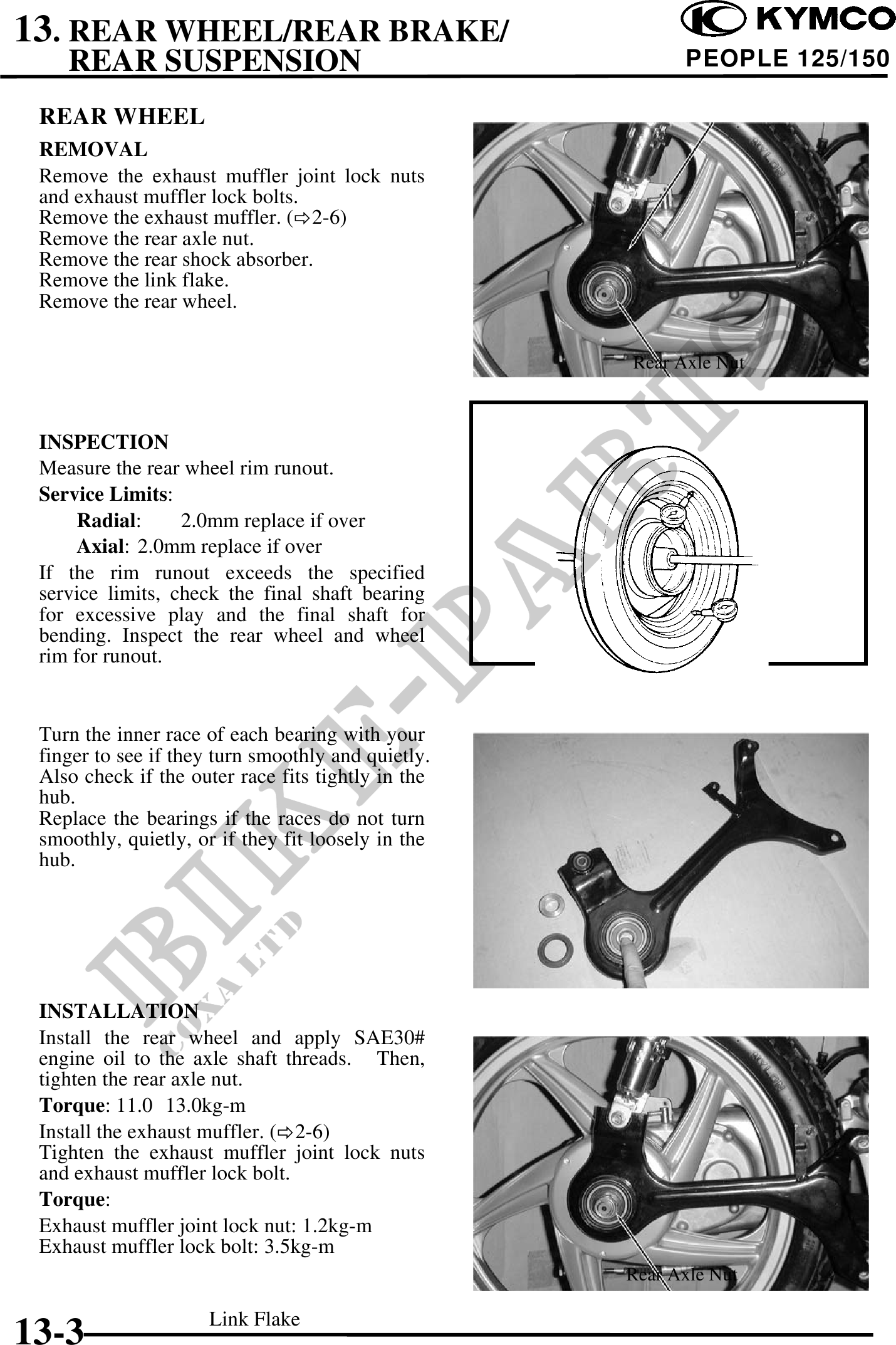

          13. REAR WHEEL/REAR BRAKE/
    REAR SUSPENSION                                       PEOPLE 125/150

 REAR WHEEL
 REMOVAL
 Remove the exhaust muffler joint lock nuts
 and exhaust muffler lock bolts.
 Remove the exhaust muffler. ( 2-6)
 Remove the rear axle nut.
 Remove the rear shock absorber.
 Remove the link flake.
 Remove the rear wheel.

                                                    Rear Axle Nut



 INSPECTION
 Measure the rear wheel rim runout.
 Service Limits:
      Radial:     2.0mm replace if over
      Axial: 2.0mm replace if over
 If the rim runout exceeds the specified
 service limits, check the final shaft bearing
 for excessive play and the final shaft for
 bending. Inspect the rear wheel and wheel
 rim for runout.


 Turn the inner race of each bearing with your
 finger to see if they turn smoothly and quietly.
 Also check if the outer race fits tightly in the
 hub.
 Replace the bearings if the races do not turn
 smoothly, quietly, or if they fit loosely in the
 hub.




 INSTALLATION
 Install the rear wheel and apply SAE30#
 engine oil to the axle shaft threads. Then,
 tighten the rear axle nut.
 Torque: 11.0 13.0kg-m
 Install the exhaust muffler. ( 2-6)
 Tighten the exhaust muffler joint lock nuts
 and exhaust muffler lock bolt.
 Torque:
 Exhaust muffler joint lock nut: 1.2kg-m
 Exhaust muffler lock bolt: 3.5kg-m
                                                    Rear Axle Nut

                     Link Flake
13-3
