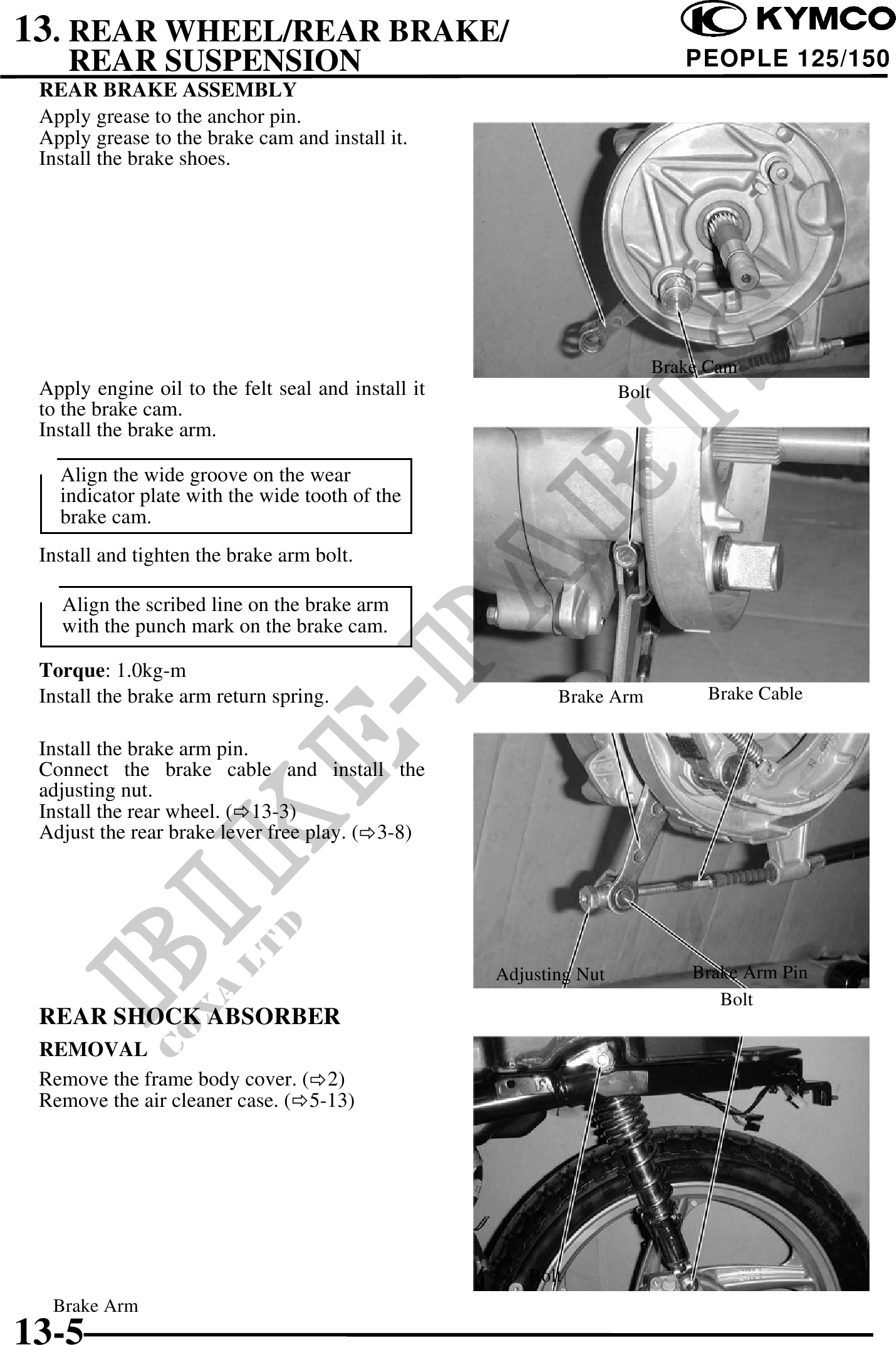

          13. REAR WHEEL/REAR BRAKE/
    REAR SUSPENSION                                                           PEOPLE 125/150
 REAR BRAKE ASSEMBLY
 Apply grease to the anchor pin.
 Apply grease to the brake cam and install it.
 Install the brake shoes.




                                                                           Brake Cam
 Apply engine oil to the felt seal and install it                   Bolt
 to the brake cam.
 Install the brake arm.

   Align the wide groove on the wear
   indicator plate with the wide tooth of the
   brake cam.
 Install and tighten the brake arm bolt.

   Align the scribed line on the brake arm
   with the punch mark on the brake cam.

 Torque: 1.0kg-m
 Install the brake arm return spring.                      Brake Arm            Brake Cable

 Install the brake arm pin.
 Connect the brake cable and install the
 adjusting nut.
 Install the rear wheel. ( 13-3)
 Adjust the rear brake lever free play. ( 3-8)




                                                    Adjusting Nut              Brake Arm Pin
                                                                                  Bolt
 REAR SHOCK ABSORBER
 REMOVAL
 Remove the frame body cover. ( 2)
 Remove the air cleaner case. ( 5-13)




                                                       Bolt
  Brake Arm
13-5
