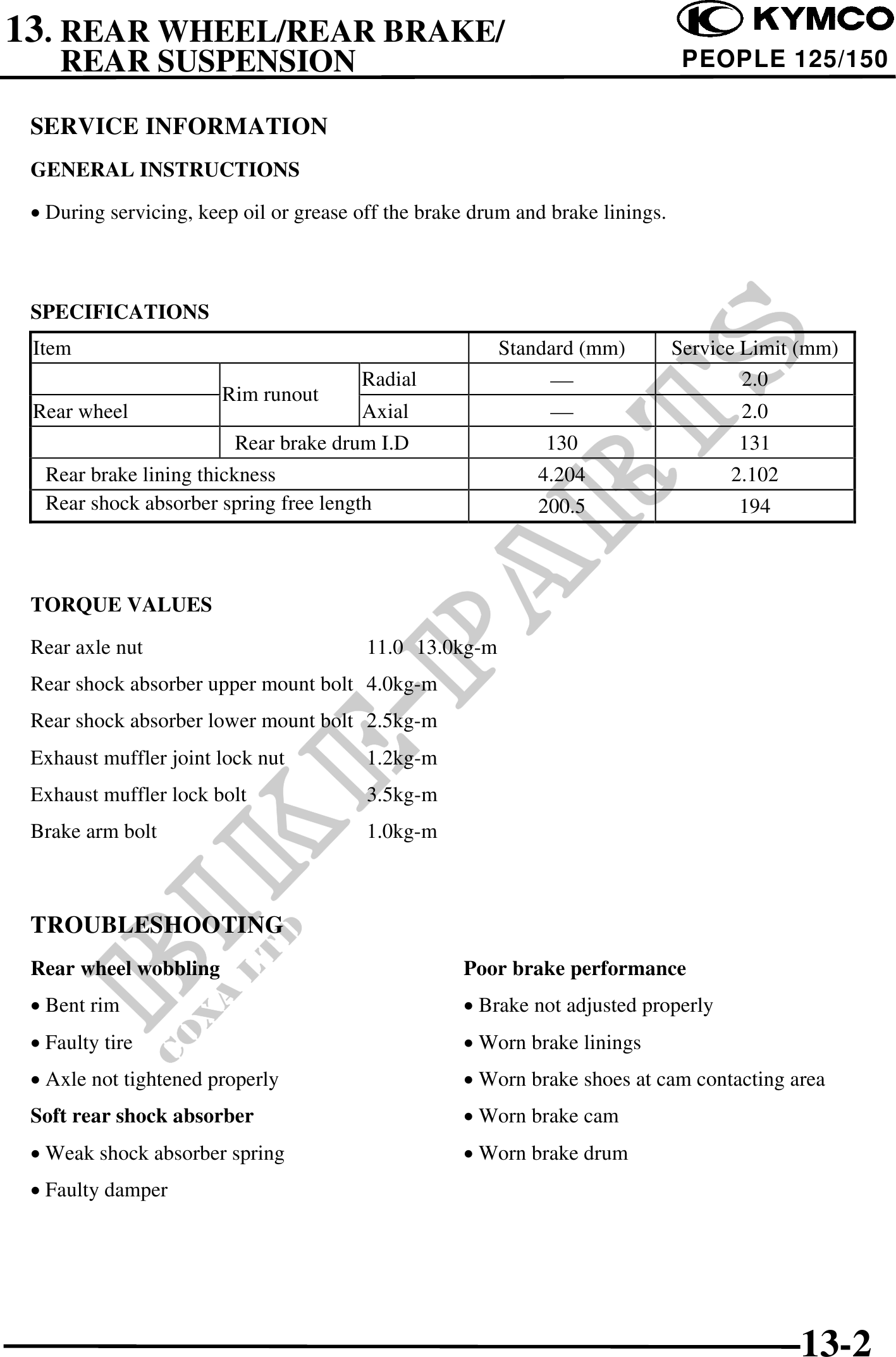

          13. REAR WHEEL/REAR BRAKE/
    REAR SUSPENSION                                                              PEOPLE 125/150

 SERVICE INFORMATION
 GENERAL INSTRUCTIONS

 · During servicing, keep oil or grease off the brake drum and brake linings.



 SPECIFICATIONS
 Item                                                    Standard (mm)          Service Limit (mm)
                                        Radial                                          2.0
                       Rim runout
 Rear wheel                            Axial                                           2.0
                         Rear brake drum I.D                  130                      131
  Rear brake lining thickness                                4.204                    2.102
  Rear shock absorber spring free length                     200.5                     194



 TORQUE VALUES

 Rear axle nut                           11.0 13.0kg-m
 Rear shock absorber upper mount bolt 4.0kg-m
 Rear shock absorber lower mount bolt 2.5kg-m
 Exhaust muffler joint lock nut          1.2kg-m
 Exhaust muffler lock bolt               3.5kg-m
 Brake arm bolt                          1.0kg-m



 TROUBLESHOOTING
 Rear wheel wobbling                                Poor brake performance
 · Bent rim                                         · Brake not adjusted properly
 · Faulty tire                                      · Worn brake linings
 · Axle not tightened properly                      · Worn brake shoes at cam contacting area
 Soft rear shock absorber                           · Worn brake cam
 · Weak shock absorber spring                       · Worn brake drum
 · Faulty damper




                                                                                              13-2
