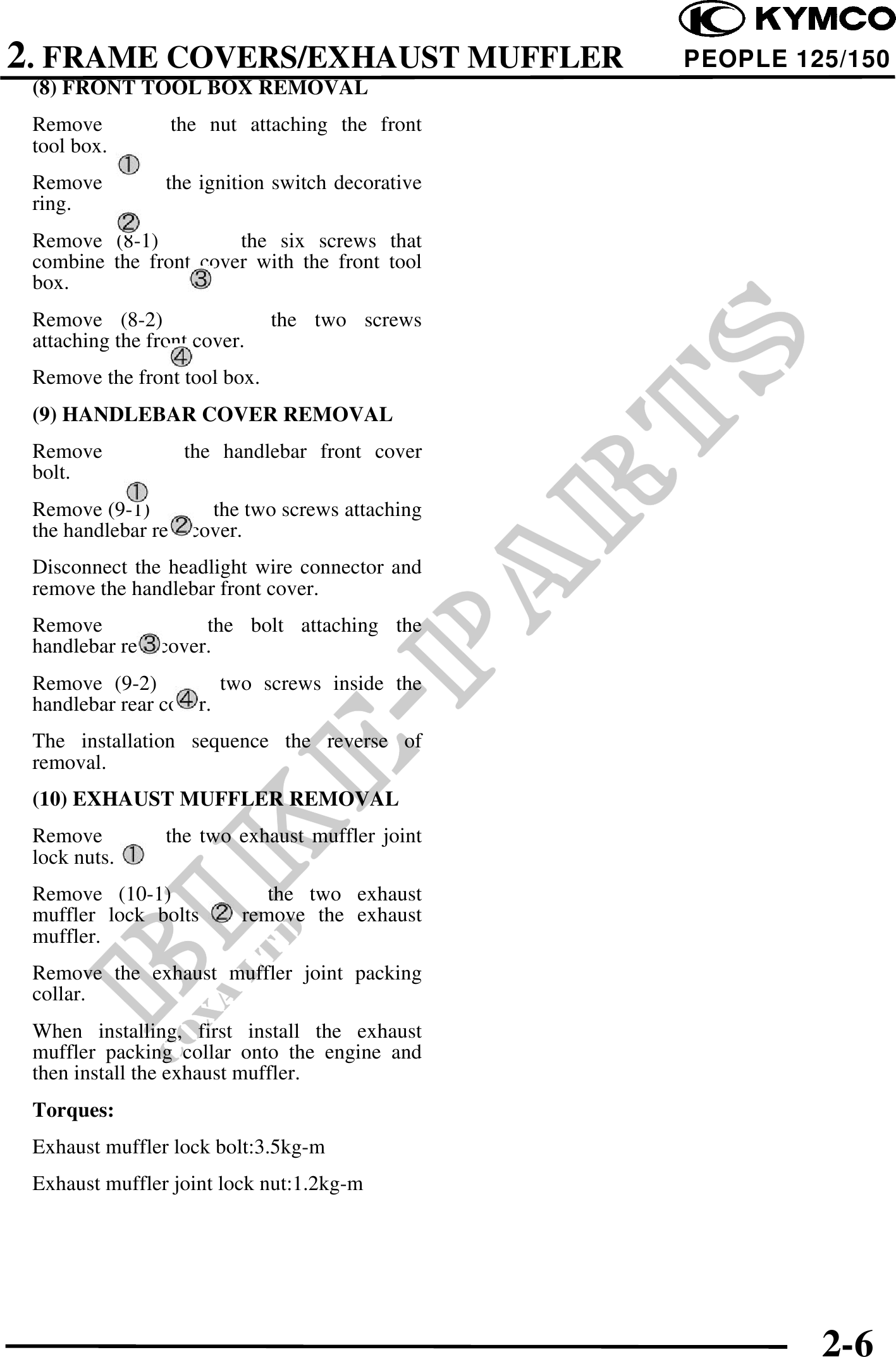

          2. FRAME COVERS/EXHAUST MUFFLER                   PEOPLE 125/150
 (8) FRONT TOOL BOX REMOVAL
 Remove          the nut attaching the front
 tool box.
 Remove          the ignition switch decorative
 ring.
 Remove (8-1)          the six screws that
 combine the front cover with the front tool
 box.
 Remove (8-2)                 the two screws
 attaching the front cover.
 Remove the front tool box.
 (9) HANDLEBAR COVER REMOVAL
 Remove            the handlebar front cover
 bolt.
 Remove (9-1)         the two screws attaching
 the handlebar rear cover.
 Disconnect the headlight wire connector and
 remove the handlebar front cover.
 Remove              the bolt attaching the
 handlebar rear cover.
 Remove (9-2)          two screws inside the
 handlebar rear cover.
 The installation sequence the reverse of
 removal.
 (10) EXHAUST MUFFLER REMOVAL
 Remove          the two exhaust muffler joint
 lock nuts.
 Remove (10-1)            the two exhaust
 muffler lock bolts to remove the exhaust
 muffler.
 Remove the exhaust muffler joint packing
 collar.
 When installing, first install the exhaust
 muffler packing collar onto the engine and
 then install the exhaust muffler.
 Torques:
 Exhaust muffler lock bolt:3.5kg-m
 Exhaust muffler joint lock nut:1.2kg-m




                                                           2-6
