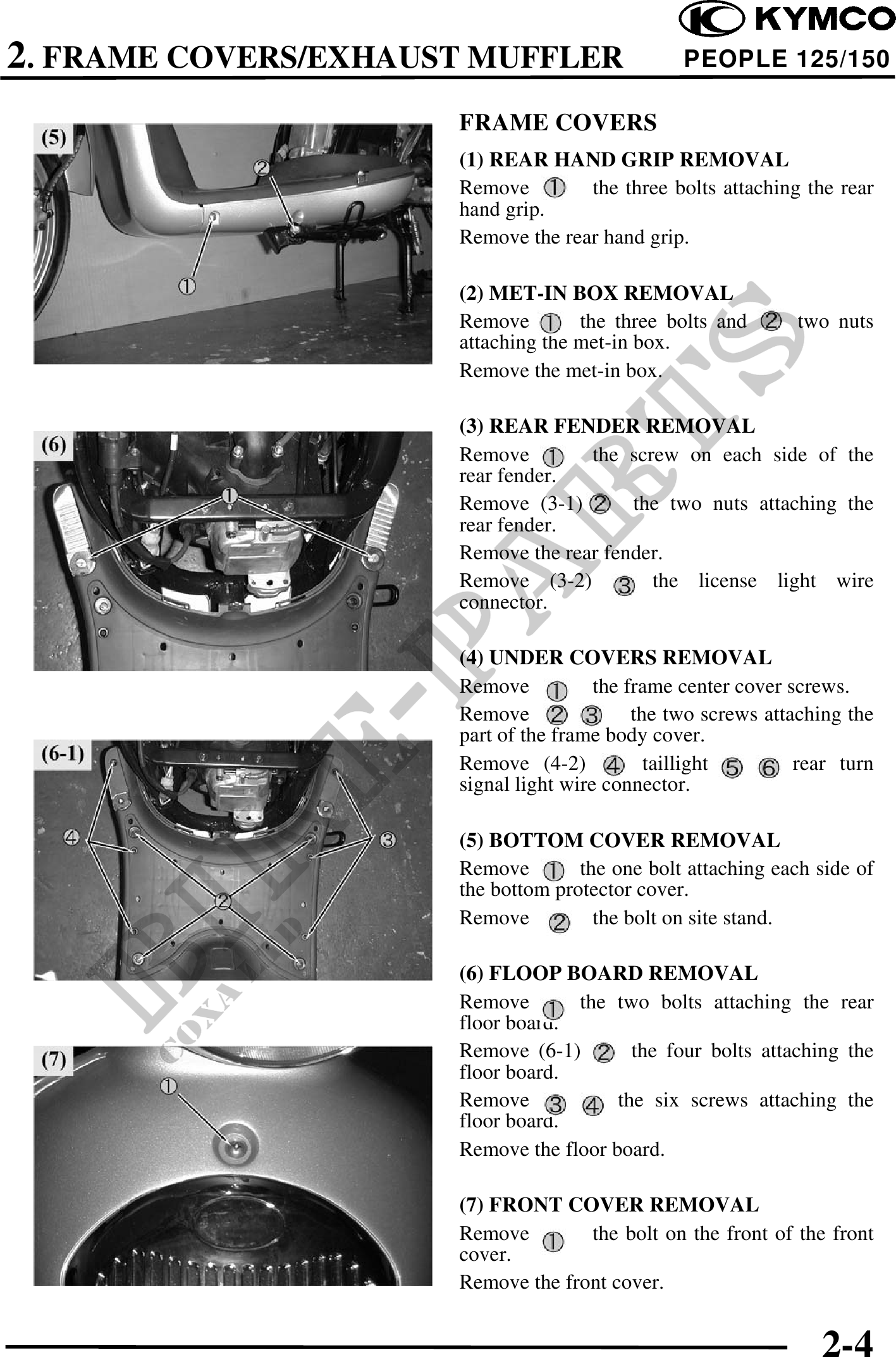

2. FRAME COVERS/EXHAUST MUFFLER PEOPLE 125/150 FRAME COVERS (1) REAR HAND GRIP REMOVAL Remove the three bolts attaching the rear hand grip. Remove the rear hand grip. (2) MET-IN BOX REMOVAL Remove the three bolts and two nuts attaching the met-in box. Remove the met-in box. (3) REAR FENDER REMOVAL Remove the screw on each side of the rear fender. Remove (3-1) the two nuts attaching the rear fender. Remove the rear fender. Remove (3-2) the license light wire connector. (4) UNDER COVERS REMOVAL Remove the frame center cover screws. Remove the two screws attaching the part of the frame body cover. Remove (4-2) taillight rear turn signal light wire connector. (5) BOTTOM COVER REMOVAL Remove the one bolt attaching each side of the bottom protector cover. Remove the bolt on site stand. (6) FLOOP BOARD REMOVAL Remove the two bolts attaching the rear floor board. Remove (6-1) the four bolts attaching the floor board. Remove the six screws attaching the floor board. Remove the floor board. (7) FRONT COVER REMOVAL Remove the bolt on the front of the front cover. Remove the front cover. 2-4
