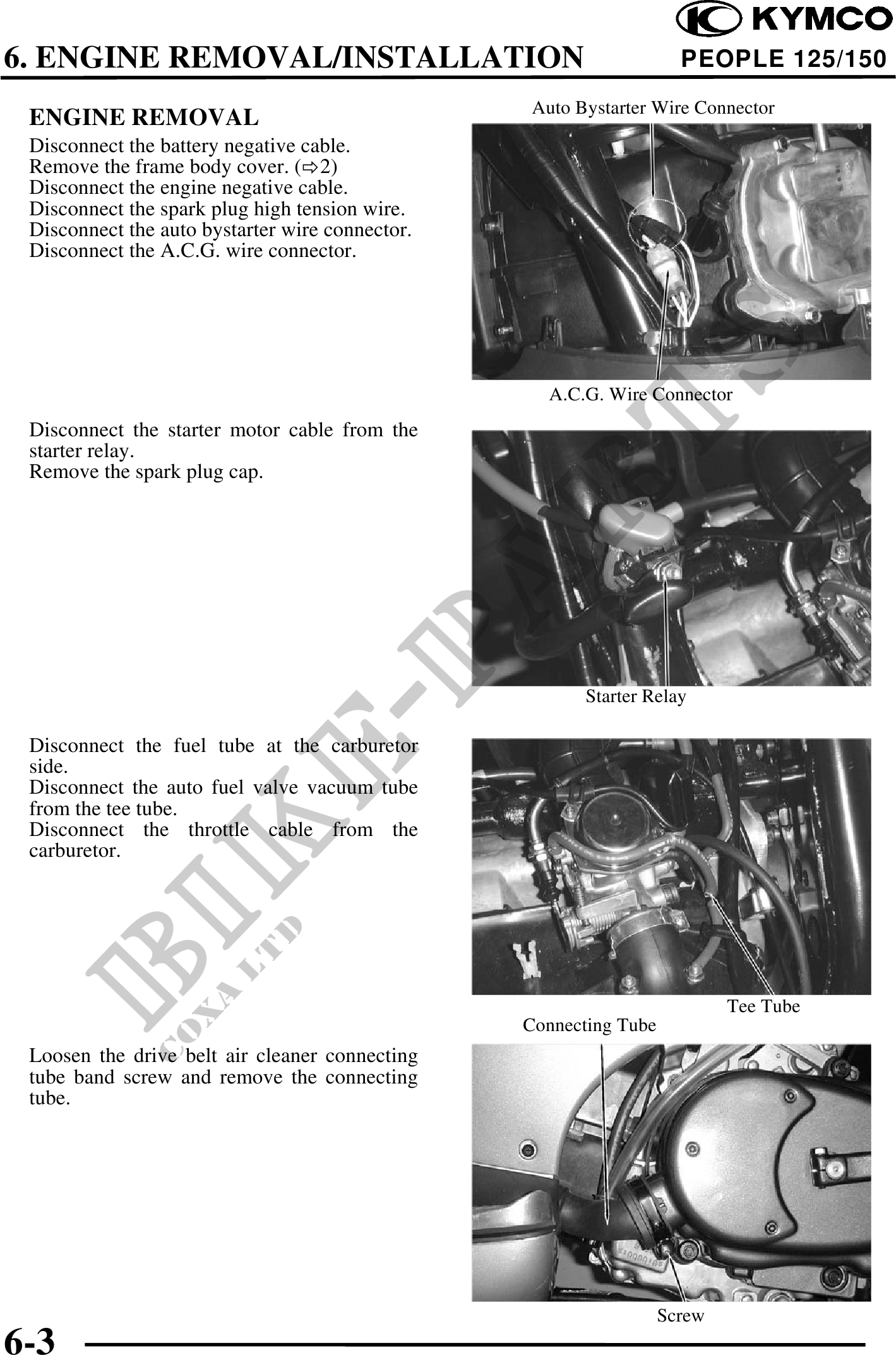

          6. ENGINE REMOVAL/INSTALLATION                                       PEOPLE 125/150
                                                  Auto Bystarter Wire Connector
 ENGINE REMOVAL
 Disconnect the battery negative cable.
 Remove the frame body cover. ( 2)
 Disconnect the engine negative cable.
 Disconnect the spark plug high tension wire.
 Disconnect the auto bystarter wire connector.
 Disconnect the A.C.G. wire connector.




                                                    A.C.G. Wire Connector
 Disconnect the starter motor cable from the
 starter relay.
 Remove the spark plug cap.




                                                        Starter Relay

 Disconnect the fuel tube at the carburetor
 side.
 Disconnect the auto fuel valve vacuum tube
 from the tee tube.
 Disconnect the throttle cable from the
 carburetor.




                                                                           Tee Tube
                                                 Connecting Tube
 Loosen the drive belt air cleaner connecting
 tube band screw and remove the connecting
 tube.




                                                                   Screw
6-3
