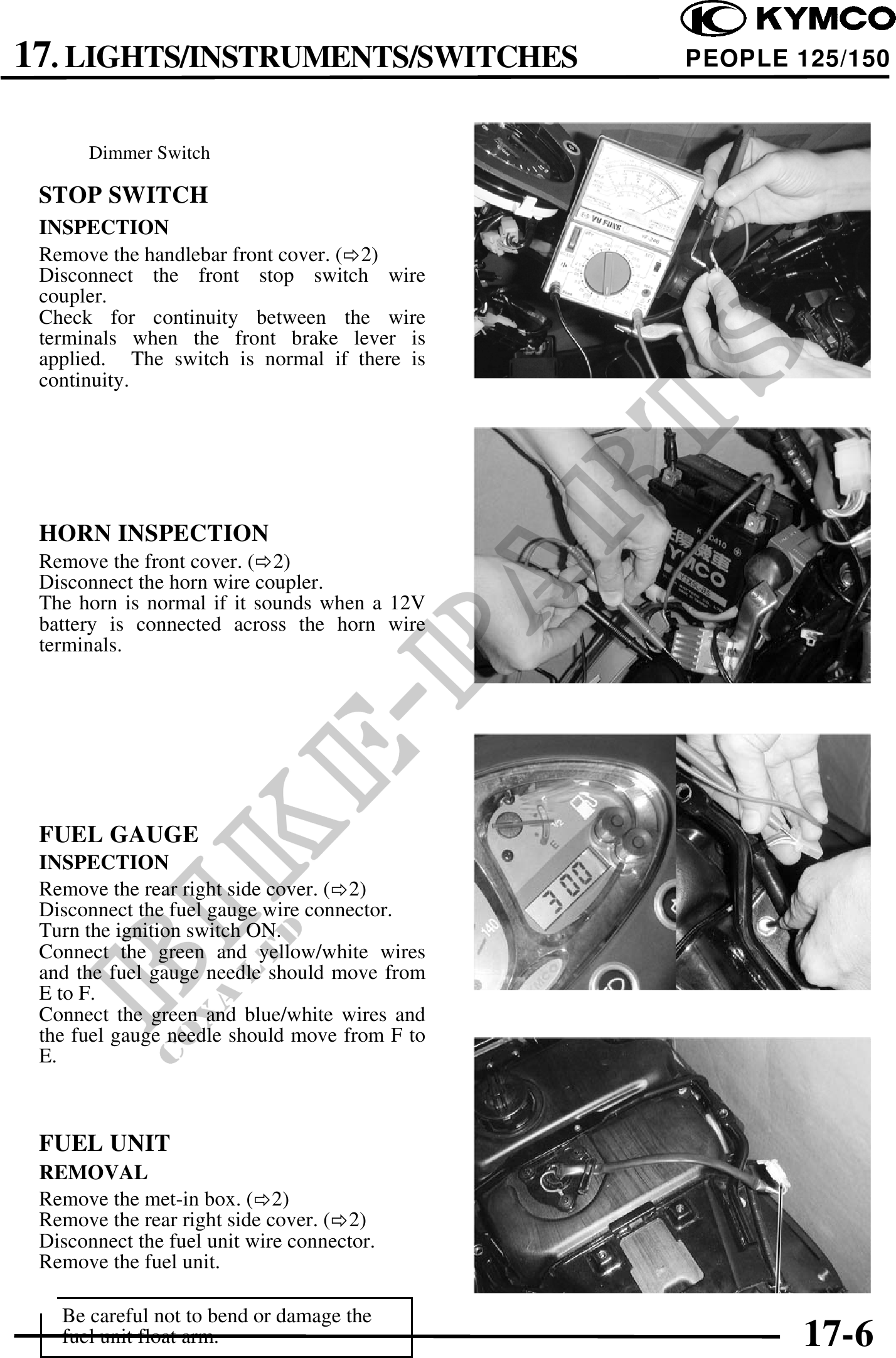

          17. LIGHTS/INSTRUMENTS/SWITCHES                PEOPLE 125/150


      Dimmer Switch

 STOP SWITCH
 INSPECTION
 Remove the handlebar front cover. ( 2)
 Disconnect the front stop switch wire
 coupler.
 Check for continuity between the wire
 terminals when the front brake lever is
 applied. The switch is normal if there is
 continuity.




 HORN INSPECTION
 Remove the front cover. ( 2)
 Disconnect the horn wire coupler.
 The horn is normal if it sounds when a 12V
 battery is connected across the horn wire
 terminals.




 FUEL GAUGE
 INSPECTION
 Remove the rear right side cover. ( 2)
 Disconnect the fuel gauge wire connector.
 Turn the ignition switch ON.
 Connect the green and yellow/white wires
 and the fuel gauge needle should move from
 E to F.
 Connect the green and blue/white wires and
 the fuel gauge needle should move from F to
 E.



 FUEL UNIT
 REMOVAL
 Remove the met-in box. ( 2)
 Remove the rear right side cover. ( 2)
 Disconnect the fuel unit wire connector.
 Remove the fuel unit.

   Be careful not to bend or damage the
   fuel unit float arm.                                17-6
