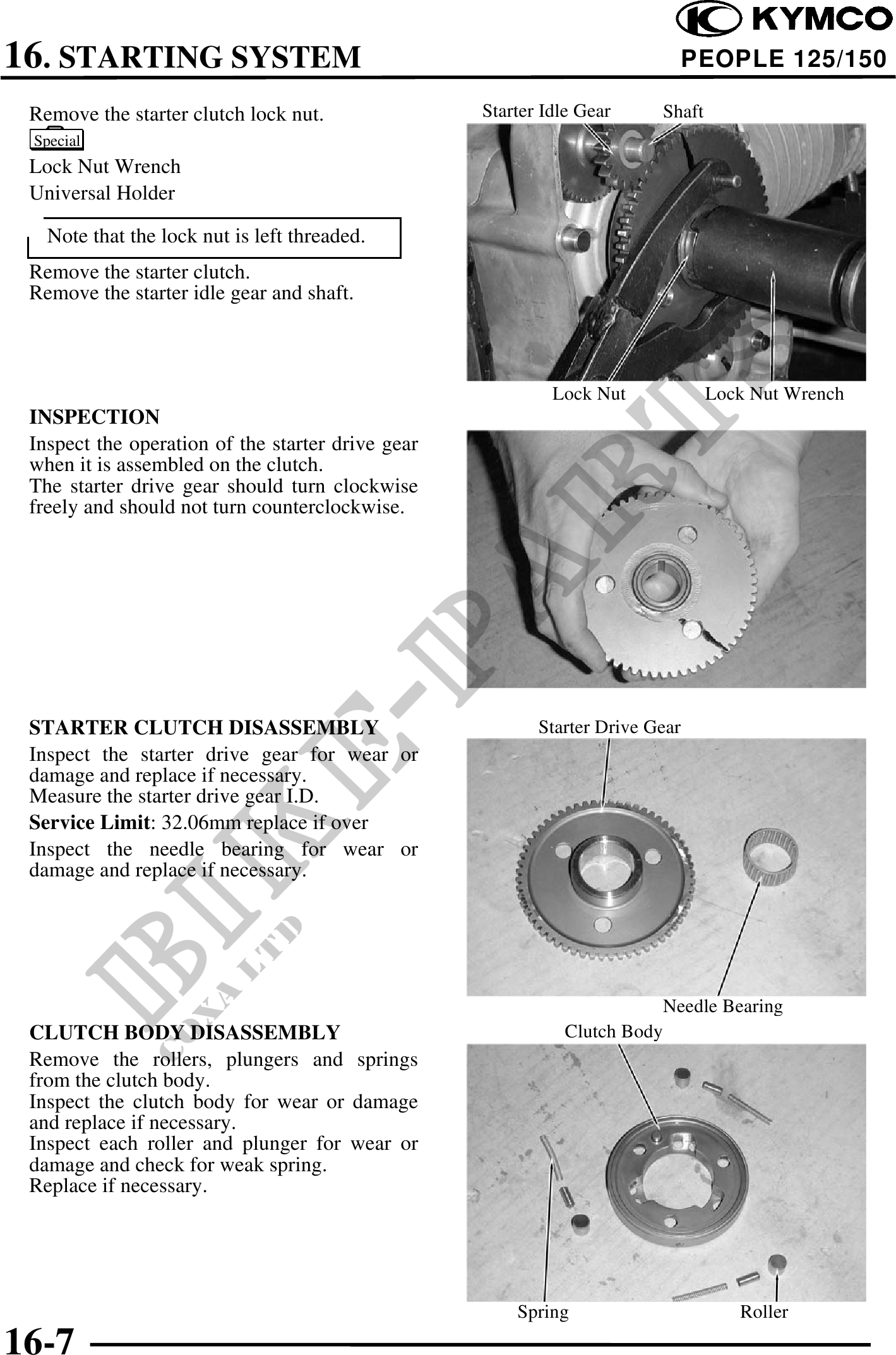

          16. STARTING SYSTEM                                                            PEOPLE 125/150

 Remove the starter clutch lock nut.               Starter Idle Gear       Shaft
 Special
 Lock Nut Wrench
 Universal Holder

   Note that the lock nut is left threaded.
 Remove the starter clutch.
 Remove the starter idle gear and shaft.



                                                            Lock Nut               Lock Nut Wrench
 INSPECTION
 Inspect the operation of the starter drive gear
 when it is assembled on the clutch.
 The starter drive gear should turn clockwise
 freely and should not turn counterclockwise.




 STARTER CLUTCH DISASSEMBLY                               Starter Drive Gear
 Inspect the starter drive gear for wear or
 damage and replace if necessary.
 Measure the starter drive gear I.D.
 Service Limit: 32.06mm replace if over
 Inspect the needle bearing for wear or
 damage and replace if necessary.




                                                                           Needle Bearing
 CLUTCH BODY DISASSEMBLY                                     Clutch Body
 Remove the rollers, plungers and springs
 from the clutch body.
 Inspect the clutch body for wear or damage
 and replace if necessary.
 Inspect each roller and plunger for wear or
 damage and check for weak spring.
 Replace if necessary.




                                                       Spring                         Roller
16-7
