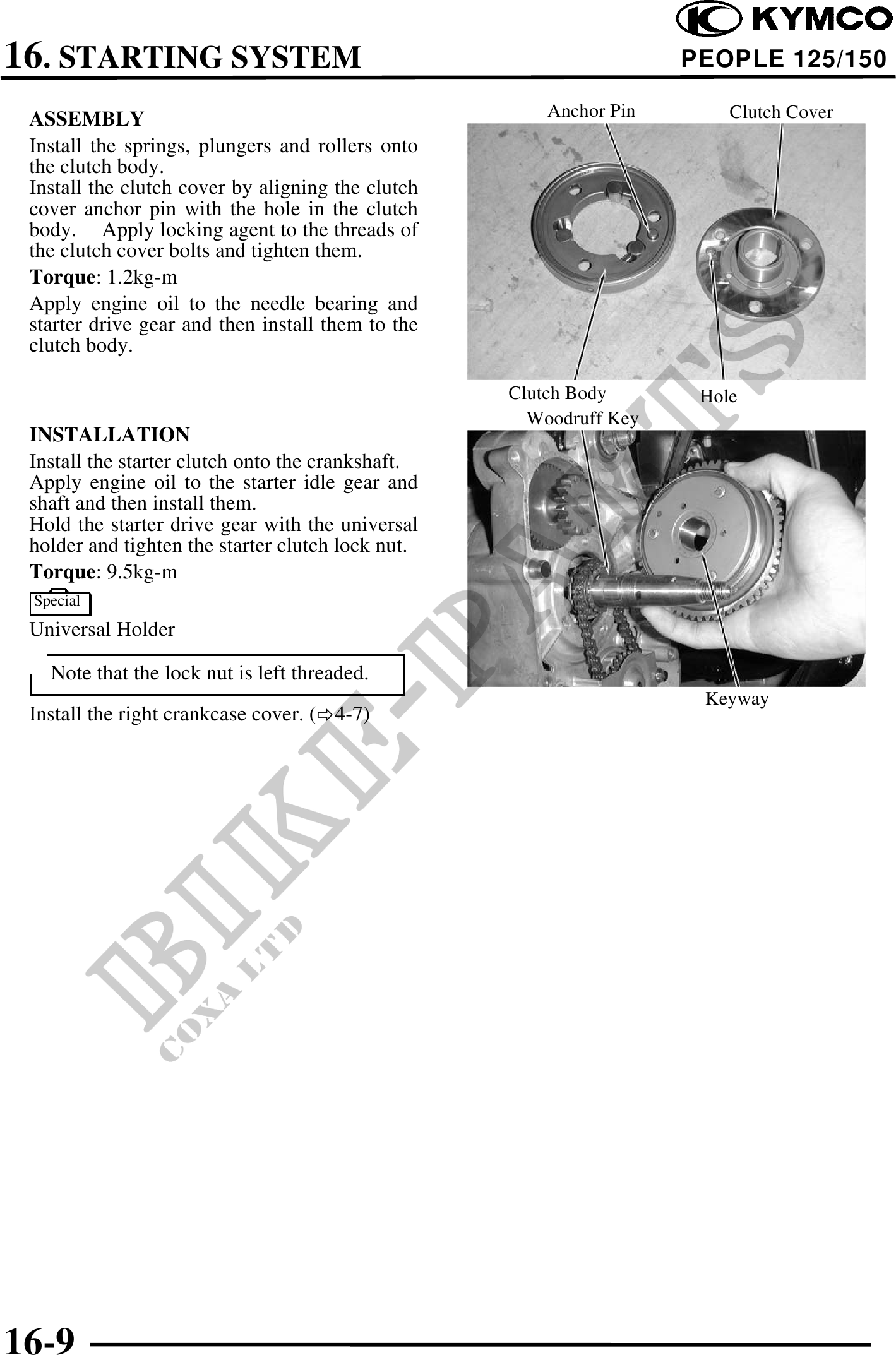

          16. STARTING SYSTEM                                                 PEOPLE 125/150

 ASSEMBLY                                              Anchor Pin       Clutch Cover
 Install the springs, plungers and rollers onto
 the clutch body.
 Install the clutch cover by aligning the clutch
 cover anchor pin with the hole in the clutch
 body. Apply locking agent to the threads of
 the clutch cover bolts and tighten them.
 Torque: 1.2kg-m
 Apply engine oil to the needle bearing and
 starter drive gear and then install them to the
 clutch body.

                                                   Clutch Body       Hole
                                                     Woodruff Key
 INSTALLATION
 Install the starter clutch onto the crankshaft.
 Apply engine oil to the starter idle gear and
 shaft and then install them.
 Hold the starter drive gear with the universal
 holder and tighten the starter clutch lock nut.
 Torque: 9.5kg-m
 Special
 Universal Holder

   Note that the lock nut is left threaded.
                                                                     Keyway
 Install the right crankcase cover. ( 4-7)




16-9
