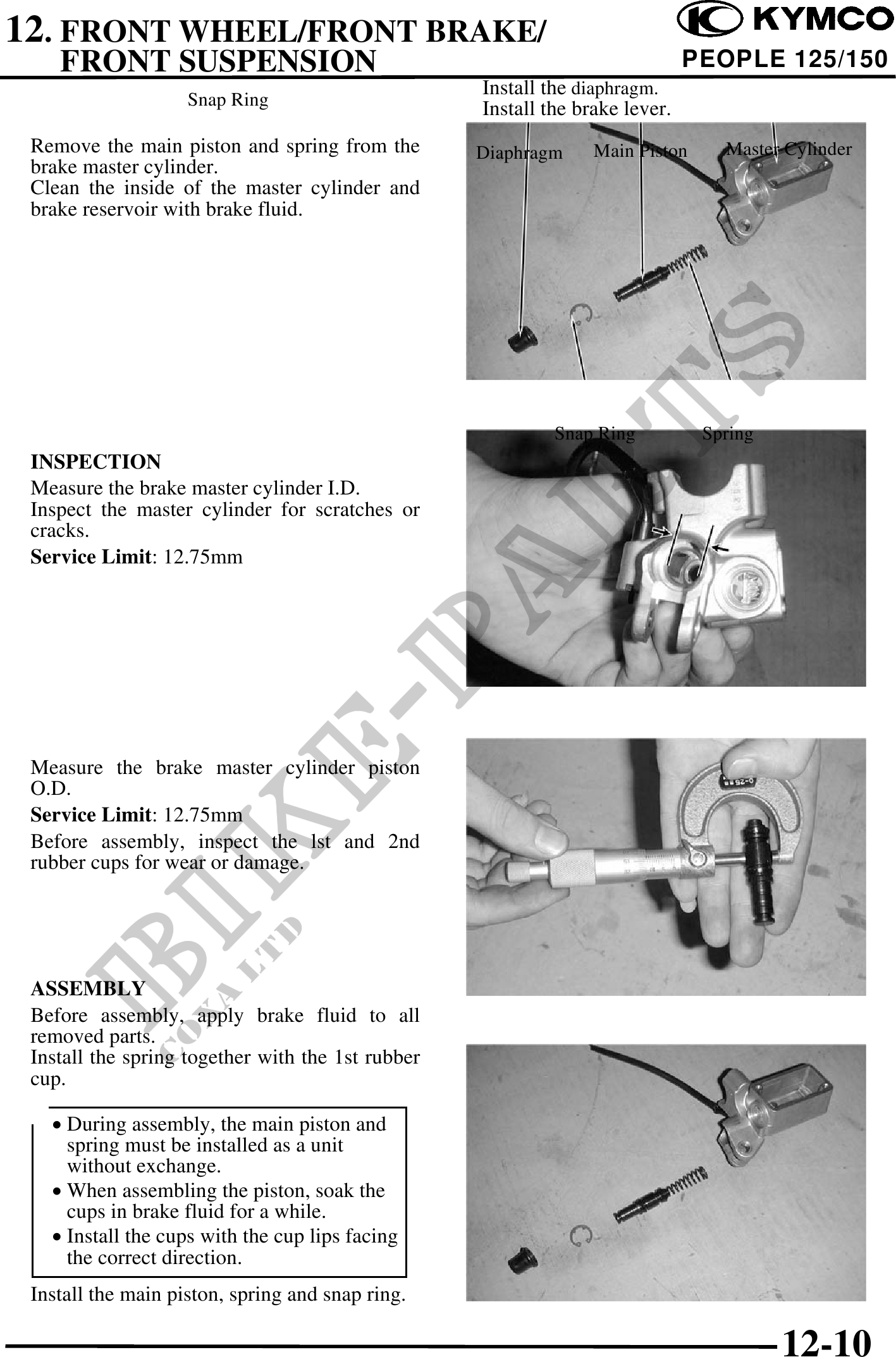

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                          PEOPLE 125/150
                                                   Install the diaphragm.
                    Snap Ring                      Install the brake lever.
 Remove the main piston and spring from the        Diaphragm     Main Piston     Master Cylinder
 brake master cylinder.
 Clean the inside of the master cylinder and
 brake reservoir with brake fluid.




                                                            Snap Ring          Spring
 INSPECTION
 Measure the brake master cylinder I.D.
 Inspect the master cylinder for scratches or
 cracks.
 Service Limit: 12.75mm




 Measure the brake master cylinder piston
 O.D.
 Service Limit: 12.75mm
 Before assembly, inspect the lst and 2nd
 rubber cups for wear or damage.




 ASSEMBLY
 Before assembly, apply brake fluid to all
 removed parts.
 Install the spring together with the 1st rubber
 cup.

   · During assembly, the main piston and
     spring must be installed as a unit
     without exchange.
   · When assembling the piston, soak the
     cups in brake fluid for a while.
   · Install the cups with the cup lips facing
     the correct direction.
 Install the main piston, spring and snap ring.

                                                                                        12-10
