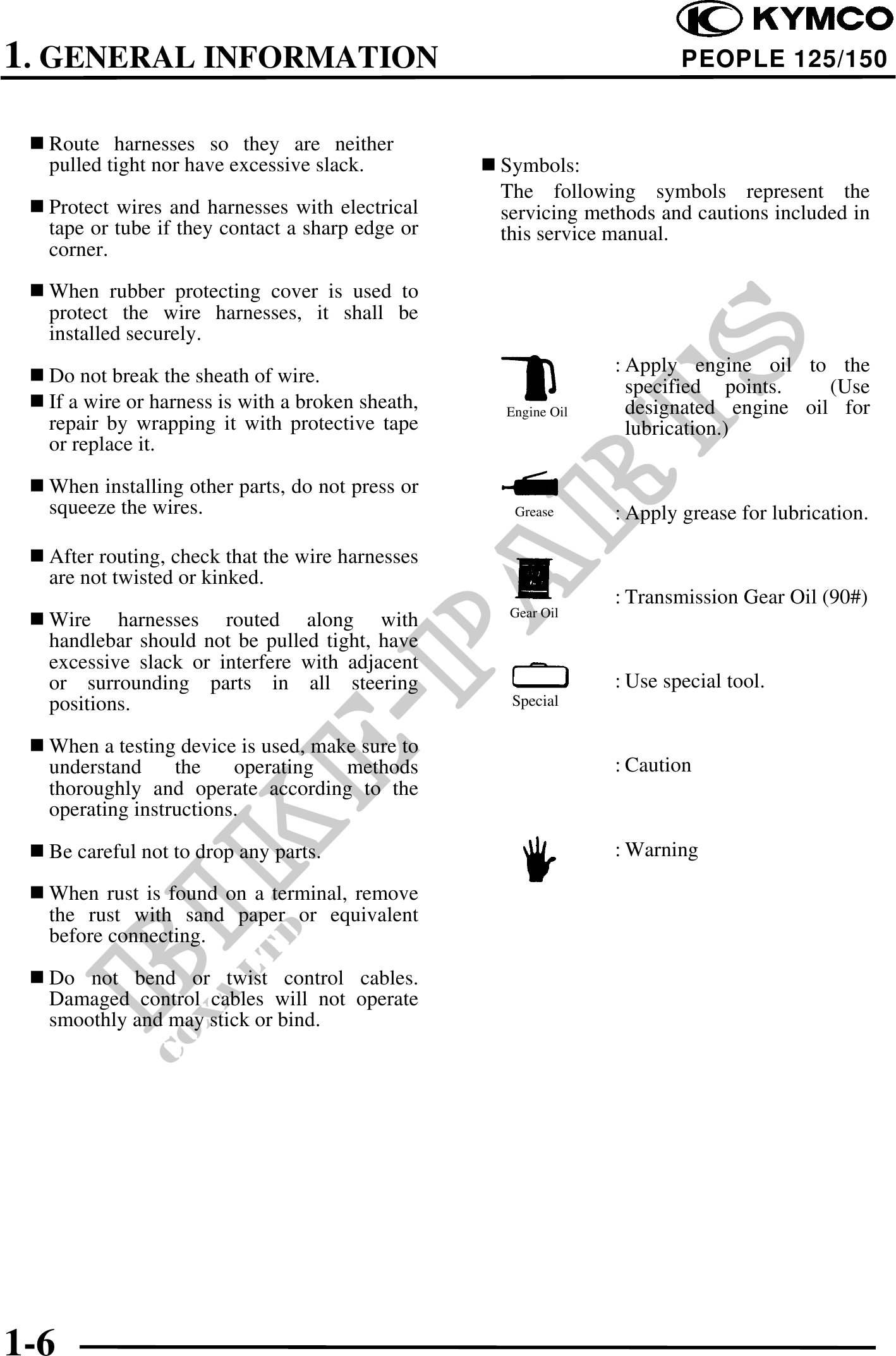

1. GENERAL INFORMATION PEOPLE 125/150
Route harnesses so they are neither
pulled tight nor have excessive slack. Symbols:
The following symbols represent the
Protect wires and harnesses with electrical servicing methods and cautions included in
tape or tube if they contact a sharp edge or this service manual.
corner.
When rubber protecting cover is used to
protect the wire harnesses, it shall be
installed securely.
Do not break the sheath of wire. : Apply engine oil to the
specified points. (Use
If a wire or harness is with a broken sheath, Engine Oil designated engine oil for
repair by wrapping it with protective tape lubrication.)
or replace it.
When installing other parts, do not press or
squeeze the wires. Grease : Apply grease for lubrication.
After routing, check that the wire harnesses
are not twisted or kinked.
: Transmission Gear Oil (90#)
Gear Oil
Wire harnesses routed along with
handlebar should not be pulled tight, have
excessive slack or interfere with adjacent
or surrounding parts in all steering : Use special tool.
positions. Special
When a testing device is used, make sure to
understand the operating methods : Caution
thoroughly and operate according to the
operating instructions.
Be careful not to drop any parts. : Warning
When rust is found on a terminal, remove
the rust with sand paper or equivalent
before connecting.
Do not bend or twist control cables.
Damaged control cables will not operate
smoothly and may stick or bind.
1-6
