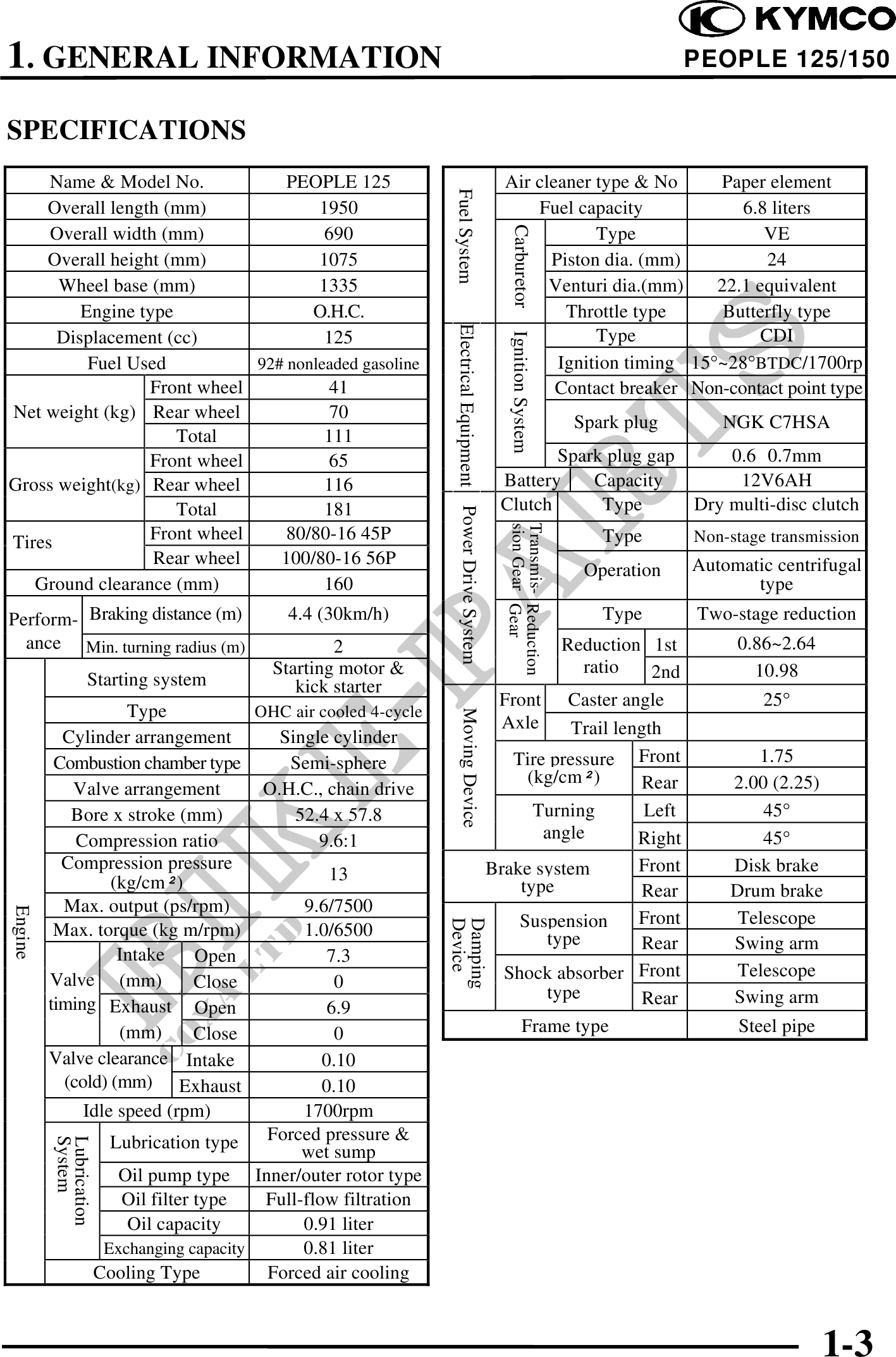

          1. GENERAL INFORMATION                                                                                                                        PEOPLE 125/150

SPECIFICATIONS
     Name & Model No.            PEOPLE 125                                                                Air cleaner type & No     Paper element




                                                               Fuel System
    Overall length (mm)              1950                                                                      Fuel capacity            6.8 liters




                                                                                                             Carburetor
     Overall width (mm)               690                                                                              Type                VE
    Overall height (mm)              1075                                                                        Piston dia. (mm)          24
      Wheel base (mm)                1335                                                                        Venturi dia.(mm)    22.1 equivalent
         Engine type                O.H.C.                                                                         Throttle type      Butterfly type




                                                               Electrical Equipment Power Drive System
      Displacement (cc)               125                                                                              Type               CDI




                                                                                                             Ignition System
          Fuel Used          92# nonleaded gasoline                                                               Ignition timing 15°~28°BTDC/1700rp
                 Front wheel           41                                                                         Contact breaker Non-contact point type
Net weight (kg) Rear wheel             70
                                                                                                                                 Spark plug      NGK C7HSA
                     Total            111
                 Front wheel           65                                                                        Spark plug gap                   0.6 0.7mm
Gross weight(kg) Rear wheel           116                                                                 Battery    Capacity                      12V6AH
                     Total            181                                                                 Clutch      Type                    Dry multi-disc clutch
                                                                                                           sion Gear Gear
                                                                                                           Transmis- Reduction
Tires            Front wheel     80/80-16 45P                                                                                       Type      Non-stage transmission
                  Rear wheel    100/80-16 56P                                                                                                 Automatic centrifugal
                                                                                                                                  Operation
   Ground clearance (mm)              160                                                                                                            type
Perform- Braking distance (m)            4.4 (30km/h)                                                                               Type      Two-stage reduction
  ance Min. turning radius (m)                2                                                                   Reduction 1st                    0.86~2.64
                                      Starting motor &                                                               ratio     2nd                   10.98
                   Starting system       kick starter
                                                                                                          Front Caster angle                           25°
                    Type             OHC air cooled 4-cycle
                                                                    Moving Device




                                                                                                          Axle      Trail length
           Cylinder arrangement         Single cylinder
          Combustion chamber type        Semi-sphere                                                        Tire pressure Front                      1.75
                                                                                                              (kg/cm)        Rear                 2.00 (2.25)
            Valve arrangement         O.H.C., chain drive
            Bore x stroke (mm)            52.4 x 57.8                                                          Turning        Left                    45°
             Compression ratio               9.6:1                                                              angle        Right                    45°
           Compression pressure                                                                          Brake system        Front                Disk brake
                  (kg/cm)                      13
                                                                                                             type            Rear                 Drum brake
           Max. output (ps/rpm)            9.6/7500
Engine




                                                                                                             Suspension      Front                 Telescope
                                                              Device
                                                              Damping




          Max. torque (kg m/rpm)           1.0/6500                                                             type         Rear                 Swing arm
                   Intake      Open           7.3
         Valve (mm)            Close            0                                                          Shock absorber Front                    Telescope
                                                                                                                type         Rear                 Swing arm
         timing Exhaust Open                  6.9
                   (mm)        Close            0                                                            Frame type                            Steel pipe
         Valve clearance Intake               0.10
           (cold) (mm) Exhaust                0.10
              Idle speed (rpm)             1700rpm
                  Lubrication type Forced pressure &
         System
         Lubrication




                                           wet sump
                   Oil pump type Inner/outer rotor type
                    Oil filter type   Full-flow filtration
                    Oil capacity           0.91 liter
                 Exchanging capacity       0.81 liter
               Cooling Type           Forced air cooling



                                                                                                                                                                1-3
