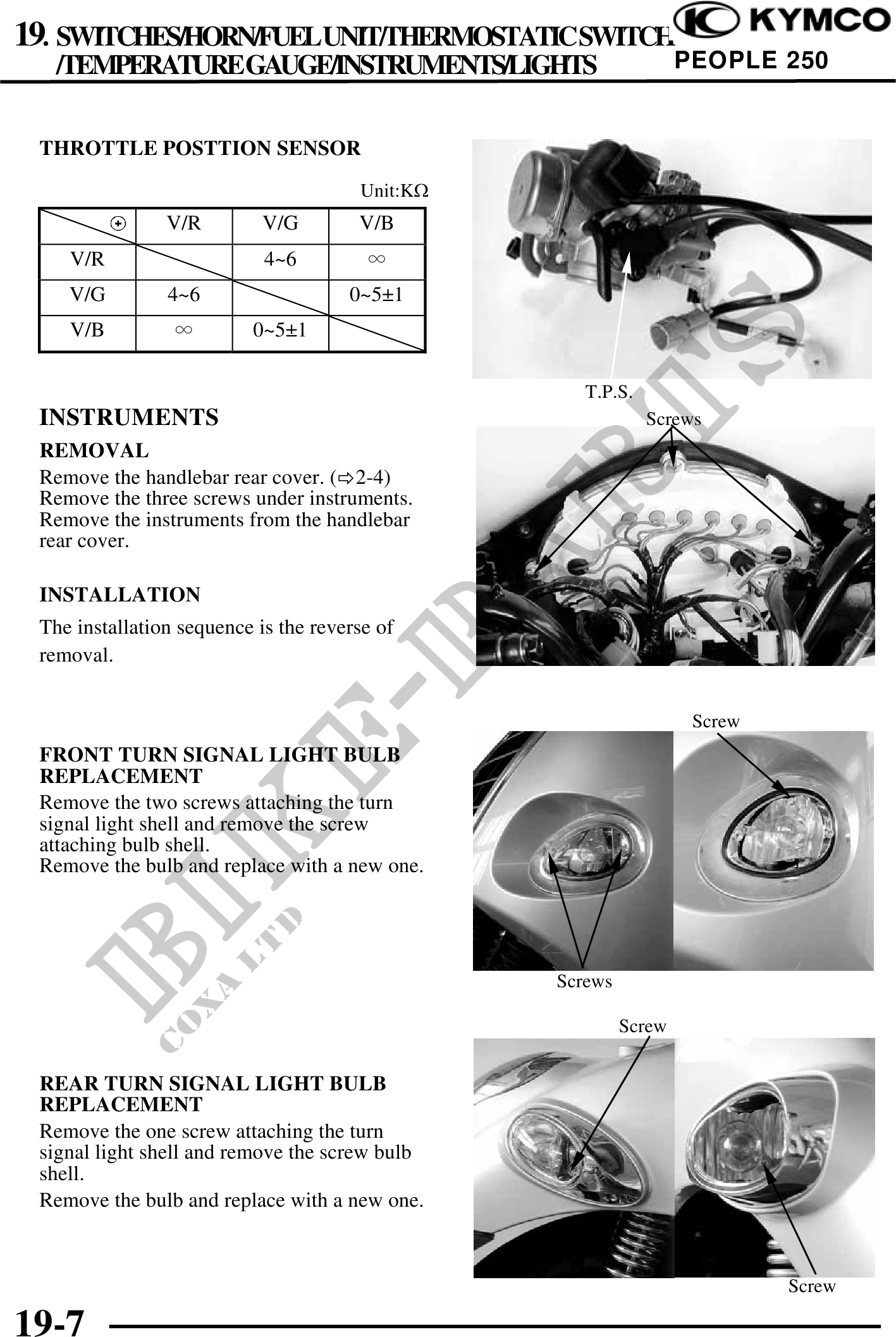

          19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH
   /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS                          PEOPLE 250


 THROTTLE POSTTION SENSOR

                                       Unit:K
                V/R         V/G        V/B
    V/R                     4~6
    V/G         4~6                   0~51
    V/B                   0~51

                                                   T.P.S.
 INSTRUMENTS                                                Screws
 REMOVAL
 Remove the handlebar rear cover. ( 2-4)
 Remove the three screws under instruments.
 Remove the instruments from the handlebar
 rear cover.

 INSTALLATION
 The installation sequence is the reverse of
 removal.


                                                                  Screw
 FRONT TURN SIGNAL LIGHT BULB
 REPLACEMENT
 Remove the two screws attaching the turn
 signal light shell and remove the screw
 attaching bulb shell.
 Remove the bulb and replace with a new one.




                                                Screws

                                                         Screw


 REAR TURN SIGNAL LIGHT BULB
 REPLACEMENT
 Remove the one screw attaching the turn
 signal light shell and remove the screw bulb
 shell.
 Remove the bulb and replace with a new one.



                                                                          Screw

19-7
