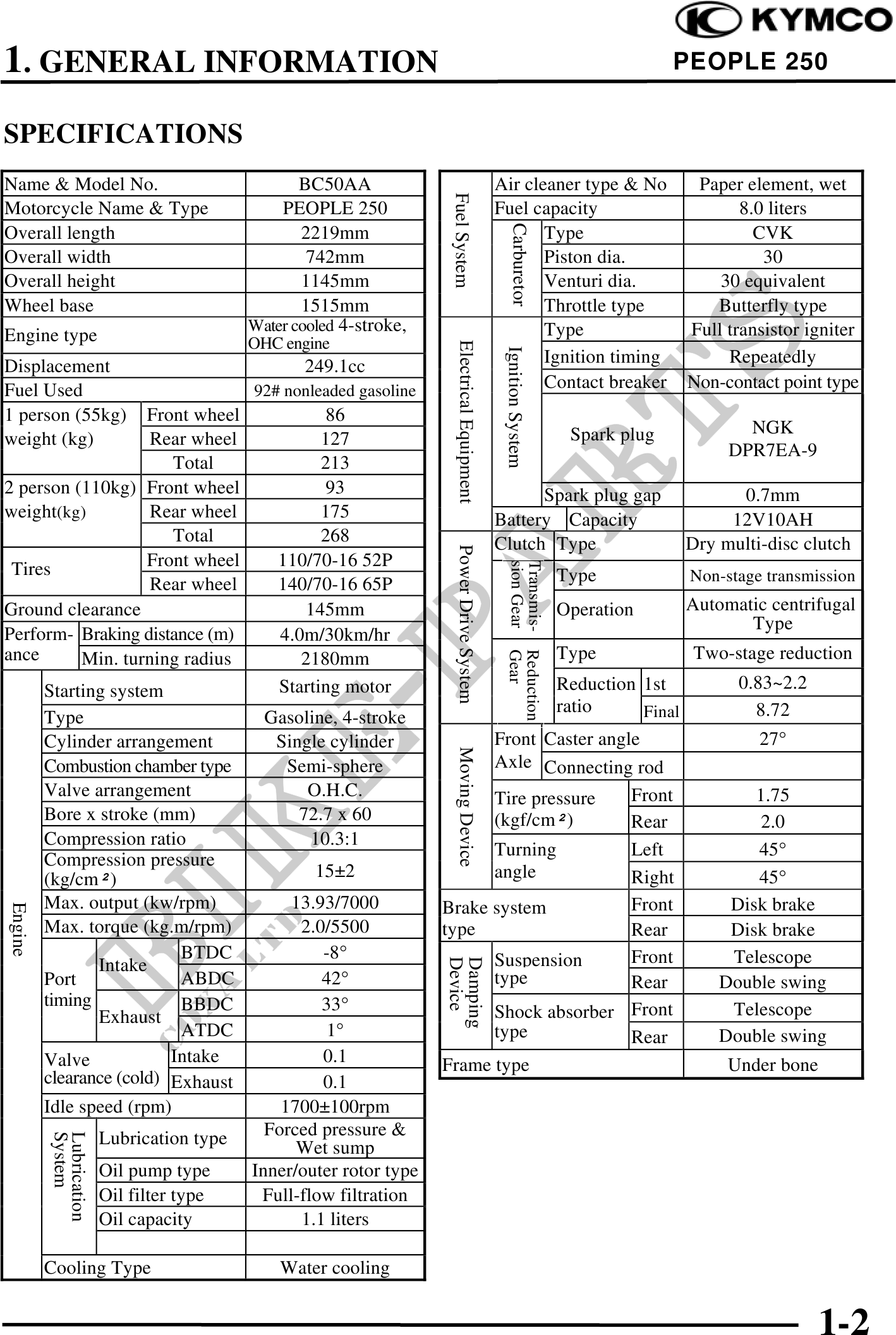

          1. GENERAL INFORMATION                                                                                                        PEOPLE 250

SPECIFICATIONS
Name & Model No.                                 BC50AA                                      Air cleaner type & No                 Paper element, wet




                                                                    Fuel System
Motorcycle Name & Type                        PEOPLE 250                                     Fuel capacity                               8.0 liters




                                                                                                 Carburetor
Overall length                                   2219mm                                             Type                                   CVK
Overall width                                     742mm                                             Piston dia.                             30
Overall height                                   1145mm                                             Venturi dia.                      30 equivalent
Wheel base                                       1515mm                                             Throttle type                    Butterfly type
                                          Water cooled 4-stroke,                                    Type                          Full transistor igniter
Engine type                               OHC engine




                                                                      Electrical Equipment

                                                                                              Ignition System
Displacement                                     249.1cc                                            Ignition timing                    Repeatedly
Fuel Used                                 92# nonleaded gasoline                                    Contact breaker               Non-contact point type
1 person (55kg)   Front wheel                        86
                                                                                                                 Spark plug              NGK
weight (kg)       Rear wheel                        127
                                                                                                                                       DPR7EA-9
                     Total                          213
2 person (110kg) Front wheel                        93                                             Spark plug gap                       0.7mm
weight(kg)         Rear wheel                       175                                      Battery Capacity                          12V10AH
                     Total                          268                                      Clutch Type                          Dry multi-disc clutch
                                                                      Power Drive System


                  Front wheel                 110/70-16 52P
                                                                                                sion Gear
                                                                                                Transmis-
 Tires                                                                                                          Type              Non-stage transmission
                   Rear wheel                 140/70-16 65P
Ground clearance                                  145mm                                                         Operation         Automatic centrifugal
                                                                                                                                         Type
Perform- Braking distance (m)                 4.0m/30km/hr
ance                                                                                                            Type              Two-stage reduction
                                                                                              Gear
                                                                                              Reduction




          Min. turning radius                    2180mm
         Starting system                      Starting motor                                                    Reduction 1st           0.83~2.2
                                                                                                                ratio     Final           8.72
         Type                               Gasoline, 4-stroke
         Cylinder arrangement                Single cylinder             Front Caster angle                                                27°
                                                                      Moving Device




         Combustion chamber type              Semi-sphere                Axle Connecting rod
         Valve arrangement                       O.H.C.                  Tire pressure    Front                                           1.75
         Bore x stroke (mm)                     72.7 x 60                (kgf/cm)         Rear                                             2.0
         Compression ratio                       10.3:1
                                                                         Turning          Left                                            45°
         Compression pressure
         (kg/cm)                                   152                   angle            Right                                           45°
         Max. output (kw/rpm)                  13.93/7000          Brake system           Front                                        Disk brake
Engine




         Max. torque (kg.m/rpm)                 2.0/5500           type                   Rear                                         Disk brake
                           BTDC                    -8°                   Suspension       Front                                        Telescope
                                                                   Device
                                                                   Damping




                Intake
         Port              ABDC                    42°                   type             Rear                                        Double swing
         timing            BBDC                    33°
                Exhaust                                                  Shock absorber Front                                          Telescope
                           ATDC                    1°                    type             Rear                                        Double swing
         Valve            Intake                   0.1             Frame type                                                          Under bone
         clearance (cold) Exhaust                  0.1
         Idle speed (rpm)                     1700100rpm
                       Lubrication type     Forced pressure &
         System
         Lubrication




                                                Wet sump
                       Oil pump type      Inner/outer rotor type
                       Oil filter type     Full-flow filtration
                       Oil capacity             1.1 liters

         Cooling Type                         Water cooling


                                                                                                                                                    1-2
