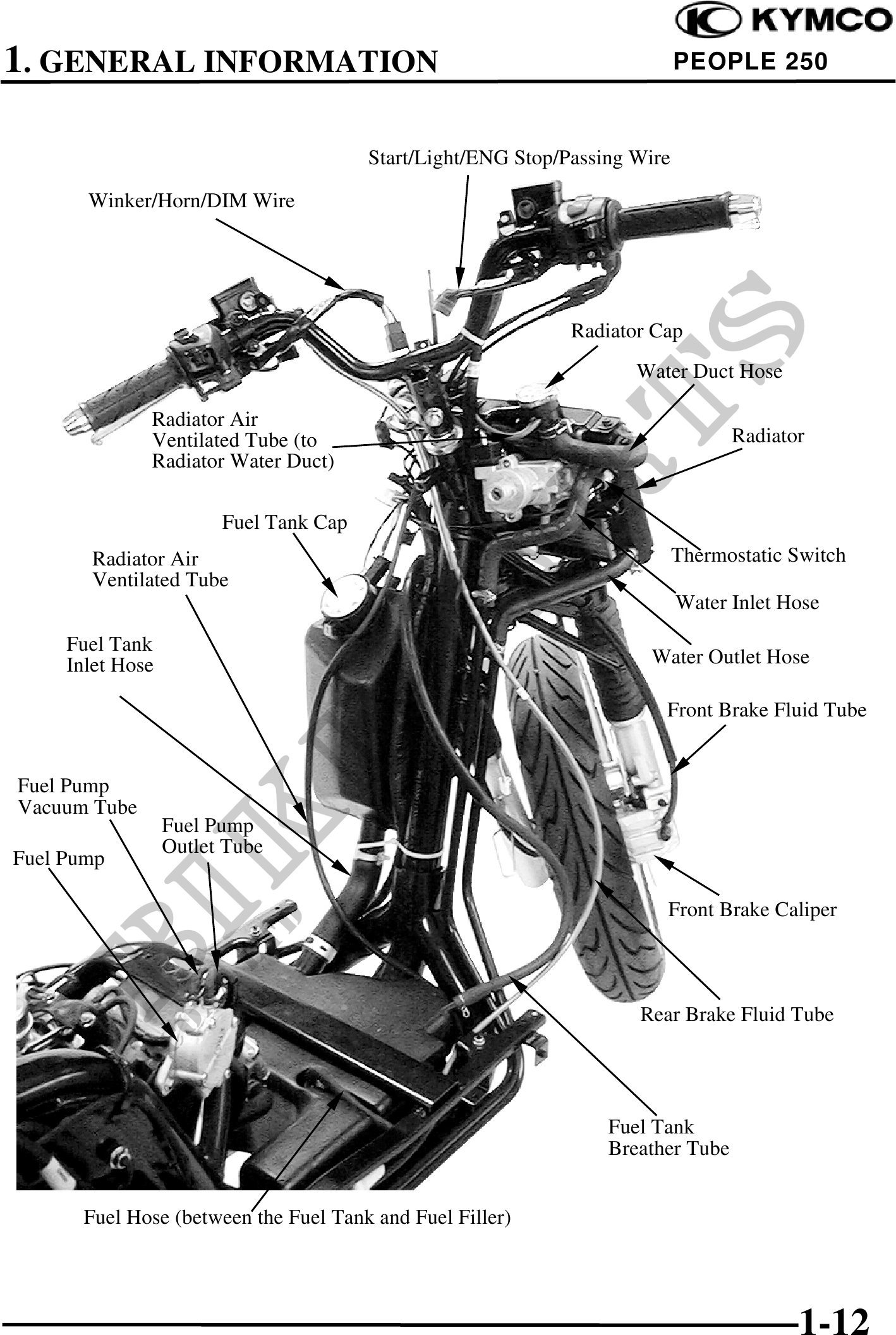

          1. GENERAL INFORMATION                                                      PEOPLE 250


                                        Start/Light/ENG Stop/Passing Wire

       Winker/Horn/DIM Wire




                                                              Radiator Cap
                                                                     Water Duct Hose

              Radiator Air
              Ventilated Tube (to                                                 Radiator
              Radiator Water Duct)

                        Fuel Tank Cap
       Radiator Air                                                         Thermostatic Switch
       Ventilated Tube
                                                                            Water Inlet Hose
     Fuel Tank
     Inlet Hose                                                       Water Outlet Hose

                                                                        Front Brake Fluid Tube


Fuel Pump
Vacuum Tube
                  Fuel Pump
                  Outlet Tube
Fuel Pump

                                                                        Front Brake Caliper



                                                                     Rear Brake Fluid Tube




                                                                  Fuel Tank
                                                                  Breather Tube


      Fuel Hose (between the Fuel Tank and Fuel Filler)
