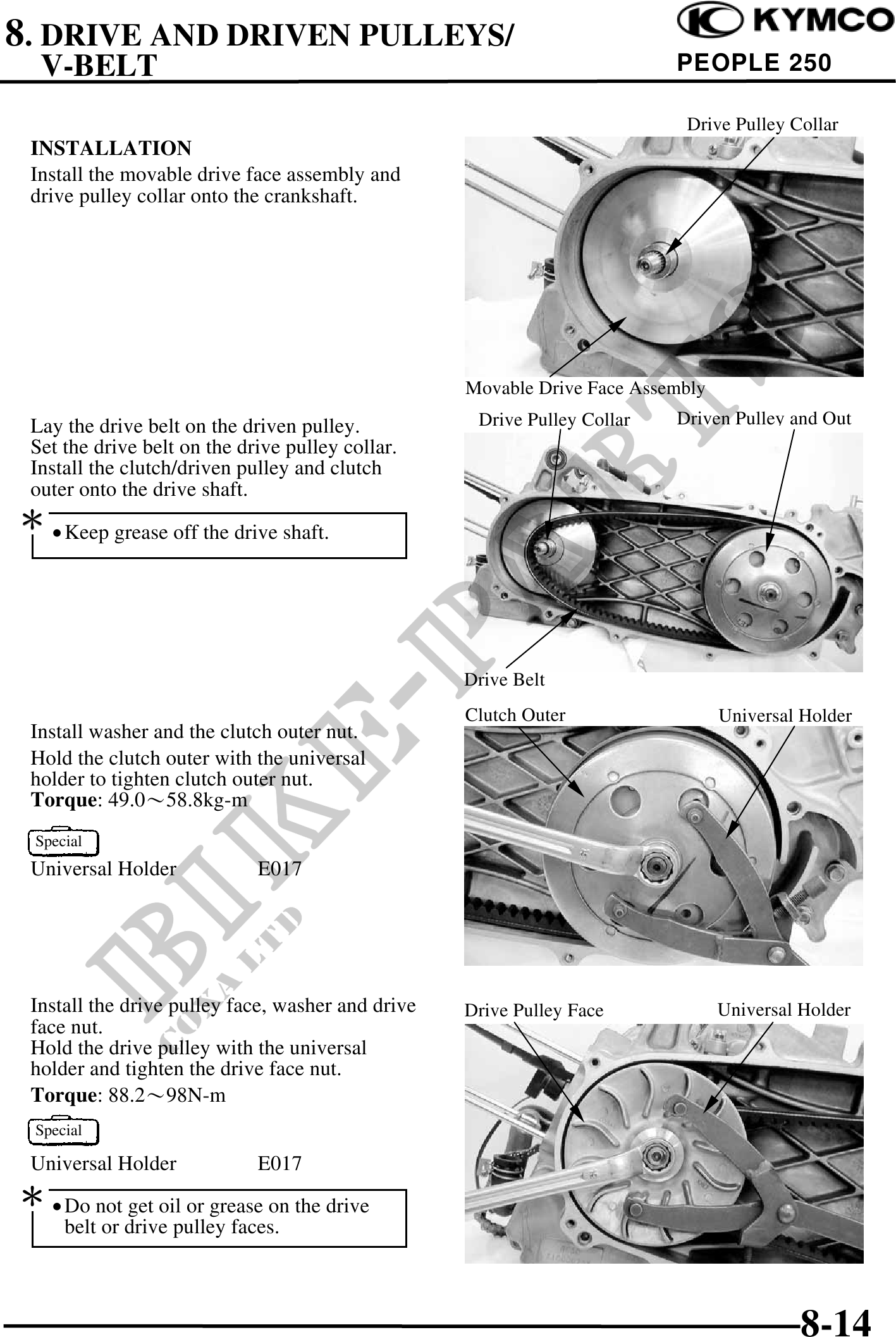

          8. DRIVE AND DRIVEN PULLEYS/
  V-BELT                                                                  PEOPLE 250

                                                                           Drive Pulley Collar
 INSTALLATION
 Install the movable drive face assembly and
 drive pulley collar onto the crankshaft.




                                                   Movable Drive Face Assembly
 Lay the drive belt on the driven pulley.           Drive Pulley Collar   Driven Pulley and Out
 Set the drive belt on the drive pulley collar.
 Install the clutch/driven pulley and clutch
 outer onto the drive shaft.
 · Keep grease off the drive shaft.



                                                   Drive Belt
                                                   Clutch Outer                  Universal Holder
 Install washer and the clutch outer nut.
 Hold the clutch outer with the universal
 holder to tighten clutch outer nut.
 Torque: 49.058.8kg-m
  Special
 Universal Holder             E017




 Install the drive pulley face, washer and drive   Drive Pulley Face             Universal Holder
 face nut.
 Hold the drive pulley with the universal
 holder and tighten the drive face nut.
 Torque: 88.298N-m
  Special

 Universal Holder             E017
 · Do not get oil or grease on the drive
      belt or drive pulley faces.



                                                                                           8-14
