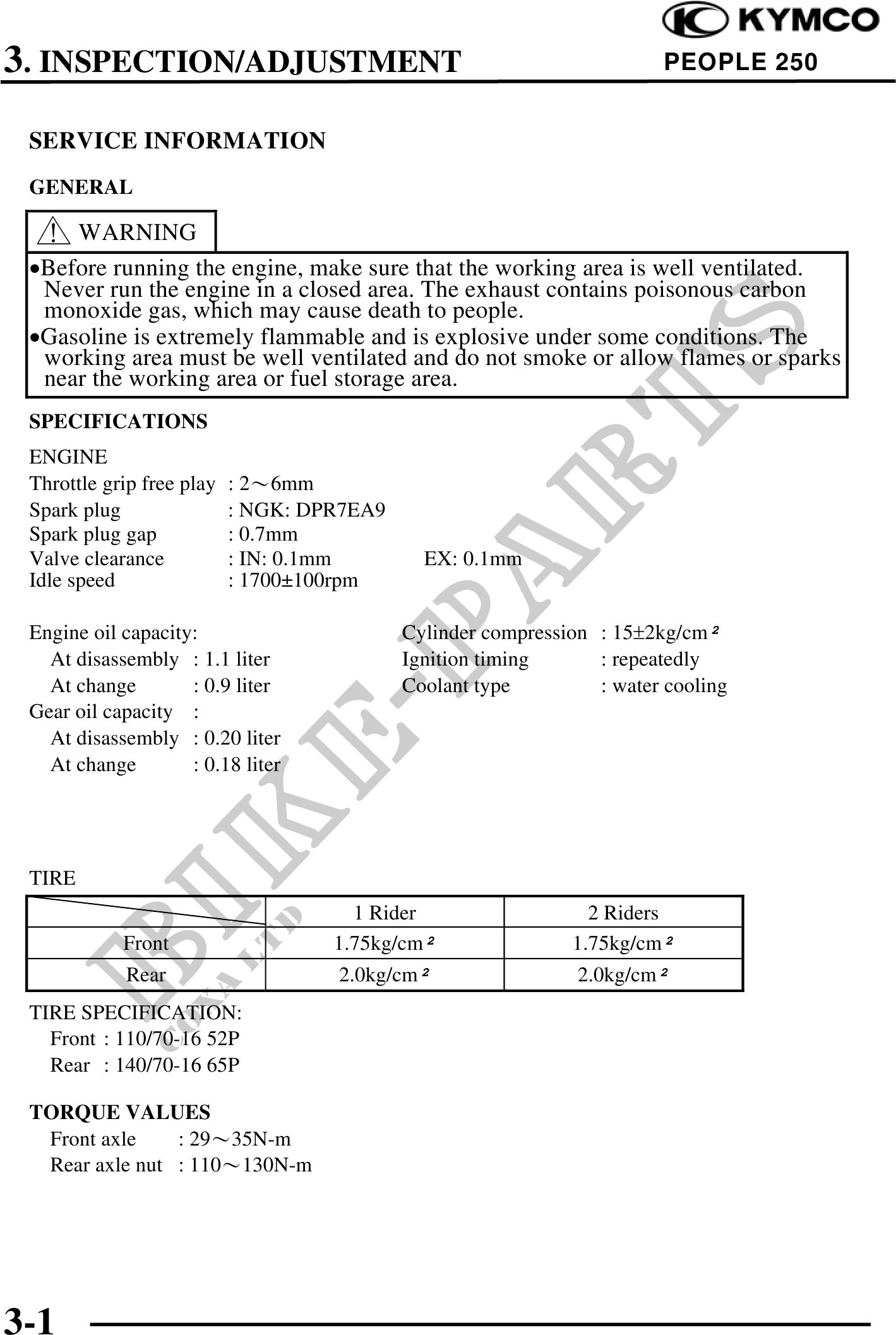

          3. INSPECTION/ADJUSTMENT                                                PEOPLE 250


 SERVICE INFORMATION
 GENERAL

   WARNING
 ·Before running the engine, make sure that the working area is well ventilated.
  Never run the engine in a closed area. The exhaust contains poisonous carbon
  monoxide gas, which may cause death to people.
 ·Gasoline is extremely flammable and is explosive under some conditions. The
  working area must be well ventilated and do not smoke or allow flames or sparks
  near the working area or fuel storage area.
 SPECIFICATIONS
 ENGINE
 Throttle grip free play   : 26mm
 Spark plug                : NGK: DPR7EA9
 Spark plug gap            : 0.7mm
 Valve clearance           : IN: 0.1mm        EX: 0.1mm
 Idle speed                : 1700100rpm

 Engine oil capacity:                       Cylinder compression : 152kg/cm
   At disassembly : 1.1 liter               Ignition timing      : repeatedly
   At change        : 0.9 liter             Coolant type         : water cooling
 Gear oil capacity :
   At disassembly : 0.20 liter
   At change        : 0.18 liter




 TIRE
                                       1 Rider                  2 Riders
            Front                   1.75kg/cm                 1.75kg/cm
            Rear                     2.0kg/cm                 2.0kg/cm
 TIRE SPECIFICATION:
   Front : 110/70-16 52P
   Rear : 140/70-16 65P

 TORQUE VALUES
  Front axle    : 2935N-m
  Rear axle nut : 110130N-m




3-1
